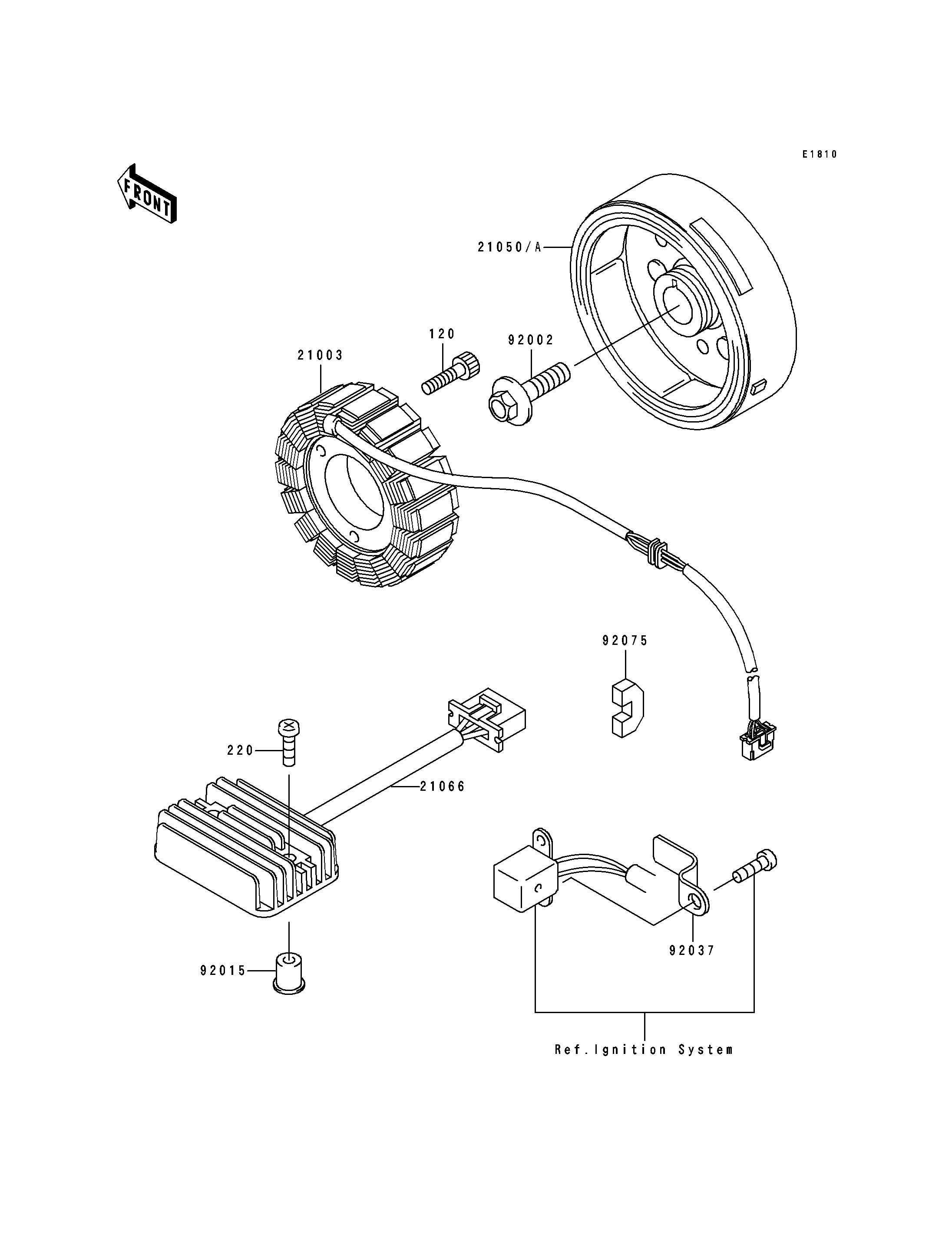

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1154 1
FLYWHEEL 21050 21050-1129 1
REGULATOR-VOLTAGE 21066 21066-1030 1
BOLT,10X28 92002 92002-1688 1
NUT 92015 92015-1700 2
CLAMP 92037 92037-1919 1
DAMPER 92075 92075-1811 1
BOLT-SOCKET,6X25 120 120P0625 3
SCREW-PAN-CROS,6X30 220 220B0630 2
