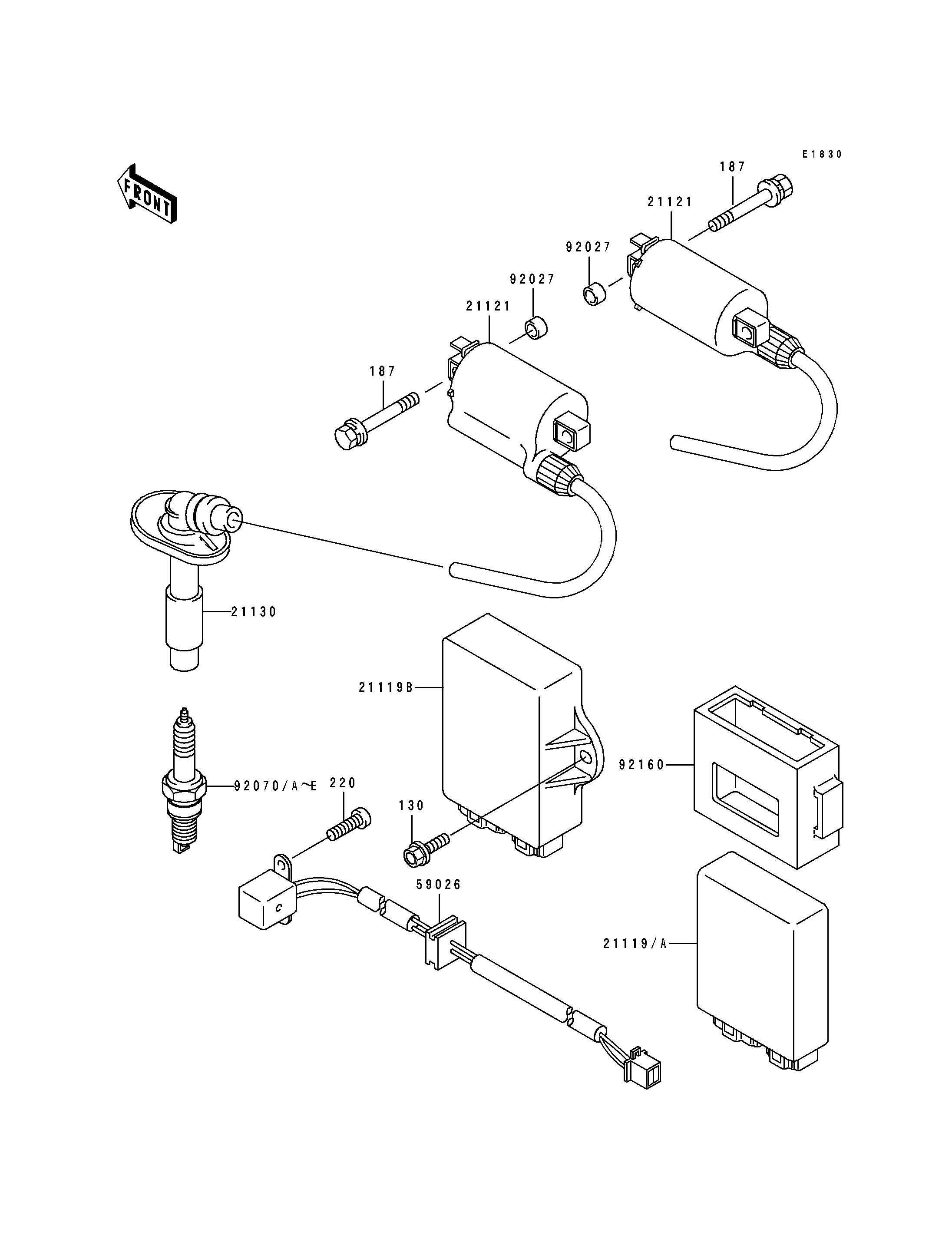

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
IGNITER 21119B 21119-1403 1
COIL-IGNITION 21121 21121-1163 2
CAP-SPARK PLUG 21130 21130-1056 2
COIL-PULSING 59026 59026-1086 1
COLLAR,6.8X10X6 92027 92027-103 4
PLUG-SPARK,CR7HSA(NGK) 92070A 92070-1154 2 (OPTION)
PLUG-SPARK,CR8HSA(NGK) 92070B 92070-1155 2
PLUG-SPARK,U22FSR-U(ND) 92070C 2 (OPTION)
PLUG-SPARK,U24FSR-U(ND) 92070E 2 (OPTION)
BOLT-FLANGED 130 130H0620 2
BOLT-UPSET-WSP 187 187G0625 4
SCREW-PAN-CROS 220 220B0510 2
