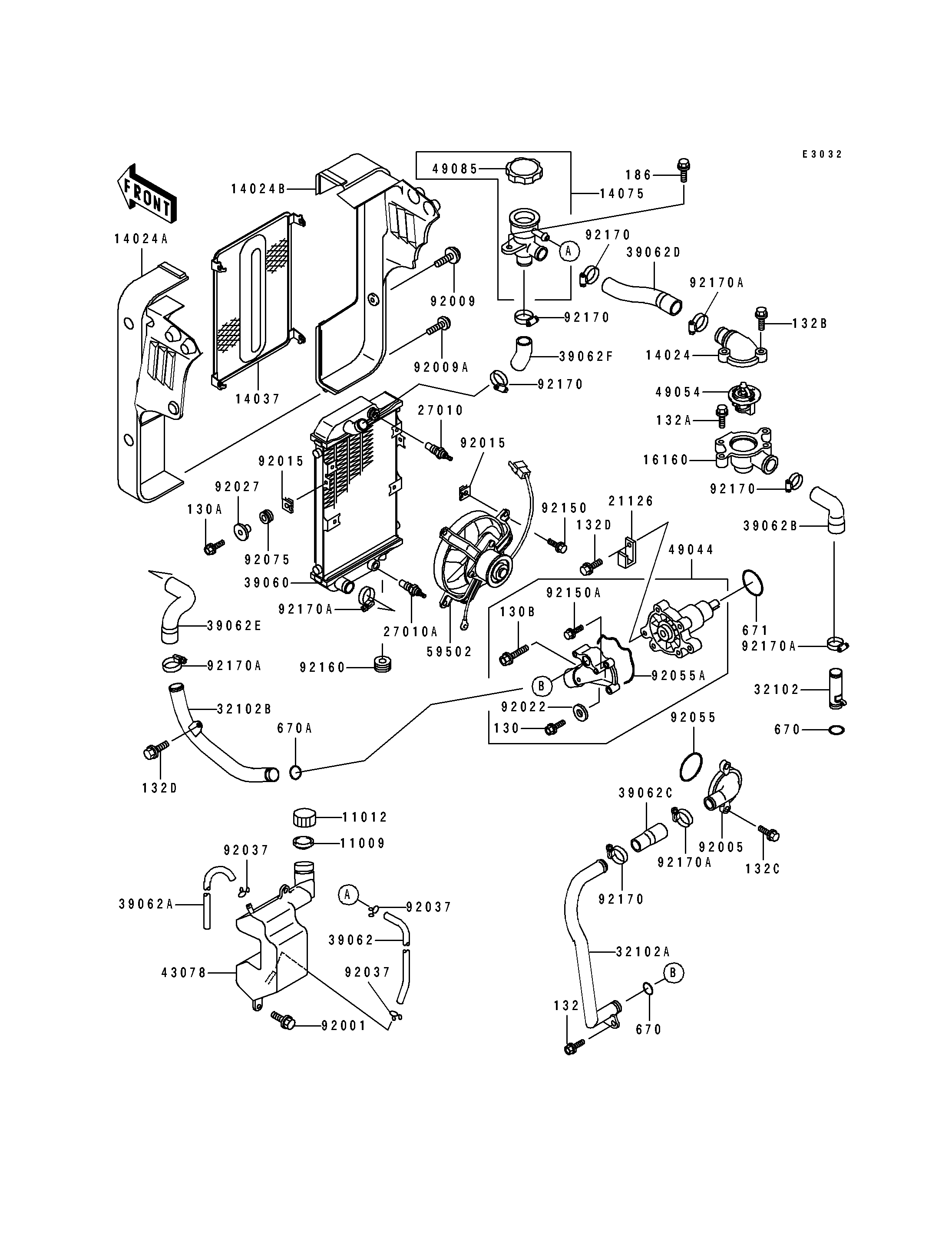

1994 Eliminator 250 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
COVER,THERMOSTAT UPP 14024 14024-1232 1
COVER,RADIATOR,LH 14024A 14024-1755 1
COVER,RADIATOR,RH 14024B 14024-1756 1
SCREEN 14037 14037-1093 1
CAP-ASSY,RADIATOR 14075 14075-1072 1
BODY,THERMOSTAT 16160 16160-1139 1
CLAMP,WIRING HARNESS 21126 21126-008 1
SWITCH 27010 27010-1173 1
SWITCH,THERMOSTAT 27010A 27010-1304 1
PIPE,HEAD-THERMOSTAT 32102 32102-1021 1
PIPE,PUMP-CYLINDER 32102A 32102-1624 1
PIPE,RADIATOR-PUMP 32102B 32102-1625 1
RADIATOR 39060 39060-1086 1
HOSE-COOLING,5.5X10.5X950 39062 39062-1069 1
HOSE-COOLING,5.5X10.5X300 39062A 39062-1110 1
HOSE-COOLING,HEAD-THERMOSTAT 39062B 39062-1170 1
HOSE-COOLING,PUMP-CYLINDER 39062C 39062-1246 1
HOSE-COOLING,THERMOSTAT-CAP 39062D 39062-1247 1
HOSE-COOLING,RADIATOR-PUMP 39062E 39062-1248 1
HOSE-COOLING,CAP-RADIATOR 39062F 39062-1249 1
RESERVOIR 43078 43078-1088 1
PUMP-WATER 49044 49044-1064 1
THERMOSTAT 49054 49054-1058 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
FAN-ASSY 59502 59502-1073 1
BOLT,W/WASHER,6X12 92001 92001-1516 2
FITTING,CYLINDER 92005 92005-1145 1
SCREW,6X10 92009 92009-1402 4
SCREW,TAPPING,5X30 92009A 92009-1488 1
NUT 92015 92015-1487 6
WASHER,6MM 92022 92022-1976 1
COLLAR 92027 92027-1767 2
CLAMP,TUBE 92037 92037-147 3
RING-O 92055 92055-091 1
RING-O 92055A 92055-1432 1
DAMPER 92075 92075-1680 2
BOLT,6X12 92150 92150-1186 4
BOLT 92150A 92150-1562 3
DAMPER 92160 92160-1007 1
CLAMP,COOLING HOSE 92170 92170-1033 5
CLAMP,COOLING HOSE 92170A 92170-1286 5
BOLT-FLANGED,6X10,BLACK 130 130C0610 1
BOLT-FLANGED,6X25 130A 130J0625 2
BOLT-FLANGED,6X35 130B 130J0635 1
BOLT-FLANGED-SMALL 132 132E0612 1
BOLT-FLANGED-SMALL 132A 132G0612 2
BOLT-FLANGED-SMALL 132B 132G0625 2
BOLT-FLANGED-SMALL 132C 132J0616 2
BOLT-FLANGED-SMALL 132D 132J0630 2
BOLT-UPSET-WP 186 186C0614 1
O RING,16MM 670 670B2016 2
O RING,18MM 670A 670B2018 1
O RING 671 671D2535 1
