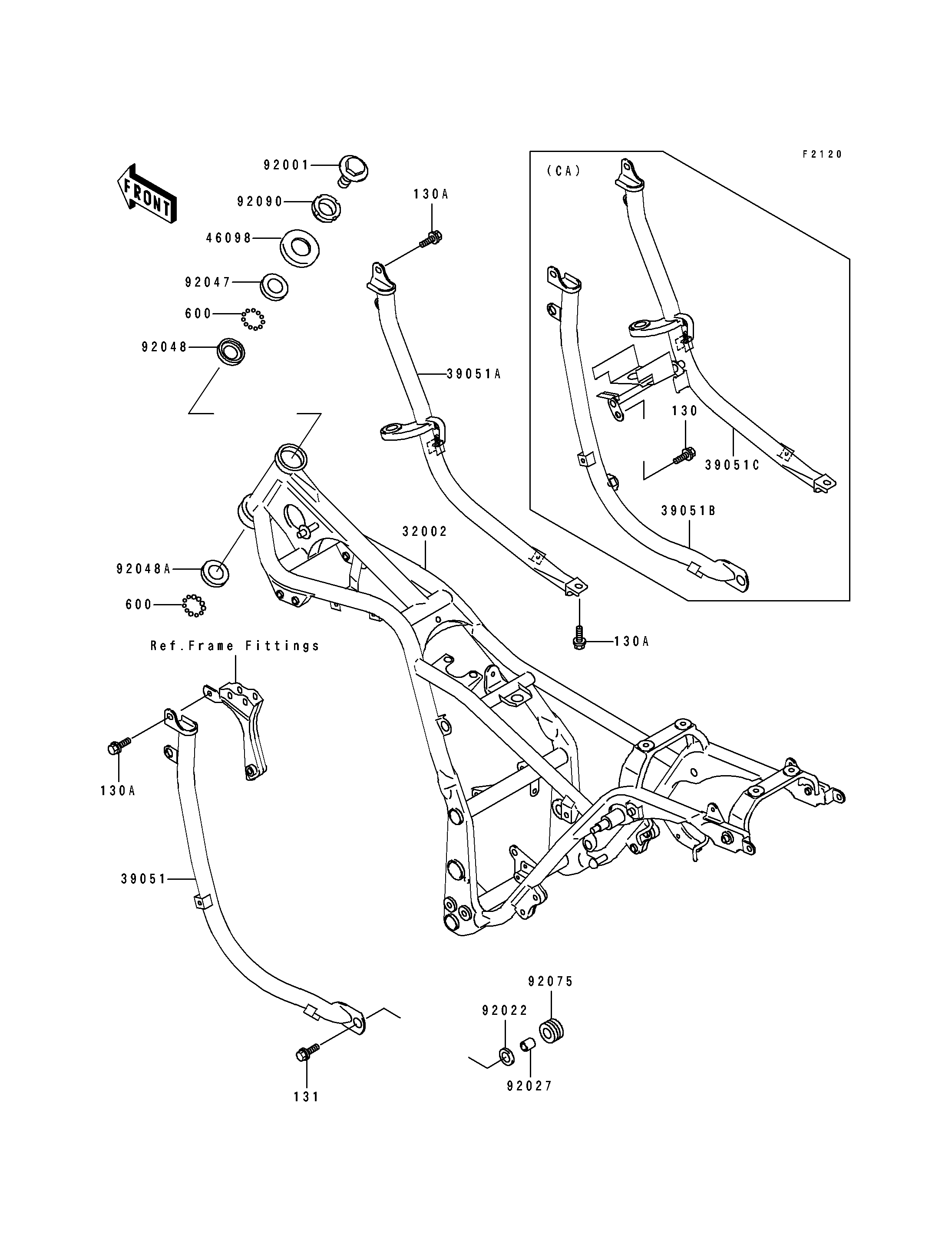

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP 32002 32002-1951 1
FRAME-COMP-SIDE,LH 39051 39051-1062 1
FRAME-COMP-SIDE,RH 39051A 39051-1063 1
CAP,STEERING STEM 46098 46098-016 1
BOLT,FLANGED,16X22 92001 92001-1488 1
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 1
COLLAR,8.8X12X10.7 92027 92027-102 1
RACE,STEERING STEM BEARING 92047 92047-011 1
RACE,STEERING STEM BEARING 92048 92048-006 1
RACE,STEERING STEM BEARING 92048A 92048-008 1
DAMPER 92075 92075-1898 1
NUT,30MM 92090 92090-007 1
BOLT-FLANGED,8X16,BLACK 130A 130C0816 3
BOLT-FLANGED,8X25,BLACK 131 131J0825 1
BALL-STEEL,1/4" 600 600A0800 39
