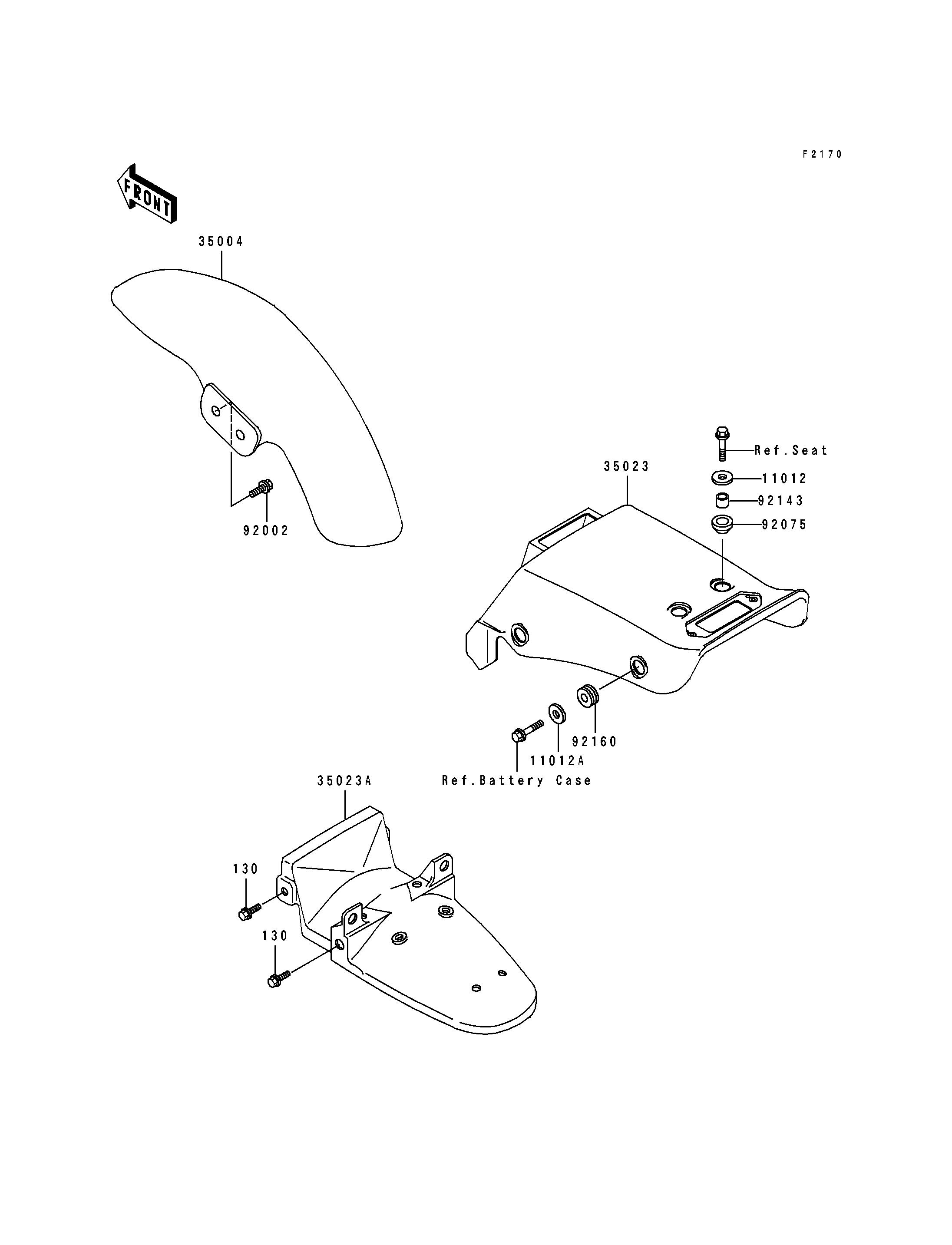

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1599 2
CAP 11012A 11012-1600 4
FENDER-FRONT,C.C.RED 35004 35004-1208-L1 1
FENDER-REAR,UPP,C.C.RED 35023 35023-1200-L1 1
FENDER-REAR,LWR,C.C.RED 35023A 35023-1203-L1 1
BOLT,FLANGED,8X16 92002 92002-1200 4
DAMPER 92075 92075-1960 2
COLLAR,9X15X13 92143 92143-1127 2
DAMPER 92160 92160-1012 4
BOLT-FLANGED,6X14 130 130D0614 4
