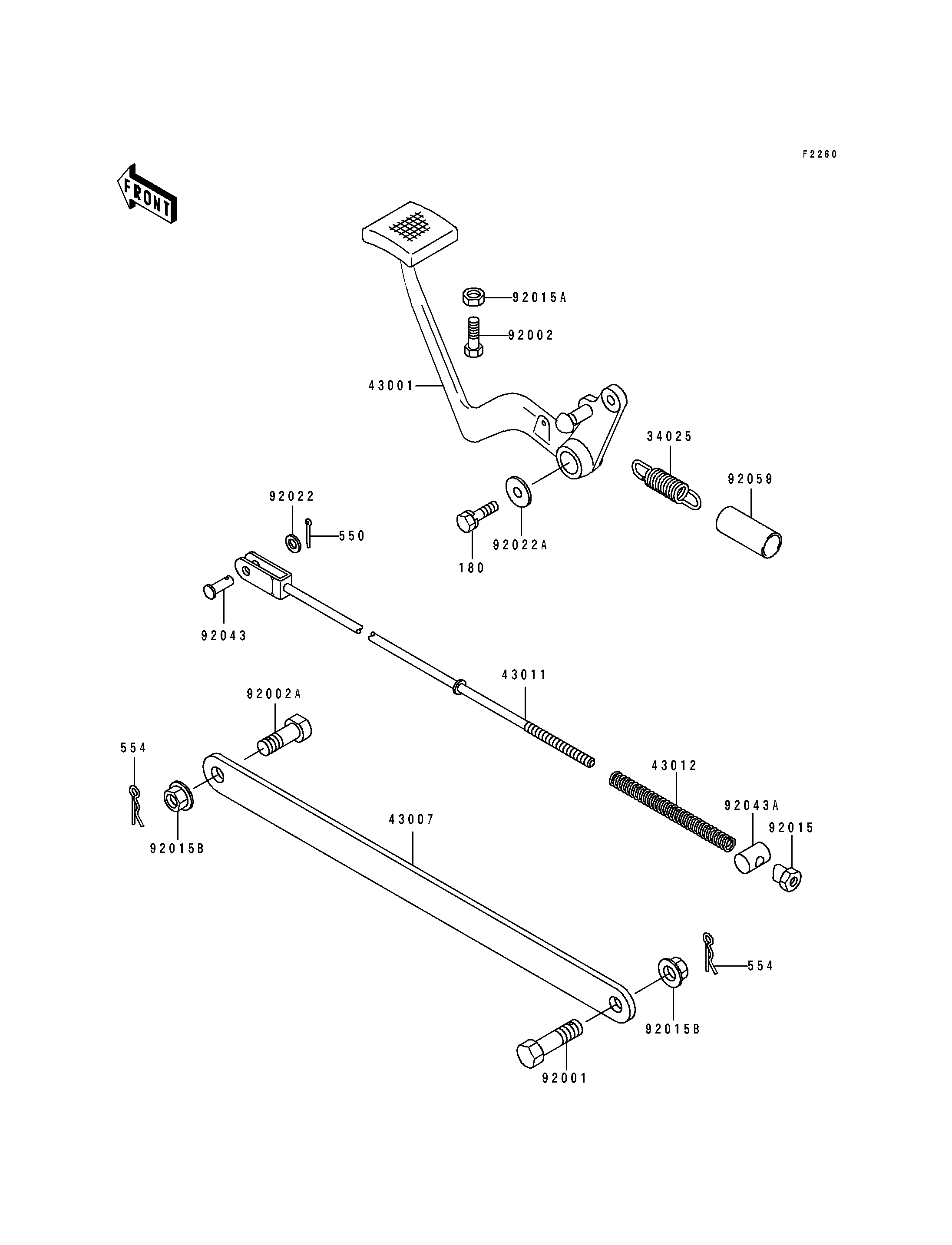

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPRING,SIDE STAND 34025 34025-009 1
LEVER-BRAKE,PEDAL 43001 43001-1234 1
ROD-TORQUE,RR 43007 43007-1026 1
ROD-BRAKE 43011 43011-1141 1
SPRING,BRAKE ROD 43012 43012-001 1
BOLT,10X37 92001 92001-1519 1
BOLT,6X20 92002 92002-1373 1
BOLT,ROD,10X27 92002A 92002-1992 1
NUT,BRAKE ROD 92015 92015-042 1
NUT,6MM 92015A 92015-1391 1
NUT,FLANGED,10MM 92015B 92015-1428 2
WASHER,6.5X11.5X0.8 92022 92022-1556 1
WASHER,6.5X20X1.6 92022A 92022-1557 1
PIN,6X17 92043 92043-064 1
PIN,BRAKE ROD 92043A 92043-065 1
TUBE,14X17X40 92059 92059-1983 1
BOLT-UPSET-WS 180 180D0616 1
PIN-COTTER,2.0X15 550 550D2015 1
PIN-SNAP,8MM 554 554A0800 2
