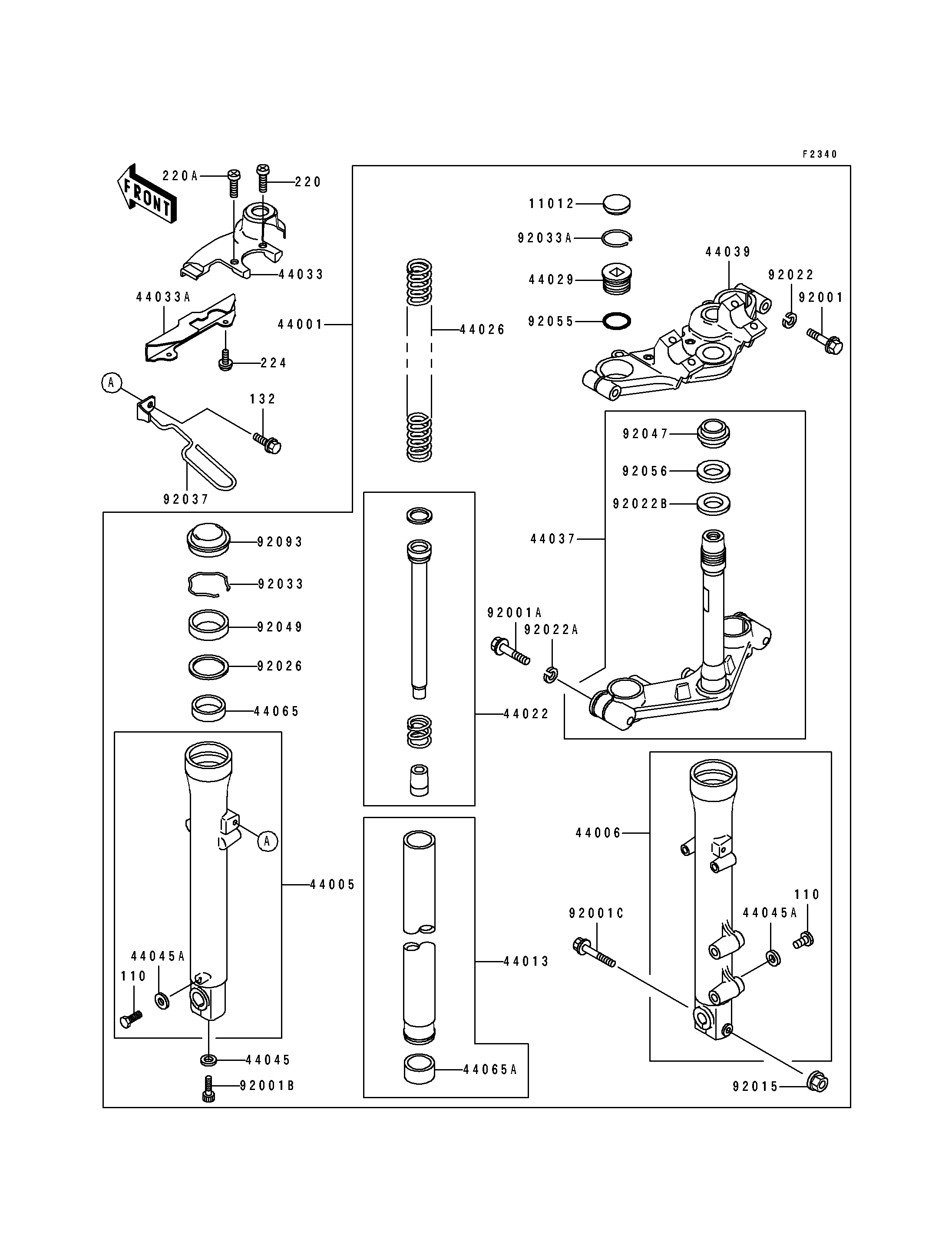

1994 Eliminator 250 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FORK TOP 11012 11012-1620 2
FORK-FRONT 44001 44001-1666 1
PIPE-LEFT FORK OUTER 44005 44005-1266 1
PIPE-RIGHT FORK OUTER 44006 44006-1263 1
PIPE-FORK INNER 44013 44013-1270 2
CYLINDER-FORK 44022 44022-1217 2
SPRING-FRONT FORK 44026 44026-1374 2
SEAT-FORK SPRING 44029 44029-1124 2
COVER-FORK,UPPER BRACKET 44033 44033-1176 1
COVER-FORK 44033A 44033-1181 1
HOLDER-FORK UNDER 44037 44037-1222 1
HOLDER-FORK UPPER 44039 44039-1159 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
GASKET,DRAIN PLUG 44045A 44045-052 2
BUSHING-FRONT FORK 44065 44065-1068 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1069 2
BOLT,8X40 92001 92001-1063 2
BOLT,10X40 92001A 92001-1454 2
BOLT,FORK CYLINDER 92001B 92001-1464 2
BOLT,FLANGED,8X50 92001C 92001-1486 1
NUT,FLANGED,8MM 92015 92015-1055 1
WASHER,SPRING,8MM 92022 92022-1703 2
WASHER,SPRING,10MM 92022A 92022-1704 2
WASHER,30.5X50X0.6 92022B 92022-231 1
SPACER,FORK 92026 92026-1038 2
RING-SNAP,FORK 92033 92033-1219 2
RING-SNAP,FORK TOP 92033A 92033-1220 2
CLAMP,CABLE 92037 92037-1922 1
RACE,STEERING STEM BEARING 92047 92047-012 1
SEAL-OIL,FORK 92049 92049-1226 2
RING-O,FORK SPRING SEAT 92055 92055-1359 2
SEAL-OIL,STEERING STEM 92056 92056-003 1
SEAL,FORK 92093 92093-1196 2
BOLT,6X8 110 110B0608 2
BOLT-FLANGED-SMALL 132 132E0610 1
SCREW-PAN-CROS 220 220E0510 1
SCREW-PAN-CROS,5X18 220A 220E0518 1
SCREW-PAN-WP-CROS 224 224B0508 2
