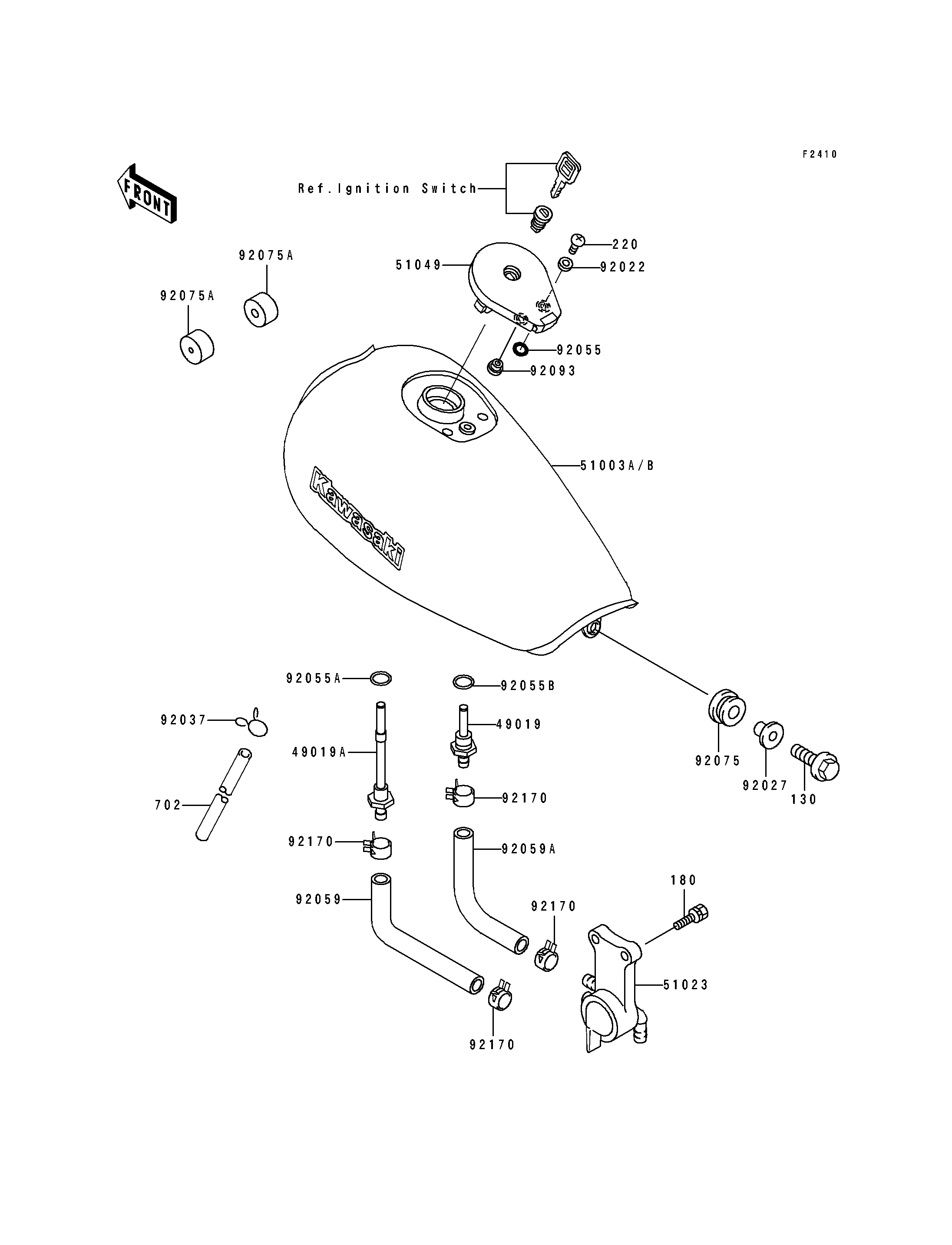

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FILTER-FUEL,"RES" | 49019 | 49019-1057 | 1 | ||
FILTER-FUEL,"ON" | 49019A | 49019-1058 | 1 | ||
TANK-COMP-FUEL,RED/ROSE | 51003A | 51003-5193-HF | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-1145 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-1088 | 1 | ||
WASHER,5.1X10X1.0 | 92022 | 92022-1977 | 2 | ||
COLLAR,L=14.1 | 92027 | 92027-1920 | 1 | ||
CLAMP | 92037 | 92037-1712 | 1 | ||
RING-O | 92055 | 92055-1023 | 2 | ||
RING-O,ID=9.5 | 92055A | 92055-1386 | 1 | ||
RING-O,11.5X1.5 | 92055B | 92055-1387 | 1 | ||
TUBE,"ON" | 92059 | 92059-1831 | 1 | ||
TUBE,"RES" | 92059A | 92059-1832 | 1 | ||
DAMPER | 92075 | 92075-1057 | 1 | ||
DAMPER,FUEL TANK | 92075A | 92075-125 | 2 | ||
CLAMP | 92170 | 92170-2043 | 4 | ||
BOLT-FLANGED,6X25 | 130 | 130B0625 | 1 | ||
BOLT-UPSET-WS | 180 | 180B0608 | 2 | ||
SCREW-PAN-CROS | 220 | 220D0510 | 2 | ||
TUBE-RUBBER,7X10X800 | 702 | 702A07800 | 1 |
