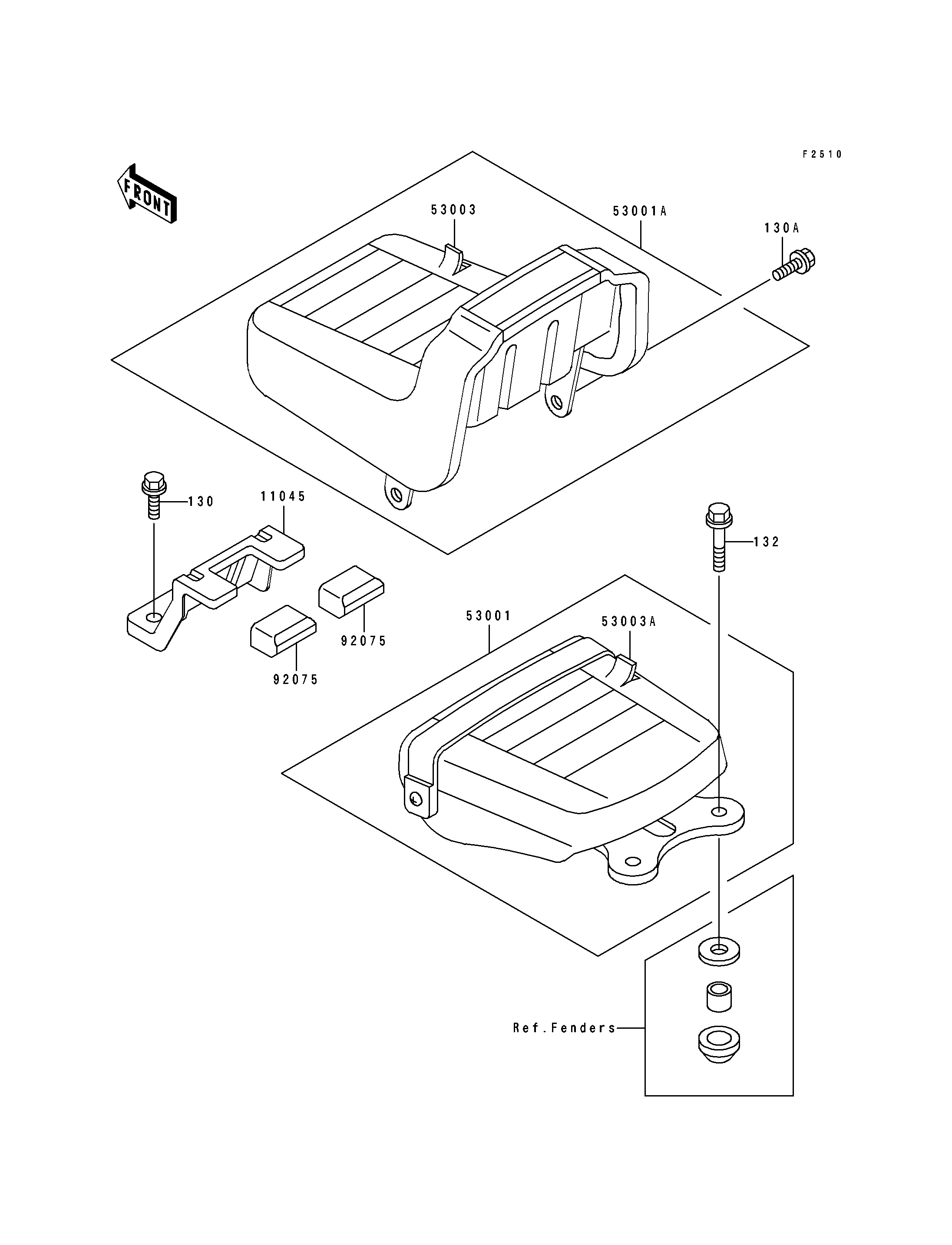

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REAR SEAT,FR 11045 11045-1802 1
SEAT-ASSY,RR,W/BAND,BLACK 53001 53001-1530-MA 1
SEAT-ASSY,FR,BLACK 53001A 53001-1534-MA 1
LEATHER,FRONT SEAT,BLACK 53003 53003-1199-MA 1
LEATHER,REAR SEAT,BLACK 53003A 53003-1200-MA 1
DAMPER 92075 92075-1965 2
BOLT-FLANGED,8X25,BLACK 130 130C0825 2
BOLT-FLANGED 130A 130D0814 2
BOLT-FLANGED-SMALL 132 132E0835 2
