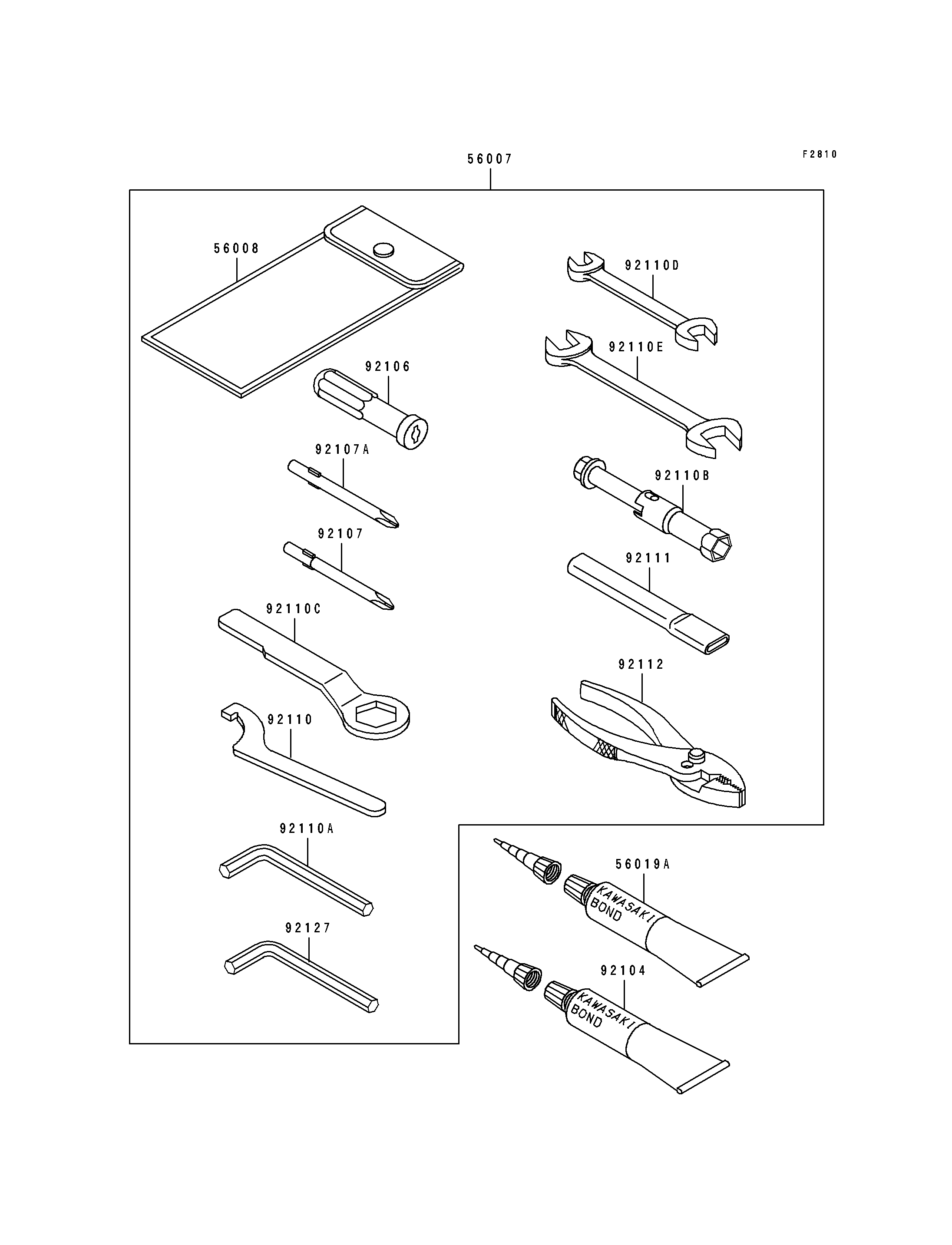

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOLKIT 56007 56007-1325 1
BAG,TOOL 56008 56008-1019 1
THREE BOND TB1211,HT/RS,WHITE 56019A 56019-120 1
GASKET-LIQUID,TUBE,100G,SILVER 92104 92104-002 1
GRIP-SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER,#3PHILLIPS 92107 92107-005 1
TOOL-DRIVER,#2PHILLIPS 92107A 92107-1053 1
TOOL-WRENCH,HOOK,45MM 92110 92110-1007 1
TOOL-WRENCH,ALLEN,5MM 92110A 92110-1015 1
TOOL-WRENCH,BOX,16MM 92110B 92110-1132 1
TOOL-WRENCH,BOX END,24MM 92110C 92110-1150 1
TOOL-WRENCH,OPEN END,10X12 92110D 92110-1152 1
TOOL-WRENCH,OPEN END,14X17 92110E 92110-1153 1
TOOL-BAR,BOX END WRENCH 92111 92111-1051 1
TOOL-PLIERS 92112 92112-003 1
TOOL-WRENCH,ALLEN,6MM 92127 92127-003 1
