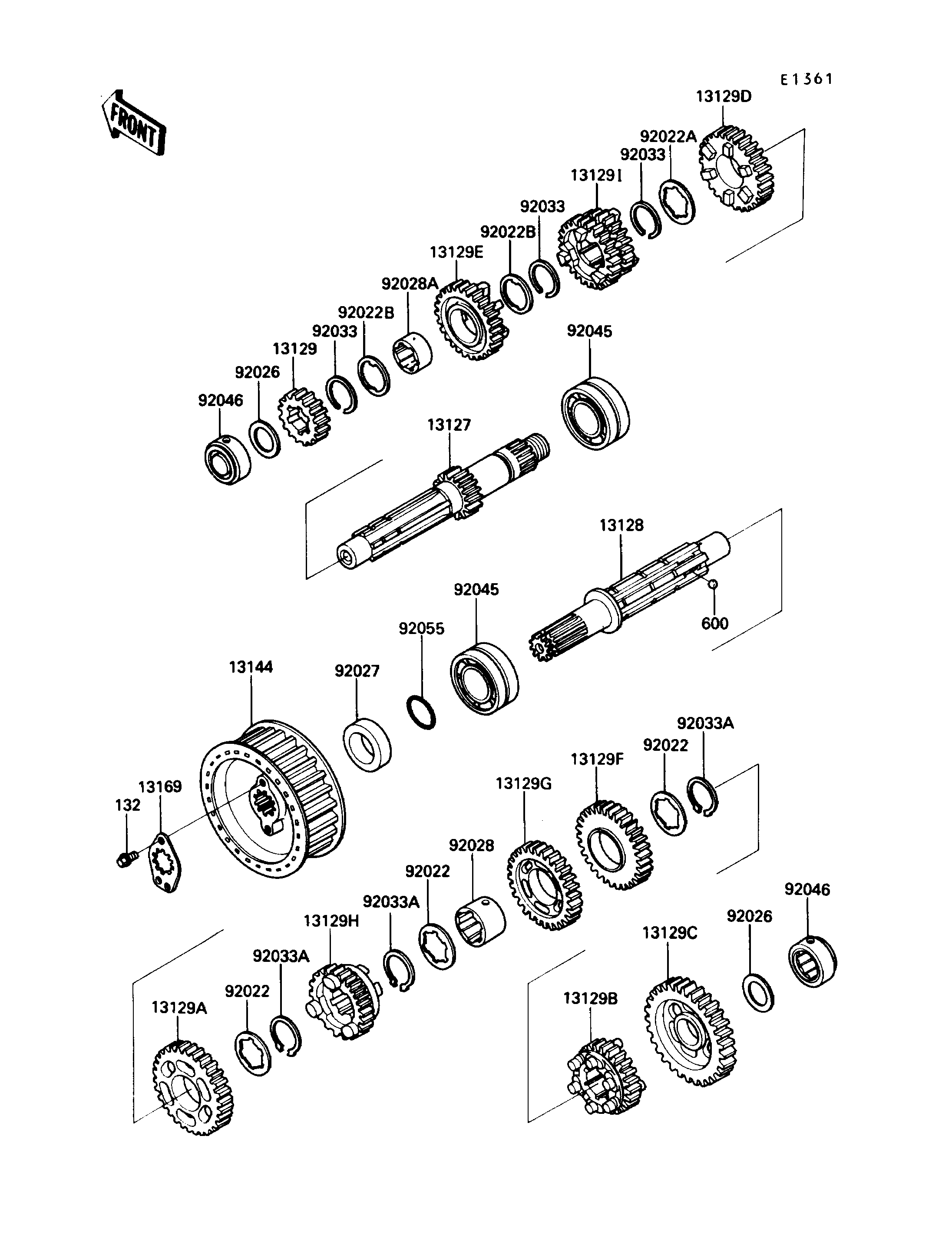

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,14T | 13127 | 13127-1148 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1118 | 1 | ||
| GEAR,INPUT 2ND,18T | 13129 | 13129-1077 | 1 | ||
| GEAR,OUTPUT 2ND,32T | 13129A | 13129-1078 | 1 | ||
| GEAR,OUTPUT 5TH,25T | 13129B | 13129-1083 | 1 | ||
| GEAR,OUTPUT LOW,36T | 13129C | 13129-1564 | 1 | ||
| GEAR,INPUT 5TH,26T | 13129D | 13129-1657 | 1 | ||
| GEAR,INPUT TOP,27T | 13129E | 13129-1658 | 1 | ||
| GEAR,OUTPUT 3RD,29T | 13129F | 13129-1659 | 1 | ||
| GEAR,OUTPUT 4TH,27T | 13129G | 13129-1660 | 1 | ||
| GEAR,OUTPUT TOP,23T | 13129H | 13129-1662 | 1 | ||
| GEAR,INPUT 3RD&4TH,21T&24T | 13129I | 13129-1846 | 1 | ||
| SPROCKET-OUTPUT,25T | 13144 | 13144-1115 | 1 | ||
| PLATE,SPROCKET | 13169 | 13169-1893 | 1 | ||
| WASHER,TOOTHED,28.3X33.5X1 | 92022 | 92022-1139 | 3 | ||
| WASHER,TOOTHED,25.3X31.8X1.6 | 92022A | 92022-1861 | 1 | ||
| WASHER,TOOTHED,25.5X32X1 | 92022B | 92024-033 | 2 | ||
| SPACER,20.3X30X2.0 | 92026 | 92026-1022 | 2 | ||
| COLLAR,25X40X12 | 92027 | 92027-1857 | 1 | ||
| BUSHING,OUTPUT 3RD&4TH GEAR | 92028 | 92028-1364 | 1 | ||
| BUSHING,INPUT TOP GEAR | 92028A | 92028-1552 | 1 | ||
| RING-SNAP,24MM | 92033 | 92033-026 | 3 | ||
| RING-SNAP,25.9MM | 92033A | 92033-1037 | 3 | ||
| BEARING-BALL,83993SH2-CS | 92045 | 92045-035 | 2 | ||
| BEARING-NEEDLE,NKZ20X34X17 | 92046 | 92046-1161 | 2 | ||
| RING-O | 92055 | 92055-035 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0612 | 2 | ||
| BALL-STEEL,5/32" | 600 | 600A0500 | 3 |
