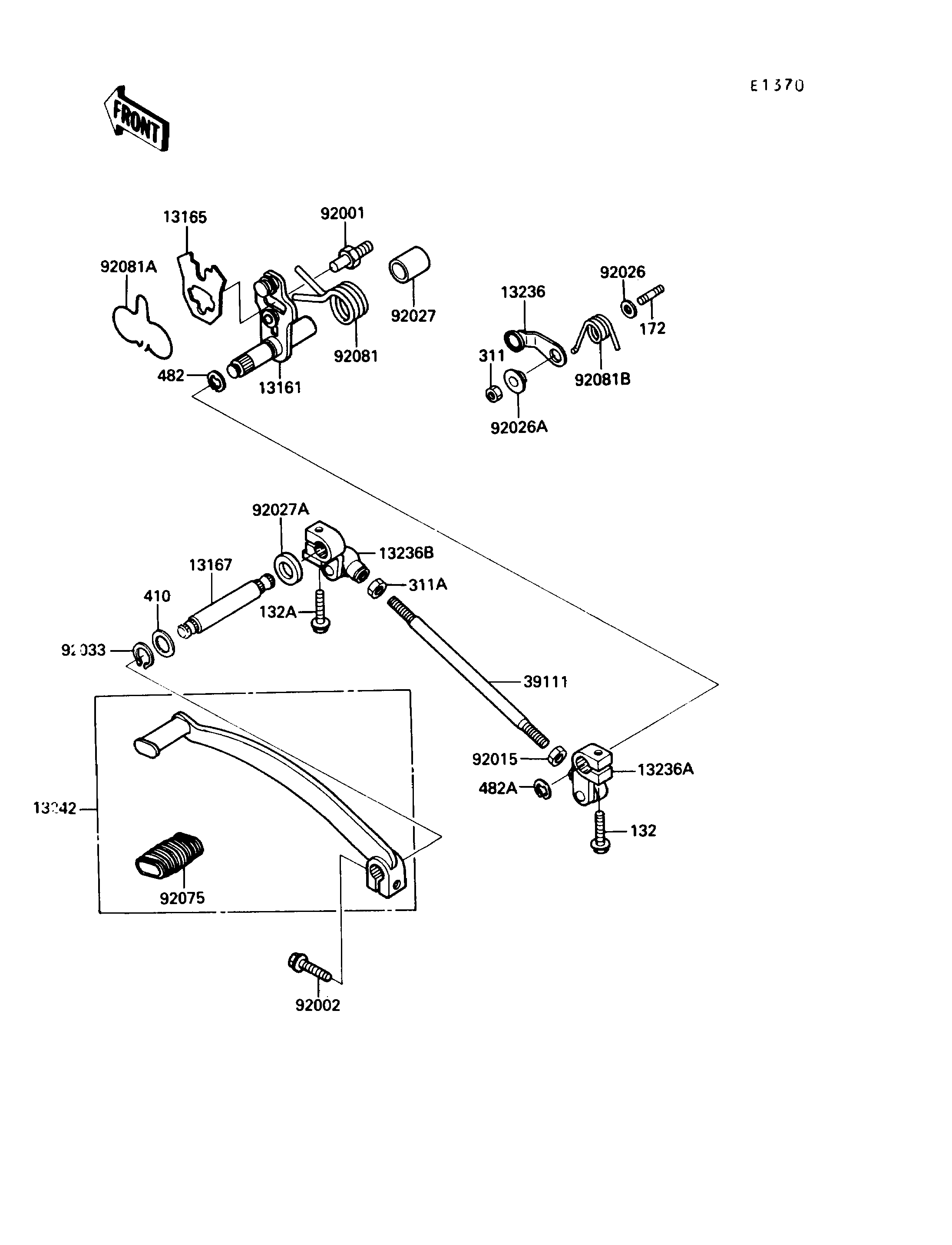

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1117 | 1 | ||
| PAWL,CHANGE LEVER | 13165 | 13165-1034 | 1 | ||
| SHAFT-CHANGE | 13167 | 13167-1059 | 1 | ||
| LEVER-COMP,GEAR POSITION | 13236 | 13236-1103 | 1 | ||
| LEVER-COMP,CHANGE | 13236A | 13236-1123 | 1 | ||
| LEVER-COMP,CHANGE | 13236B | 13236-1124 | 1 | ||
| LEVER-ASSY-CHANGE,PEDAL | 13242 | 13242-1201 | 1 | ||
| ROD-TIE | 39111 | 39111-1071 | 1 | ||
| BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
| BOLT,6X20 | 92002 | 92002-1237 | 1 | ||
| NUT | 92015 | 92015-1178 | 1 | ||
| SPACER,6.3X12X1.0 | 92026 | 92026-094 | 1 | ||
| SPACER | 92026A | 92026-1217 | 1 | ||
| COLLAR,13X18.3X21.5 | 92027 | 92027-1440 | 1 | ||
| COLLAR,13.2X22X5.5 | 92027A | 92027-1855 | 1 | ||
| RING-SNAP,11MM | 92033 | 92033-1189 | 1 | ||
| DAMPER,CHANGE PEDAL | 92075 | 92075-1585 | 1 | ||
| SPRING,CHANGE PEDAL RETURN | 92081 | 92081-1387 | 1 | ||
| SPRING,CHANGE LEVER | 92081A | 92081-1785 | 1 | ||
| SPRING,POSITION LEVER | 92081B | 92081-1786 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0620 | 1 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0625 | 1 | ||
| BOLT-STUD,6X14 | 172 | 172G0614 | 1 | ||
| NUT-HEX,6MM | 311 | 311G0600 | 1 | ||
| NUT-HEX | 311A | 311J0600 | 1 | ||
| WASHER-PLAIN-SMALL,12MM,BLACK | 410 | 410F1200 | 1 | ||
| CIRCLIP-TYPE-E,12MM | 482 | 482J0200 | 1 | ||
| CIRCLIP-TYPE-E | 482A | 482L7000 | 1 |
