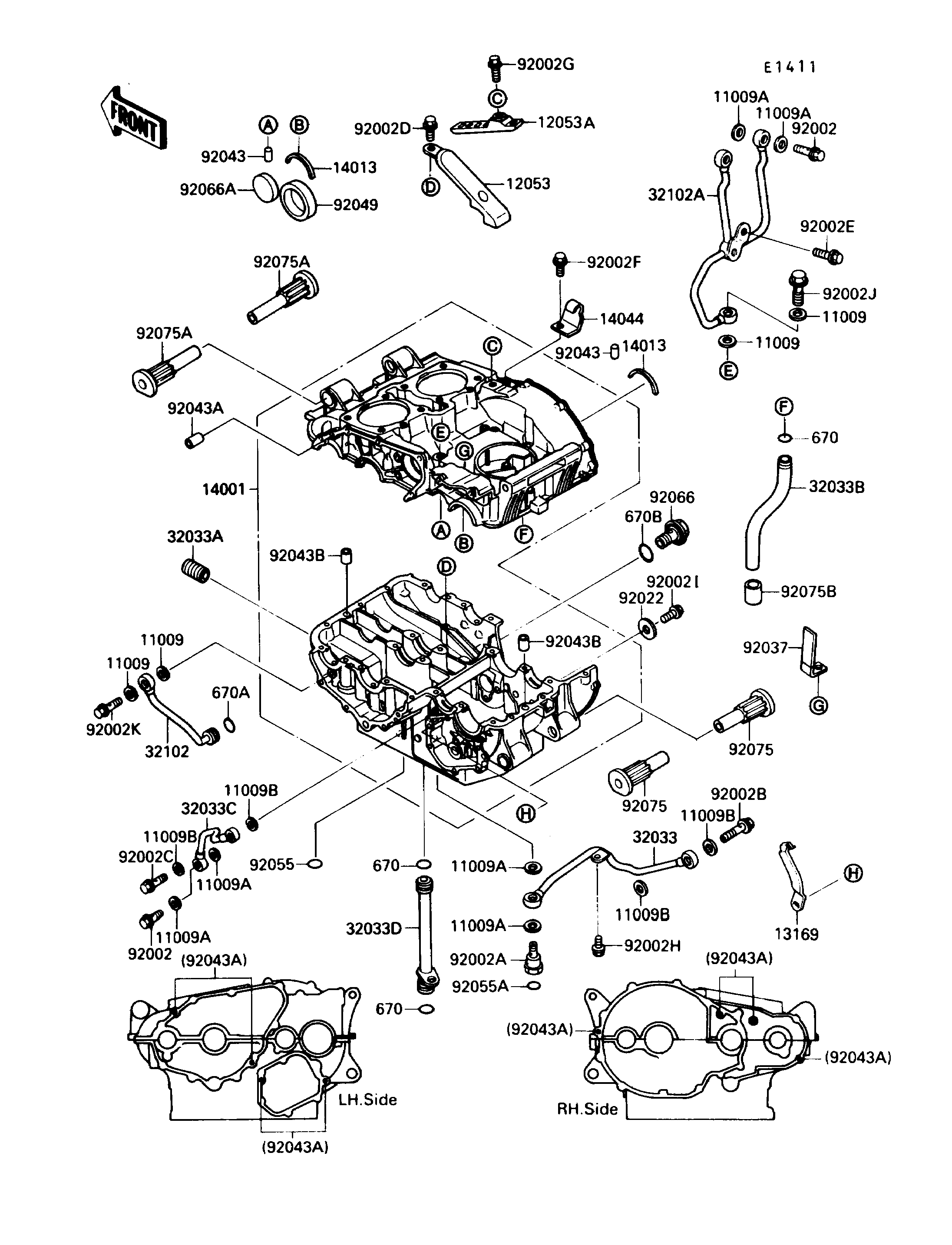

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 4 | ||
GASKET,OIL PIPE,8.2X14X1.0 | 11009A | 11009-1344 | 8 | ||
GASKET | 11009B | 92065-096 | 4 | ||
GUIDE-CHAIN,CRANKCASE,LWR | 12053 | 12053-1147 | 1 | ||
GUIDE-CHAIN,CRANKCASE,UPP | 12053A | 12053-1148 | 1 | ||
PLATE | 13169 | 13169-1896 | 1 | ||
SET-CRANKCASE | 14001 | 14001-5230 | 1 | ||
RING-POSITION | 14013 | 14013-004 | 2 | ||
HOLDER-CABLE | 14044 | 14044-1055 | 1 | ||
PIPE | 32033 | 32033-1530 | 1 | ||
PIPE | 32033A | 32033-1535 | 1 | ||
PIPE | 32033B | 32033-1538 | 1 | ||
PIPE | 32033C | 32033-1539 | 1 | ||
PIPE | 32033D | 32033-1574 | 1 | ||
PIPE | 32102 | 32102-1541 | 1 | ||
PIPE | 32102A | 32102-1710 | 1 | ||
BOLT,BANJO,8X20 | 92002 | 92002-1429 | 3 | ||
BOLT | 92002A | 92002-1467 | 1 | ||
BOLT,BANJO,6X28 | 92002B | 92002-1471 | 1 | ||
BOLT,BANJO,6X19 | 92002C | 92002-1473 | 1 | ||
BOLT,6X12 | 92002D | 92002-1563 | 2 | ||
BOLT,6X12 | 92002E | 92002-1569 | 1 | ||
BOLT,6X16 | 92002F | 92002-1570 | 1 | ||
BOLT,6X16 | 92002G | 92002-1571 | 1 | ||
BOLT,6X12 | 92002H | 92002-1572 | 1 | ||
BOLT,6X14 | 92002I | 92002-1656 | 1 | ||
BOLT,OIL,L=23 | 92002J | 92002-1809 | 1 | ||
BOLT,BANJO,10X30 | 92002K | 92002-1941 | 1 | ||
WASHER,6.5X24X1.2 | 92022 | 42046-008 | 1 | ||
CLAMP | 92037 | 92037-1679 | 1 | ||
PIN,DOWEL,6X16 | 92043 | 92042-016 | 2 | ||
PIN,6.2X8X14 | 92043A | 92043-1263 | 8 | ||
PIN,8.2X10X14 | 92043B | 92043-1264 | 2 | ||
SEAL-OIL,AE2343F0 | 92049 | 92049-1070 | 1 | ||
RING-O,OD=18 | 92055 | 92055-048 | 2 | ||
RING-O,OD=13 | 92055A | 92055-074 | 1 | ||
PLUG,MAIN GALLERY | 92066 | 92066-1205 | 1 | ||
PLUG,RCA 345.5 | 92066A | 92066-1208 | 1 | ||
DAMPER,L=79.5 | 92075 | 92075-1678 | 2 | ||
DAMPER,L=93 | 92075A | 92075-1679 | 2 | ||
DAMPER | 92075B | 92075-1742 | 1 | ||
O RING,10MM | 670 | 670B1510 | 3 | ||
O RING,10MM | 670A | 670B2010 | 1 | ||
O RING,21MM | 670B | 670B2021 | 1 |
