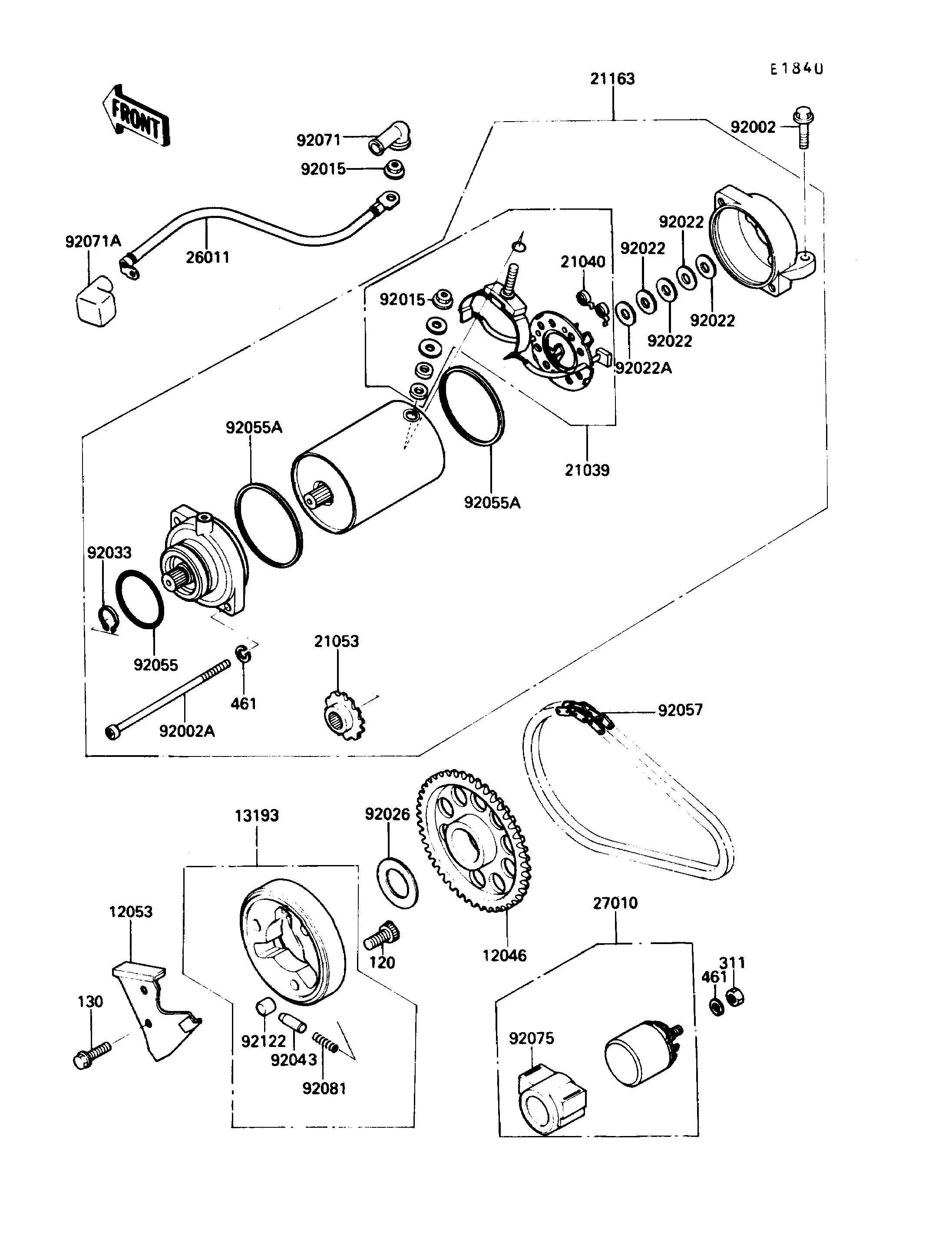

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SPROCKET,ONEWAY CLUTCH,46T | 12046 | 12046-1072 | 1 | ||
GUIDE-CHAIN | 12053 | 12053-1149 | 1 | ||
CLUTCH-ASSY-ONEWAY | 13193 | 13193-1053 | 1 | ||
BRUSH,CARBON | 21039 | 21039-1053 | 1 | ||
SPRING-BRUSH | 21040 | 21040-1003 | 4 | ||
SPROCKET-ASSY | 21053 | 21053-002 | 1 | ||
STARTER-ELECTRIC | 21163 | 21163-1070 | 1 | ||
WIRE-LEAD,STARATER MOTOR | 26011 | 26011-1293 | 1 | ||
SWITCH,MAGNETIC | 27010 | 27010-1235 | 1 | ||
BOLT,6X25 | 92002 | 92002-1086 | 2 | ||
BOLT | 92002A | 92002-1474 | 2 | ||
NUT,STARTER MOTOR | 92015 | 92015-1476 | 2 | ||
WASHER,9.1X18X0.2 | 92022 | 21025-011 | 4 | ||
WASHER,9.1X18X0.8 | 92022A | 92022-1132 | 1 | ||
SPACER,25.2X40X1.0 | 92026 | 92026-1285 | 1 | ||
RING-SNAP,17MM | 92033 | 92033-034 | 1 | ||
PIN | 92043 | 92043-087 | 3 | ||
RING-O,42.8MM | 92055 | 21027-005 | 1 | ||
RING-O,64MM | 92055A | 92055-1086 | 2 | ||
CHAIN,STARTER,BF05MX64L | 92057 | 92057-1197 | 1 | ||
GROMMET,STARTER TERMINAL | 92071 | 21017-017 | 1 | ||
GROMMET,TERMINAL | 92071A | 92071-1127 | 1 | ||
DAMPER,MAGNETIC SWITCH | 92075 | 21064-002 | 1 | ||
SPRING | 92081 | 92081-110 | 3 | ||
ROLLER,15X13 | 92122 | 92122-004 | 3 | ||
BOLT-SOCKET | 120 | 120P0816 | 3 | ||
BOLT-FLANGED,6X20 | 130 | 130G0620 | 2 | ||
NUT-HEX,6MM | 311 | 311B0600 | 2 | ||
WASHER-SPRING,6MM | 461 | 461F0600 | 4 |
