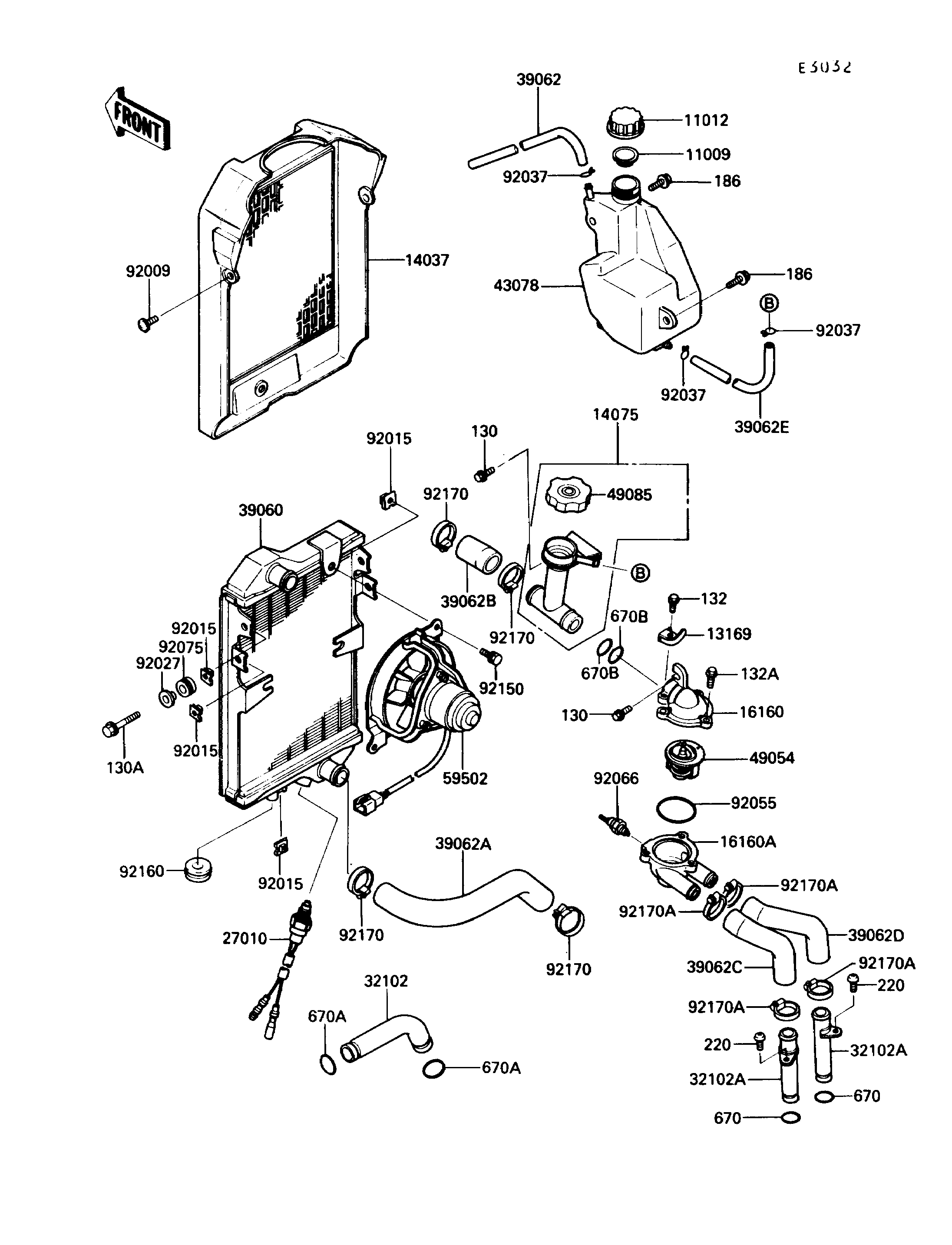

1990 454 LTD - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
PLATE 13169 13169-1901 1
SCREEN,RADIATOR 14037 14037-1068 1
CAP-ASSY,RADIATOR 14075 14075-1056 1
BODY,THERMOSTAT,UPP 16160 16160-1085 1
BODY,THERMOSTAT,LWR 16160A 16160-1138 1
SWITCH,FAN 27010 27010-1260 1
PIPE 32102 32102-1014 1
PIPE 32102A 32102-1473 2
RADIATOR 39060 39060-1089 1
HOSE-COOLING,5.5X10.5X970 39062 39062-1060 1
HOSE-COOLING 39062A 39062-1106 1
HOSE-COOLING 39062B 39062-1107 1
HOSE-COOLING 39062C 39062-1108 1
HOSE-COOLING 39062D 39062-1109 1
HOSE-COOLING,5.5X10.5X300 39062E 39062-1110 1
RESERVOIR 43078 43078-1060 1
THERMOSTAT 49054 49054-1055 1
CAP-ASSY-PRESSURE 49085 49085-1057 1
FAN-ASSY 59502 59502-1054 1
SCREW,6X14 92009 92009-1288 3
NUT 92015 92015-1487 7
COLLAR 92027 92027-1767 2
CLAMP,TUBE 92037 92037-147 3
RING-O,44.7X2.4 92055 92055-1279 1
PLUG,SENSOR,WATER 92066 92066-1118 1
DAMPER 92075 92075-1680 2
BOLT,6X12 92150 92150-1186 3
DAMPER 92160 92160-1007 1
CLAMP 92170 92037-1989 4
CLAMP,COOLING HOSE 92170A 92170-1077 4
BOLT-FLANGED,6X14 130 130G0614 2
BOLT-FLANGED,6X25 130A 130J0625 2
BOLT-FLANGED-SMALL 132 132G0612 1
BOLT-FLANGED-SMALL 132A 132G0620 3
BOLT-UPSET-WP 186 186J0618 2
SCREW-PAN-CROS,6X12 220 220B0612 2
O RING,14MM 670 670B2014 2
O RING,18MM 670A 670B2018 2
O RING,22MM 670B 670B2022 2
