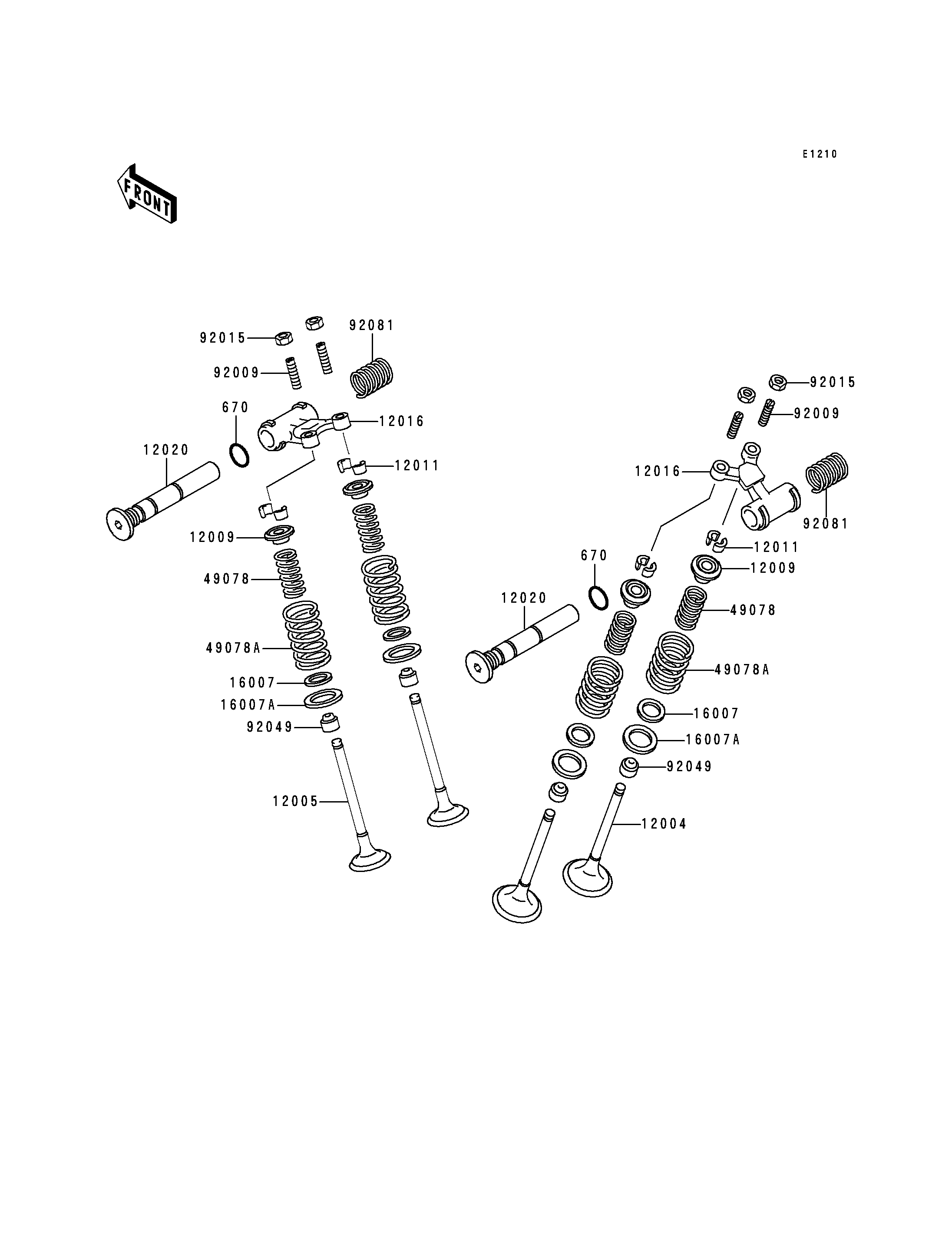

1992 Vulcan 500 - Rocker Arms/Valves

DOWNLOAD PDF
SELECT A NEW PART
670
670
12004
12005
12009
12009
12011
12011
12016
12016
12020
12020
16007
16007
16007A
16007A
49078
49078
49078A
49078A
92009
92009
92015
92015
92049
92049
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,16MM 670 670D2016 4
VALVE-INTAKE 12004 12004-1076 4
VALVE-EXHAUST 12005 12005-1052 4
RETAINER-VALVE SPRING 12009 12009-1054 8
COLLET 12011 12011-1003 16
ARM-ROCKER 12016 12016-1051 4
SHAFT-ROCKER 12020 12020-1057 4
SEAT-SPRING,12.1X16.2X0.5 16007 16007-1143 8
SEAT-SPRING,17.5X23.8X0.5 16007A 16007-1144 8
SPRING-ENGINE VALVE,INNER 49078 49078-1051 8
SPRING-ENGINE VALVE,OUTER 49078A 49078-1052 8
SCREW,7MM 92009 92009-1279 8
NUT,7MM 92015 92015-1325 8
SEAL-OIL,RVC2-5.5X8.5X8.3 92049 92049-1062 8
SPRING,ROCKER ARM 92081 92081-1636 4
