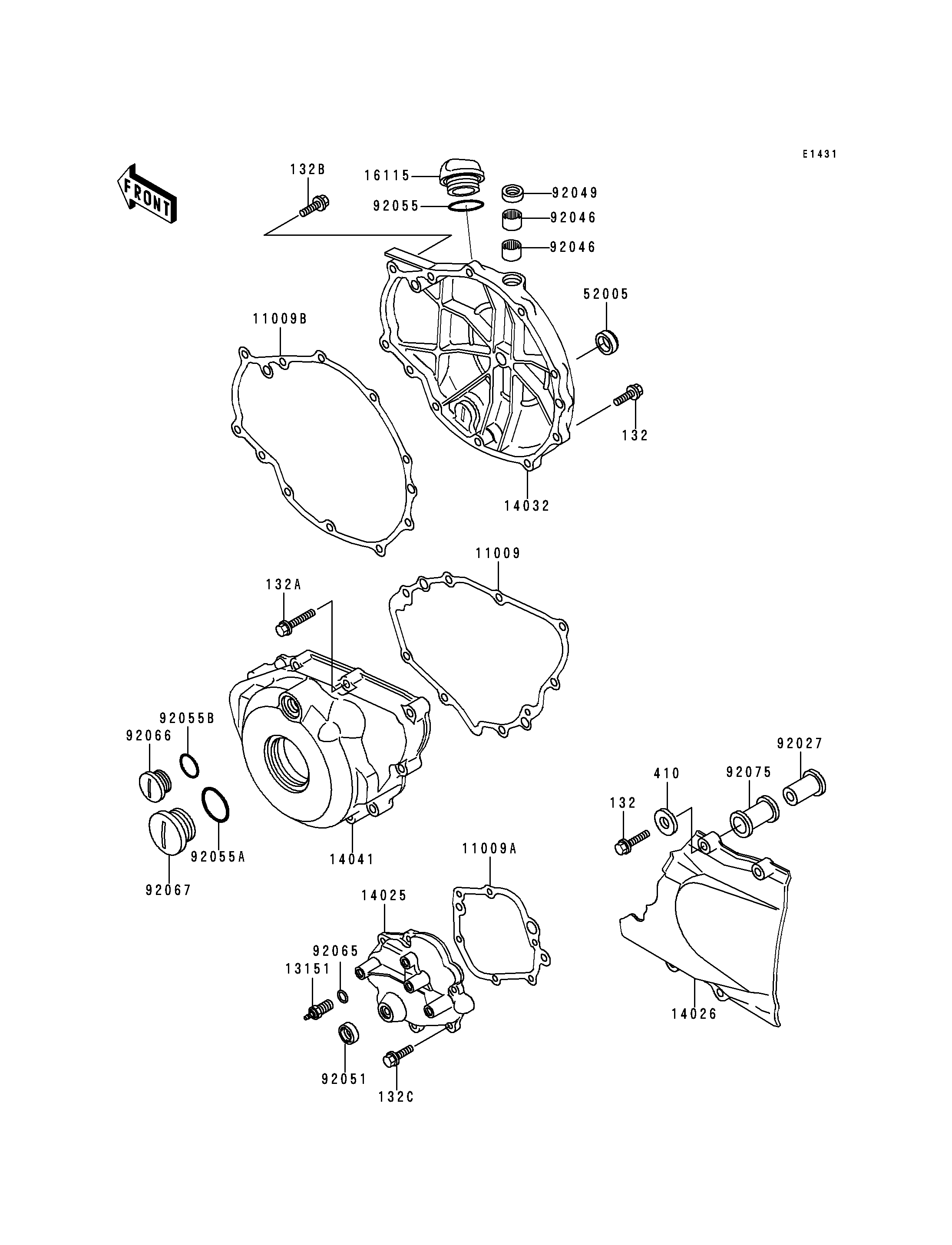

1992 Vulcan 500 - Engine Covers

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132B
132C
410
11009
11009A
11009B
13151
14025
14026
14032
14041
16115
52005
92027
92046
92046
92049
92051
92055
92055A
92055B
92065
92066
92067
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0625 11
BOLT-FLANGED-SMALL 132A 132E0630 9
BOLT-FLANGED-SMALL 132B 132E0635 4
BOLT-FLANGED-SMALL 132C 132J0620 6
WASHER-PLAIN-SMALL,6MM 410 410B0600 4
GASKET,GENERATOR COVER 11009 11009-1834 1
GASKET,CHANGE MECHANISM COVER 11009A 11009-1835 1
GASKET,CLUTCH COVER 11009B 11009-1836 1
SWITCH-COMP,NEUTRAL 13151 13151-1007 1
COVER,CHANGE MECHANISM 14025 14025-1986 1
COVER-CHAIN 14026 14026-1155 1
COVER-CLUTCH 14032 14032-1284 1
COVER-COMP,GENERATOR 14041 14041-1096 1
CAP-OIL FILLER 16115 16115-1062 1
GAUGE,OIL LEVEL 52005 52005-1009 1
COLLAR 92027 92027-1858 4
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,TB12205.5 92049 92049-1271 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O 92055A 92055-091 1
RING-O 92055B 92055-1146 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG,COVER,LH 92066 92066-1218 1
PLUG,RELEASE,30X8 92067 92067-024 1
DAMPER 92075 92075-1681 4
