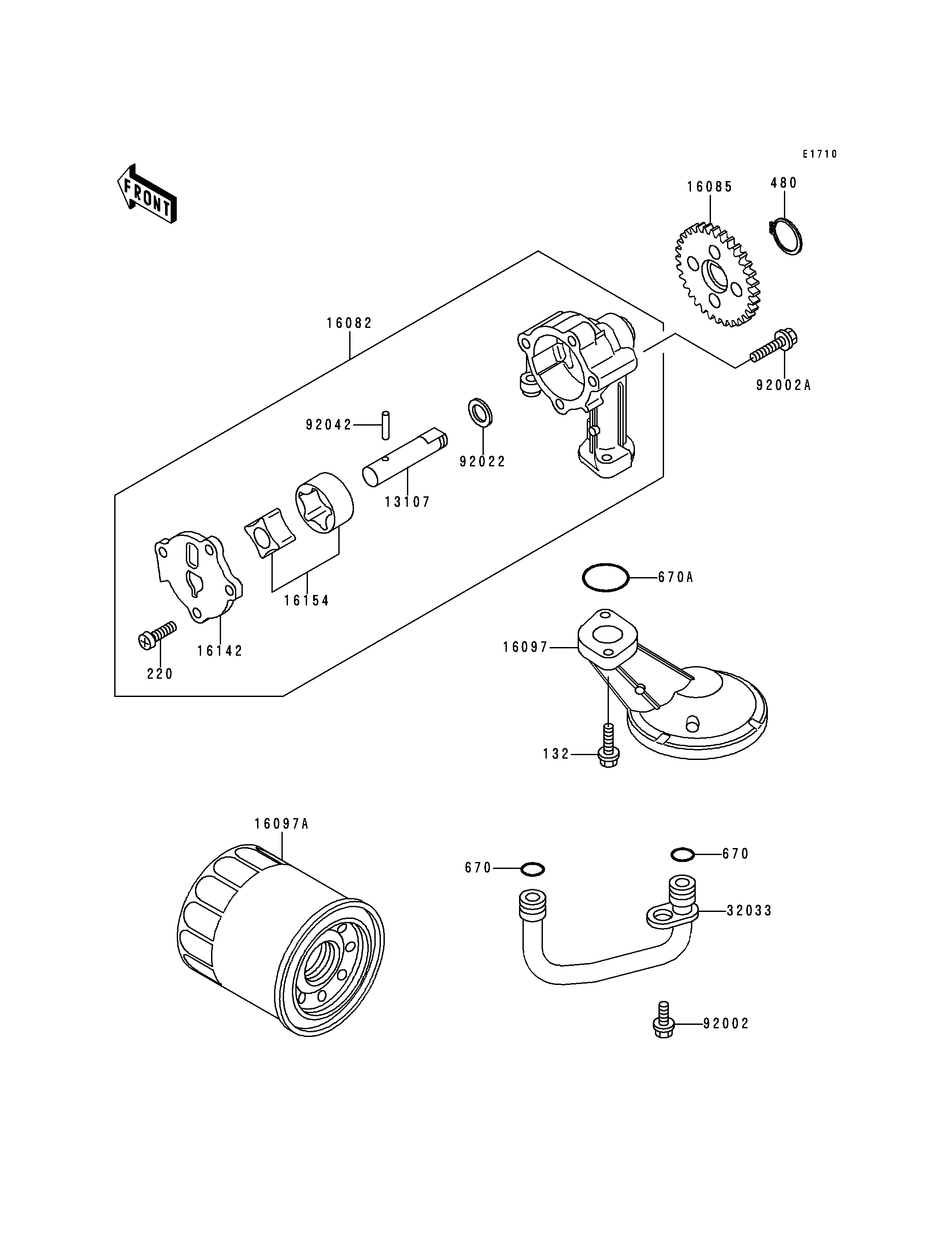

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0620 2
SCREW-PAN-CROS,6X16 220 220B0616 4
CIRCLIP-TYPE-C,11MM 480 480J1100 1
O RING,10MM 670 670B2010 2
O RING,22MM 670A 670D2022 1
SHAFT,OIL PUMP 13107 13107-1202 1
PUMP-ASSY-OIL 16082 16082-1085 1
GEAR,OIL PUMP 16085 16085-1143 1
FILTER-ASSY-OIL 16097 16097-1056 1
FILTER-ASSY-OIL 16097A 16097-1064 1
COVER-PUMP,OIL 16142 16142-1077 1
ROTOR-PUMP,OIL 16154 16154-1066 1
PIPE 32033 32033-1540 1
BOLT,6X12 92002 92002-1572 1
BOLT,6X25 92002A 92002-1609 3
WASHER,11.2X15X1 92022 92022-311 1
PIN,DOWEL,4X15.8 92042 92042-014 1
