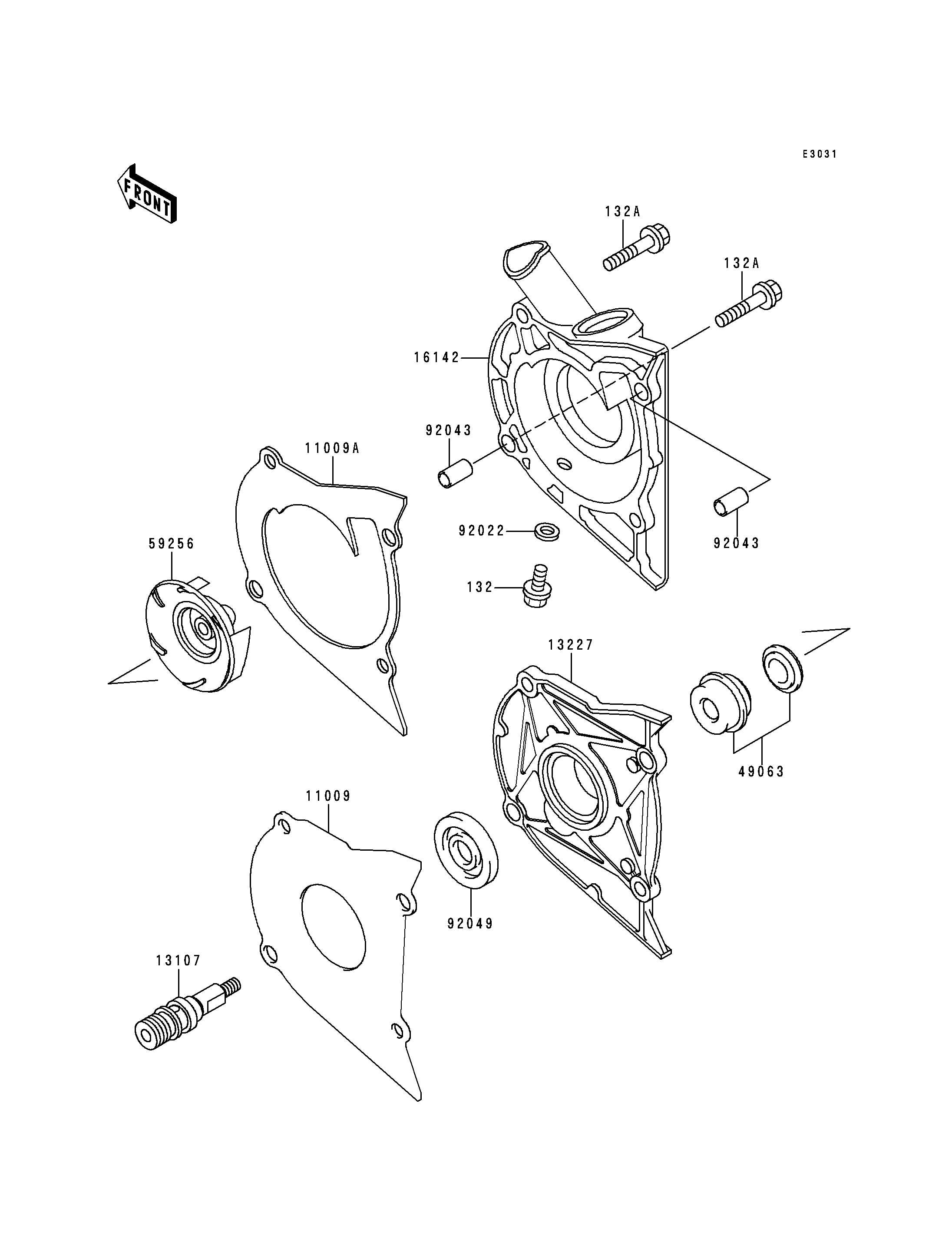

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0612 1
BOLT-FLANGED-SMALL 132A 132E0635 4
GASKET,PUMP HOUSING 11009 11009-1838 1
GASKET,PUMP COVER 11009A 11009-1839 1
SHAFT,IMPELLER 13107 13107-1203 1
HOUSING,WATER PUMP 13227 13227-1055 1
COVER-PUMP 16142 16142-1099 1
SEAL-MECHANICAL 49063 49063-1054 1
IMPELLER 59256 59256-1060 1
WASHER,6.2X11X1 92022 92022-304 1
PIN,6.2X8X14 92043 92043-1263 2
SEAL-OIL,SC12365 92049 92049-1215 1
