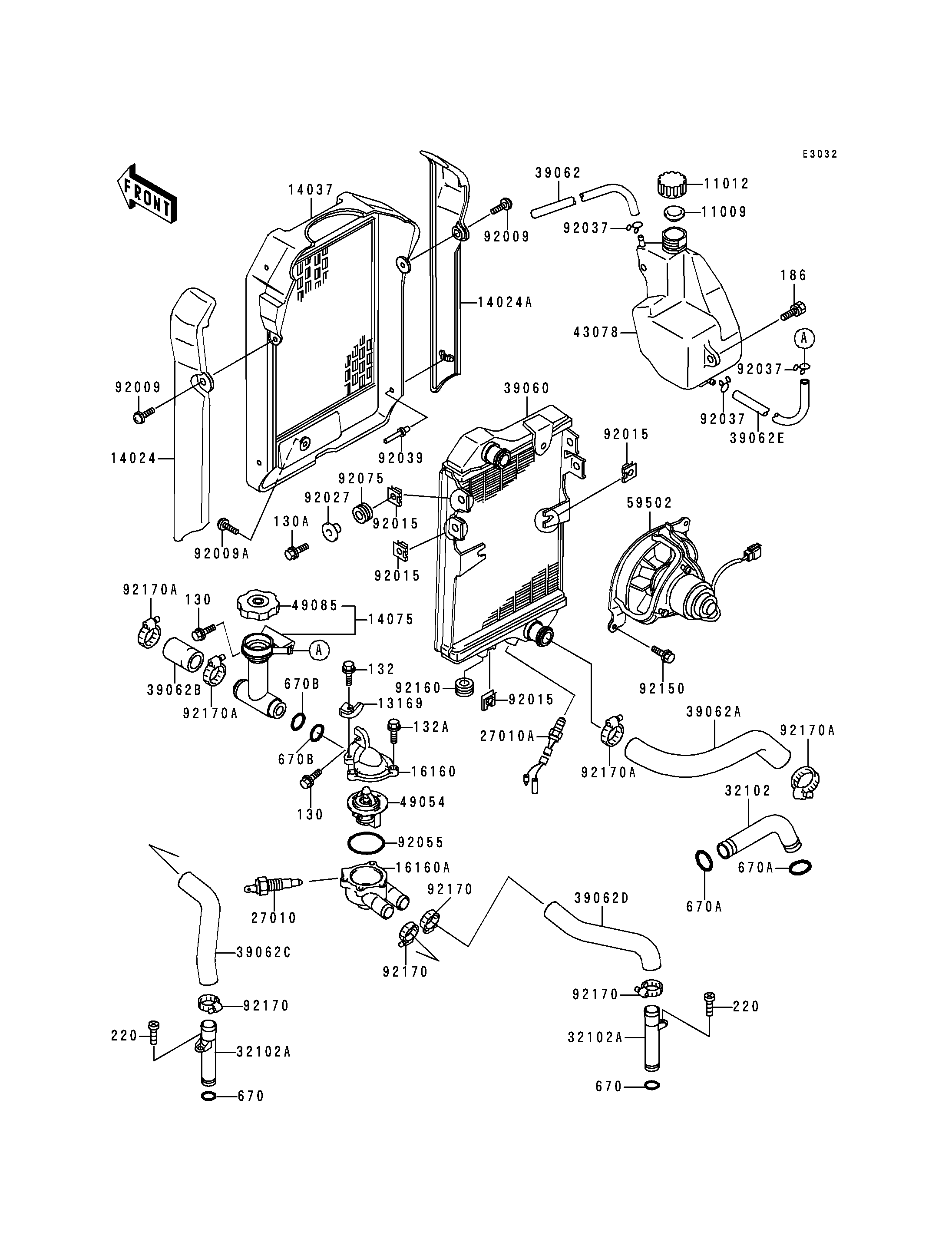

1992 Vulcan 500 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130A
130A
132
132
132A
132A
11009
11009
11012
11012
13169
13169
14024
14024
14024A
14024A
14037
14037
14075
14075
16160
16160
16160A
16160A
27010
27010
27010A
27010A
32102
32102
32102A
32102A
32102A
32102A
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
43078
43078
49054
49054
49085
49085
59502
59502
92009
92009
92009
92009
92009A
92009A
92015
92015
92015
92015
92015
92015
92015
92015
92027
92027
92037
92037
92037
92037
92037
92037
92039
92039
92055
92055
92075
92075
92150
92150
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
186
186
220
220
220
220
670
670
670
670
670A
670A
670A
670A
670B
670B
670B
670B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130G0614 2
BOLT-FLANGED 130A 130J0620 2
BOLT-FLANGED-SMALL 132 132G0612 1
BOLT-FLANGED-SMALL 132A 132G0620 3
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
PLATE 13169 13169-1901 1
COVER,SCREEN,LH 14024 14024-1889 1
COVER,SCREEN,RH 14024A 14024-1890 1
SCREEN 14037 14037-1127 1
CAP-ASSY,RADIATOR 14075 14075-1082 1
BODY,THERMOSTAT,UPP 16160 16160-1085 1
BODY,THERMOSTAT,LWR 16160A 16160-1138 1
SWITCH,SENSOR WATER 27010 27010-1239 1
SWITCH,FAN 27010A 27010-1307 1
PIPE 32102 32102-1014 1
PIPE 32102A 32102-1473 2
RADIATOR 39060 39060-1089 1
HOSE-COOLING,5.5X10.5X970 39062 39062-1060 1
HOSE-COOLING 39062A 39062-1106 1
HOSE-COOLING 39062B 39062-1107 1
HOSE-COOLING 39062C 39062-1108 1
HOSE-COOLING 39062D 39062-1109 1
HOSE-COOLING,5.5X10.5X300 39062E 39062-1110 1
RESERVOIR 43078 43078-1060 1
THERMOSTAT 49054 49054-1055 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
FAN-ASSY 59502 59502-1054 1
SCREW,6X18,WHITE 92009 92009-1111 2
SCREW,6X14 92009A 92009-1288 1
NUT 92015 92015-1487 7
COLLAR 92027 92027-1767 2
CLAMP,TUBE 92037 92037-147 3
RIVET,BLIND,4.0X9.2 92039 92039-1163 4
RING-O,44.7X2.4 92055 92055-1279 1
DAMPER 92075 92075-1680 2
BOLT,6X12 92150 92150-1186 3
DAMPER 92160 92160-1007 1
CLAMP,COOLING HOSE 92170 92170-1077 4
CLAMP,COOLING HOSE 92170A 92170-1286 4
BOLT-UPSET-WP 186 186J0618 2
SCREW-PAN-CROS,6X12 220 220B0612 2
O RING,14MM 670 670B2014 2
O RING,18MM 670A 670B2018 2
O RING,22MM 670B 670B2022 2
