132
132
45014
45014
45017
45017
92002
92002
92015
92015
92075
92075

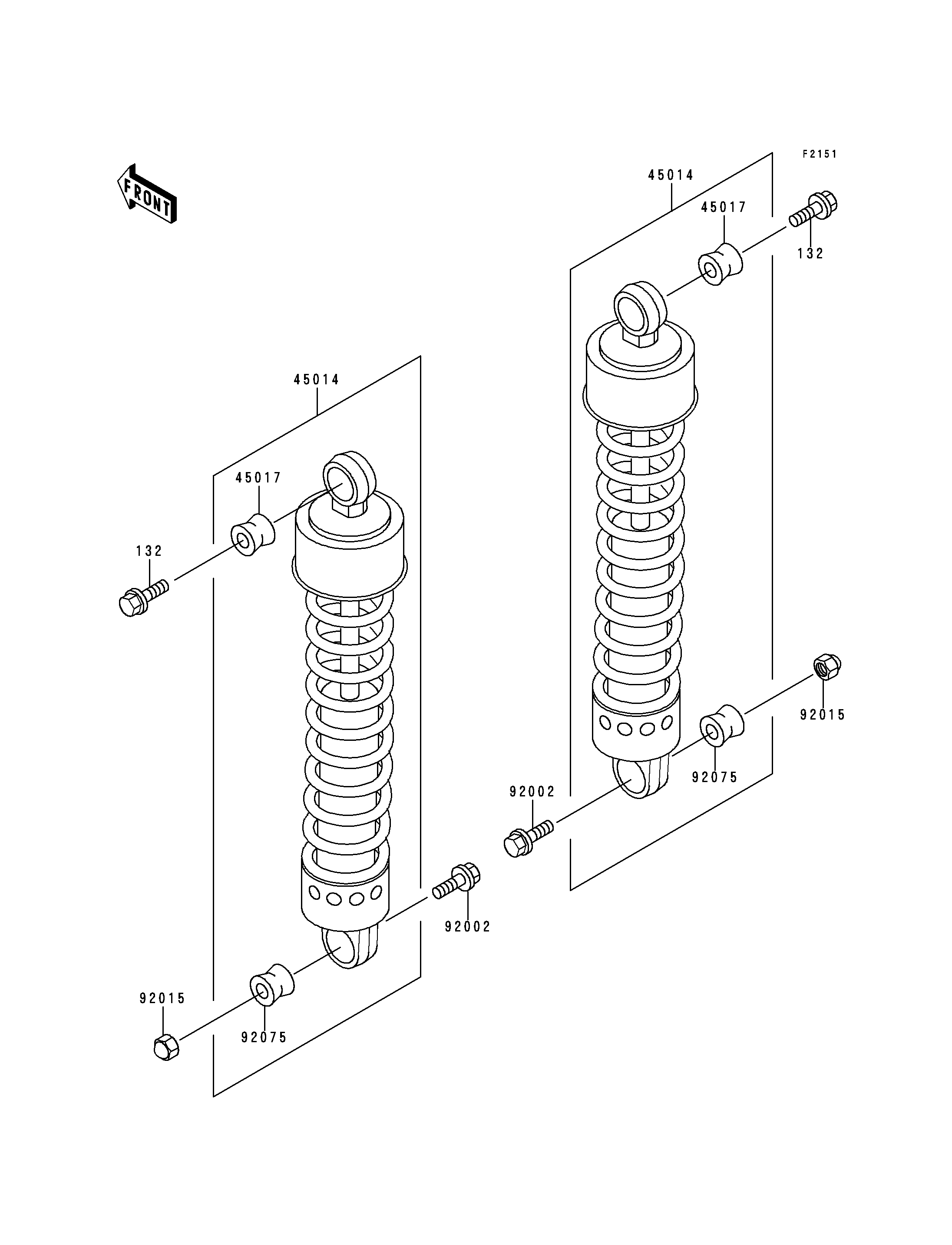

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0814 2
SHOCKABSORBER 45014 45014-1468 2
DAMPER,SHOCKABSORBER 45017 45017-015 2
BOLT,FLANGED,10X37 92002 92002-1578 2
NUT,10MM 92015 92015-1649 2
DAMPER,SHOCKABSORBER,LWR 92075 92075-1499 2
