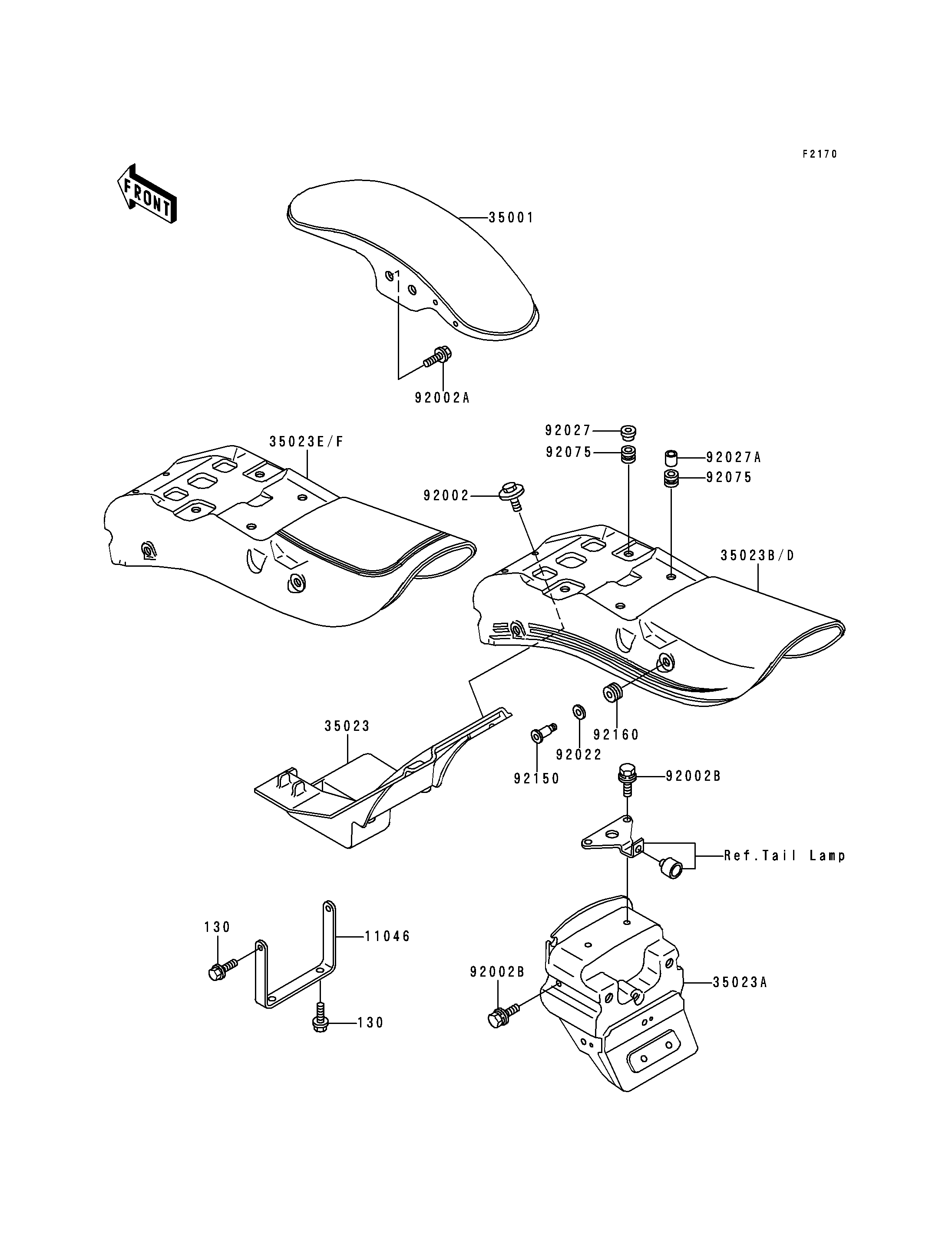

1992 Vulcan 500 - Fenders(EN500-A1/A2/A3/A4)

DOWNLOAD PDF
SELECT A NEW PART
130
130
11046
35001
35023
35023A
35023D
92002
92002A
92002B
92002B
92022
92027
92027A
92075
92075
92150
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0610 4
BRACKET,REAR FENDER,FR 11046 11046-1913 1
FENDER-ASSY-FRONT 35001 35001-1140 1
FENDER-REAR,FR 35023 35023-1259 1
FENDER-REAR,RR,LWR 35023A 35023-1261 1
FENDER-REAR,RR,UPP,C.A.BLUE 35023D 35023-5060-FC 1
BOLT,6X16 92002 92002-1188 2
BOLT,FLANGED,8X16 92002A 92002-1200 4
BOLT,6X16 92002B 92002-1242 4
WASHER 92022 92022-107 2
COLLAR,L=9 92027 92027-1188 2
COLLAR,6.8X10X8.5 92027A 92027-129 2
DAMPER 92075 92075-1634 4
BOLT 92150 92150-1413 2
DAMPER 92160 92160-1012 2
FENDER-REAR,RR,UPP,C.S.RED 35023B 35023-5058-GV 1
