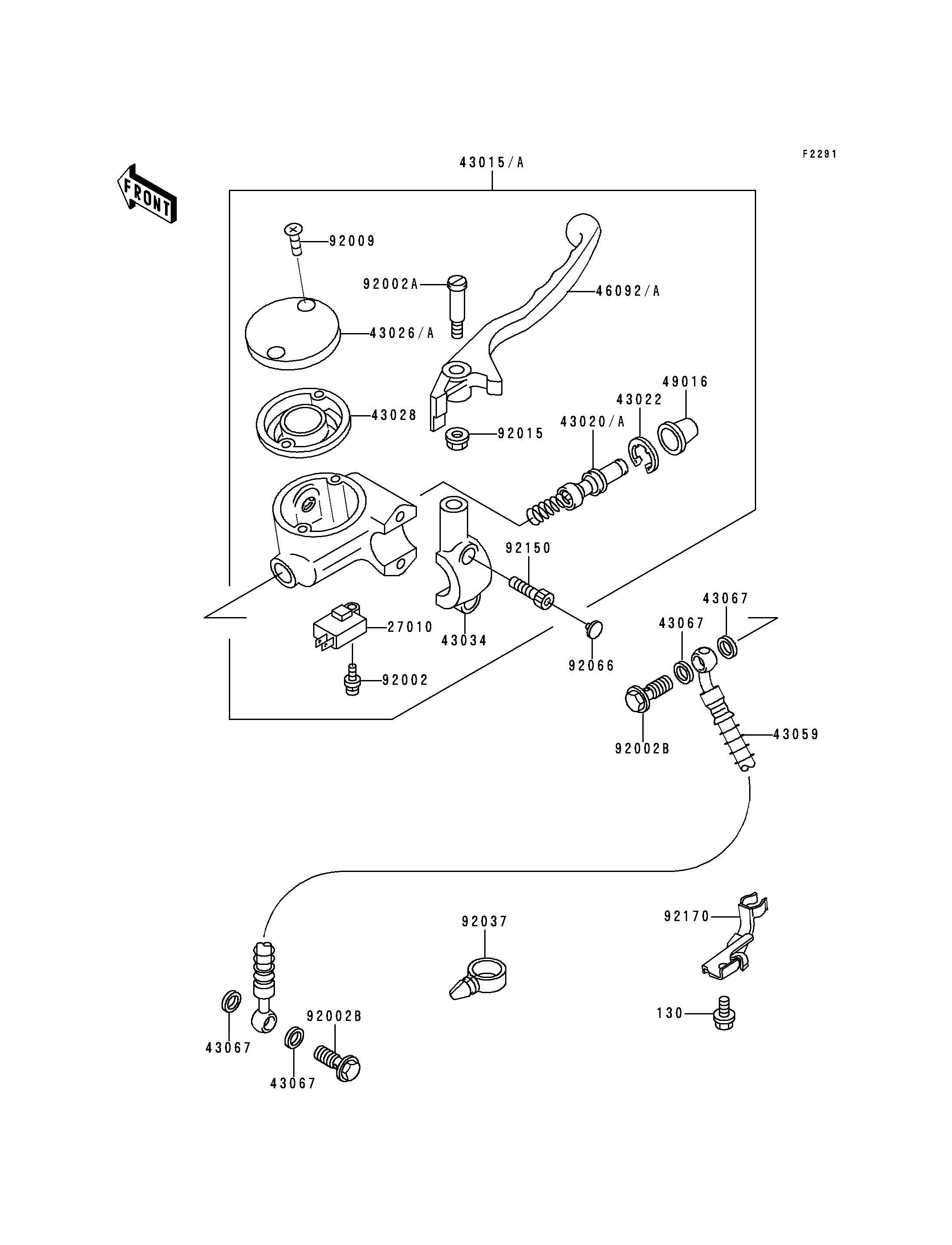

1992 Vulcan 500 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
27010
43015A
43020A
43022
43026A
43028
43034
43059
43067
43067
43067
43067
46092A
49016
92002
92002A
92002B
92002B
92009
92015
92037
92066
92150
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0610 1
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015A 43015-1511 1
PISTON-COMP-BRAKE 43020A 43020-1098 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026A 43026-1078 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1071 1
HOLDER-BRAKE 43034 43034-1102 1
HOSE-BRAKE,FR 43059 43059-1565 1
WASHER,10.5X15X1.5 43067 43067-001 4
LEVER-GRIP,FRONT BRAKE 46092A 46092-1172 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT,LEVER SET 92002A 92002-1561 1
BOLT,OIL,L=23 92002B 92002-1888 2
SCREW 92009 92009-1440 2
NUT,FLANGED,6MM 92015 92015-1528 1
CLAMP,HOSE 92037 92037-1827 2
PLUG 92066 92066-1301 2
BOLT,SOCKET,6MM 92150 92150-1025 2
CLAMP,HOSE 92170 92170-1157 1
