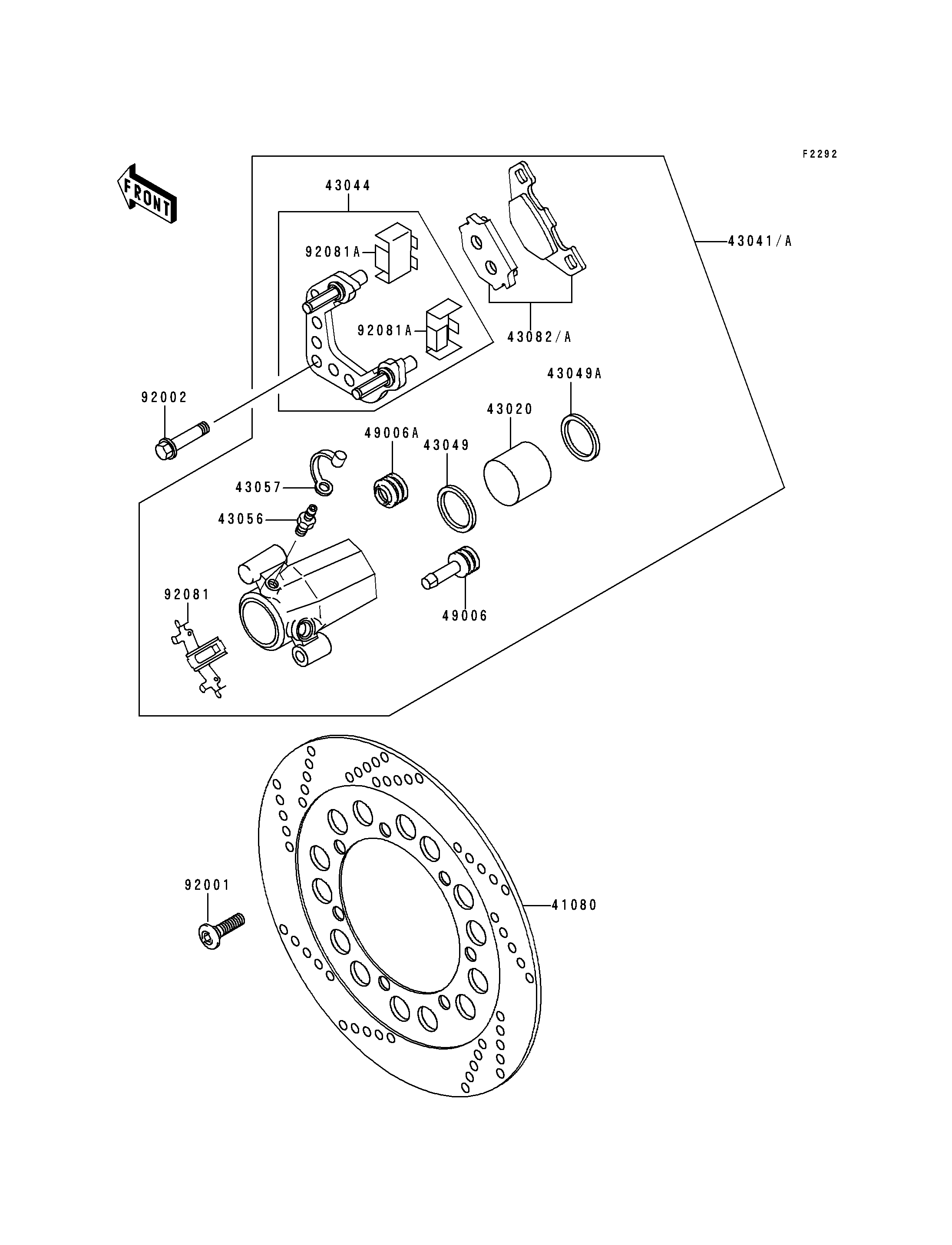

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
41080
43020
43041A
43044
43049
43049A
43056
43057
43082
49006
49006A
92001
92002
92081
92081A
92081A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DISC,FR,SILVER NO.1 | 41080 | 41080-1268-CM | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1066 | 1 | ||
CALIPER-ASSY,FR,LH,SILVER NO.1 | 43041A | 43041-1339-GN | 1 | ||
HOLDER-COMP-CALIPER | 43044 | 43044-1093 | 1 | ||
RING,PISTON SEAL | 43049 | 43049-002 | 1 | ||
PACKING,PISTON | 43049A | 43049-1028 | 1 | ||
BREATHER-BRAKE | 43056 | 43056-1054 | 1 | ||
CAP-BREATHER | 43057 | 43057-003 | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1030 | 1 | ||
BOOT,CALIPER | 49006 | 49006-1094 | 1 | ||
BOOT,CALIPER | 49006A | 49006-1095 | 1 | ||
BOLT,DISC PLATE,8X30 | 92001 | 92001-1951 | 7 | ||
BOLT,FLANGED,10X47 | 92002 | 92002-1469 | 2 | ||
SPRING,PAD | 92081 | 92081-1525 | 1 | ||
SPRING,PAD STOPPER | 92081A | 92081-1661 | 2 |
