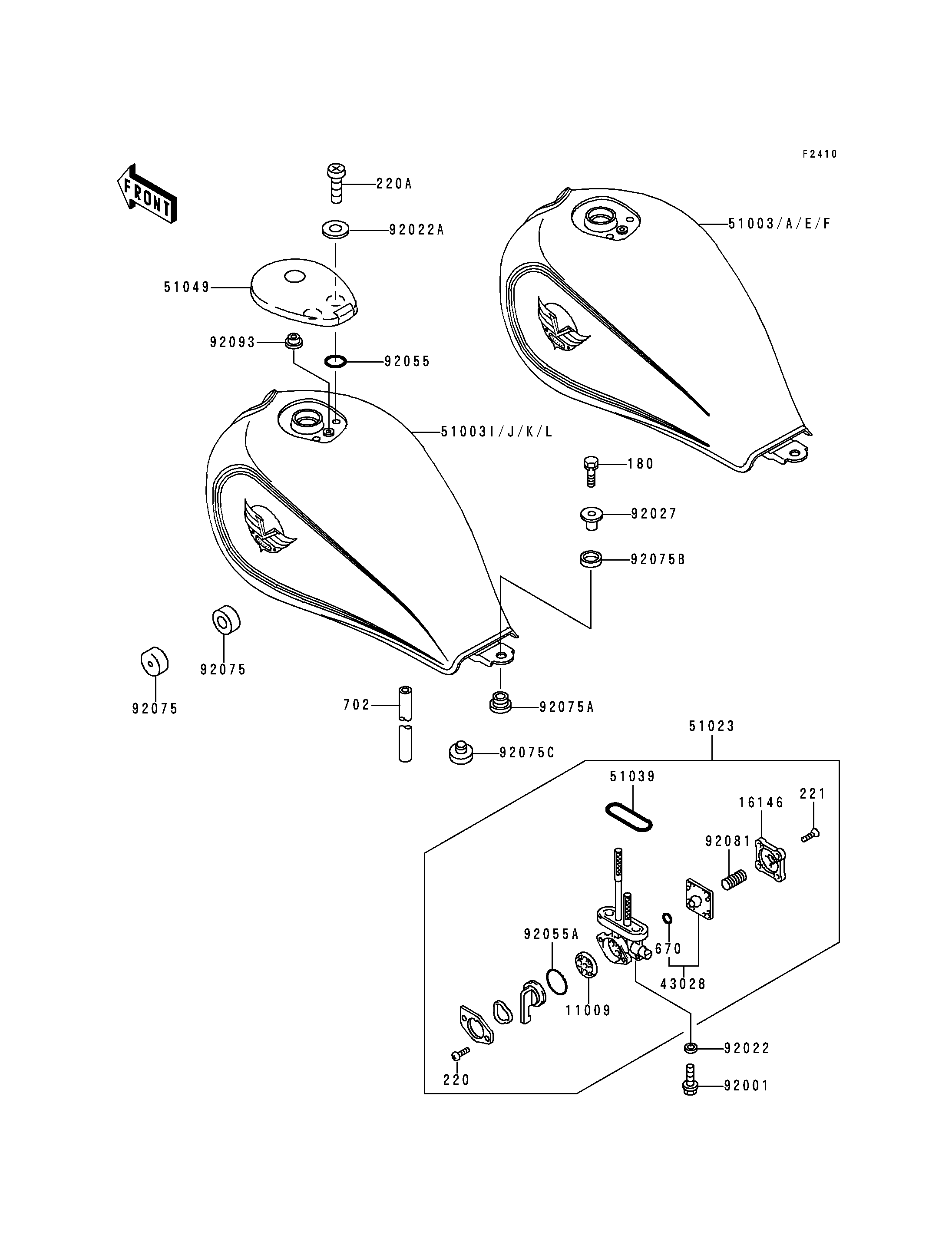

1992 Vulcan 500 - Fuel Tank(EN500-A1/A2/A3)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
16146
16146
43028
43028
180
180
220
220
220A
220A
221
221
670
670
51023
51023
51039
51039
51049
51049
92001
92001
92022
92022
92022A
92022A
92027
92027
92055
92055
92055A
92055A
92075
92075
92075
92075
92075A
92075A
92075B
92075B
92075C
92075C
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAP VALVE 11009 11009-1188 1
COVER-ASSY,TAP DIAPHRAGM 16146 16146-1010 1
DIAPHRAGM 43028 43028-1033 1
BOLT-UPSET-WS,6X25 180 180D0625 1
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220D0510 2
SCREW-CSK-CROS,4X14 221 221B0414 4
O RING,4MM 670 670B1504 1
TAP-ASSY,FUEL 51023 51023-1142 1
RING,TAP FLANGED 51039 51039-003 1
CAP-TANK,FUEL 51049 51049-1088 1
BOLT,6X20 92001 92001-1091 2
WASHER,6.2X11X1.5 92022 92022-183 2
WASHER,5.1X10X1.0 92022A 92022-1977 2
COLLAR,L=13.1 92027 92027-251 1
RING-O 92055 92055-1023 2
RING-O,TAP LEVER 92055A 92055-1085 1
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER,MALE 92075A 92075-174 1
DAMPER,FEMALE 92075B 92075-175 1
DAMPER 92075C 92075-281 1
SPRING,TAP DIAPHRAGM 92081 92081-1240 1
TANK-COMP-FUEL,RED/GRAY 51003I 51003-5213-JL 1
TANK-COMP-FUEL,BLUE/GRAY 51003J 51003-5214-JM 1
TANK-COMP-FUEL,RED/GRAY 51003K 51003-5215-JL 1
TANK-COMP-FUEL,BLUE/GRAY 51003L 51003-5216-JM 1
TUBE-RUBBER,5X8X620 702 702A05620 1
SEAL,FUEL TANK CAP 92093 92093-1030 1
