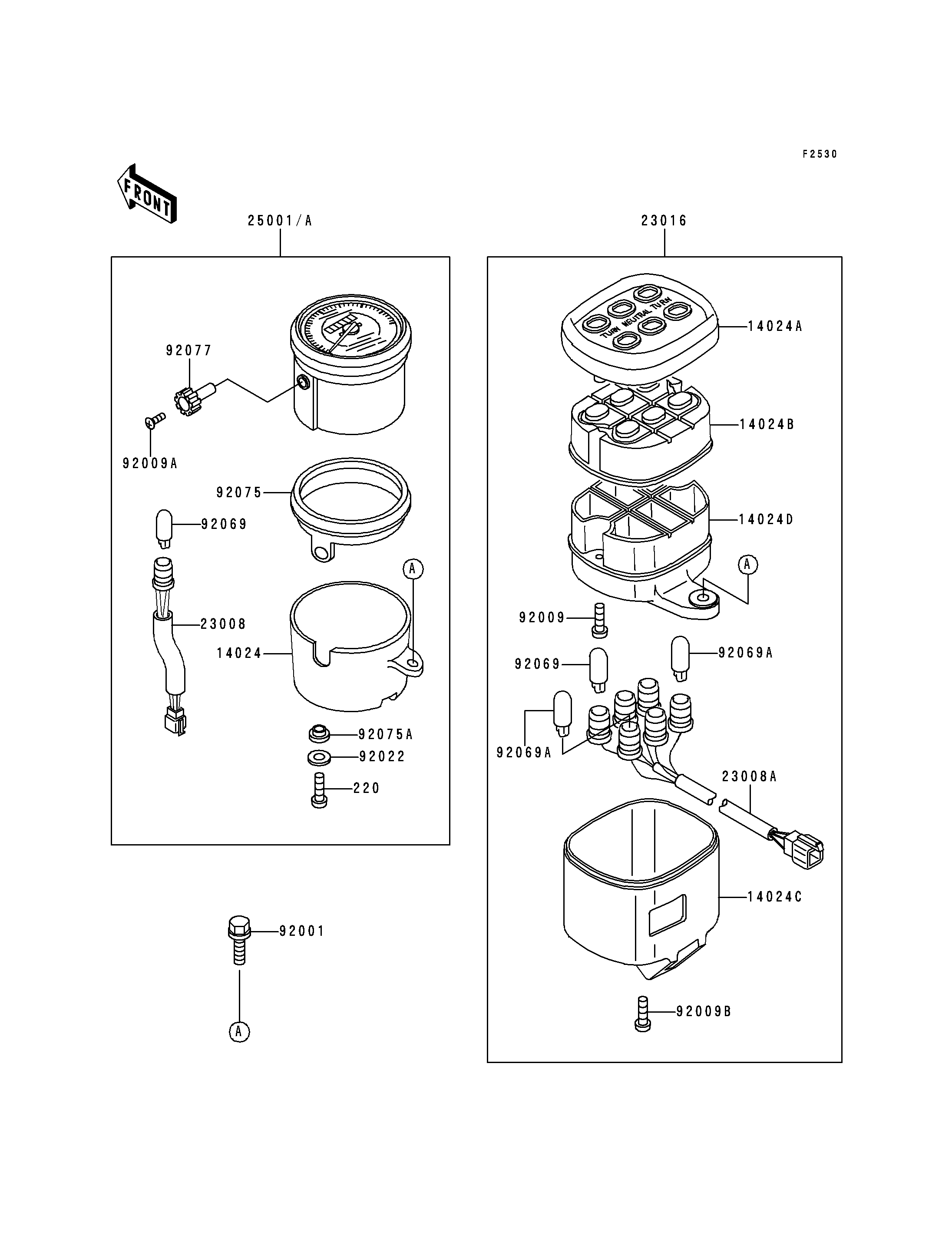

1992 Vulcan 500 - Meters

DOWNLOAD PDF
SELECT A NEW PART
220
14024
14024A
14024B
14024C
14024D
23008
23008A
23016
92001
92009
92009A
92009B
92022
92069
92069
92069A
92069A
92075
92075A
92077
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220E0408 2
COVER,SPEEDOMETER 14024 14024-1096 1
COVER,PILOT BOX,UPP 14024A 14024-1883 1
COVER,PILOT BOX,INNER 14024B 14024-1884 1
COVER,PILOT BOX,LWR 14024C 14024-1885 1
COVER,PILOT BOX,INNER 14024D 14024-1886 1
SOCKET-ASSY,SPEEDOMETER 23008 23008-1356 1
SOCKET-ASSY,PILOT BOX 23008A 23008-1418 1
LAMP-ASSY,PILOT BOX 23016 23016-1108 1
BOLT,6X20 92001 92001-1460 2
SCREW,TAPPING,4X16 92009 92009-1163 2
SCREW,2X6,BLACK 92009A 92009-1172 1
SCREW,TAPPING,4X16 92009B 92009-1601 1
WASHER,4.5X10X0.8 92022 92022-1822 2
BULB,12V 3.4W 92069 92069-1007 5
BULB,12V 1.7W 92069A 92069-1059 2
DAMPER,SHOCK,METER 92075 92075-1751 1
DAMPER,METER FITTING 92075A 92075-1753 2
KNOB,METER 92077 92077-1059 1
METER-ASSY,SPEED,MPH 25001 25001-1704 1
METER-ASSY,SPEED,KPH 25001A 25001-1731 1
