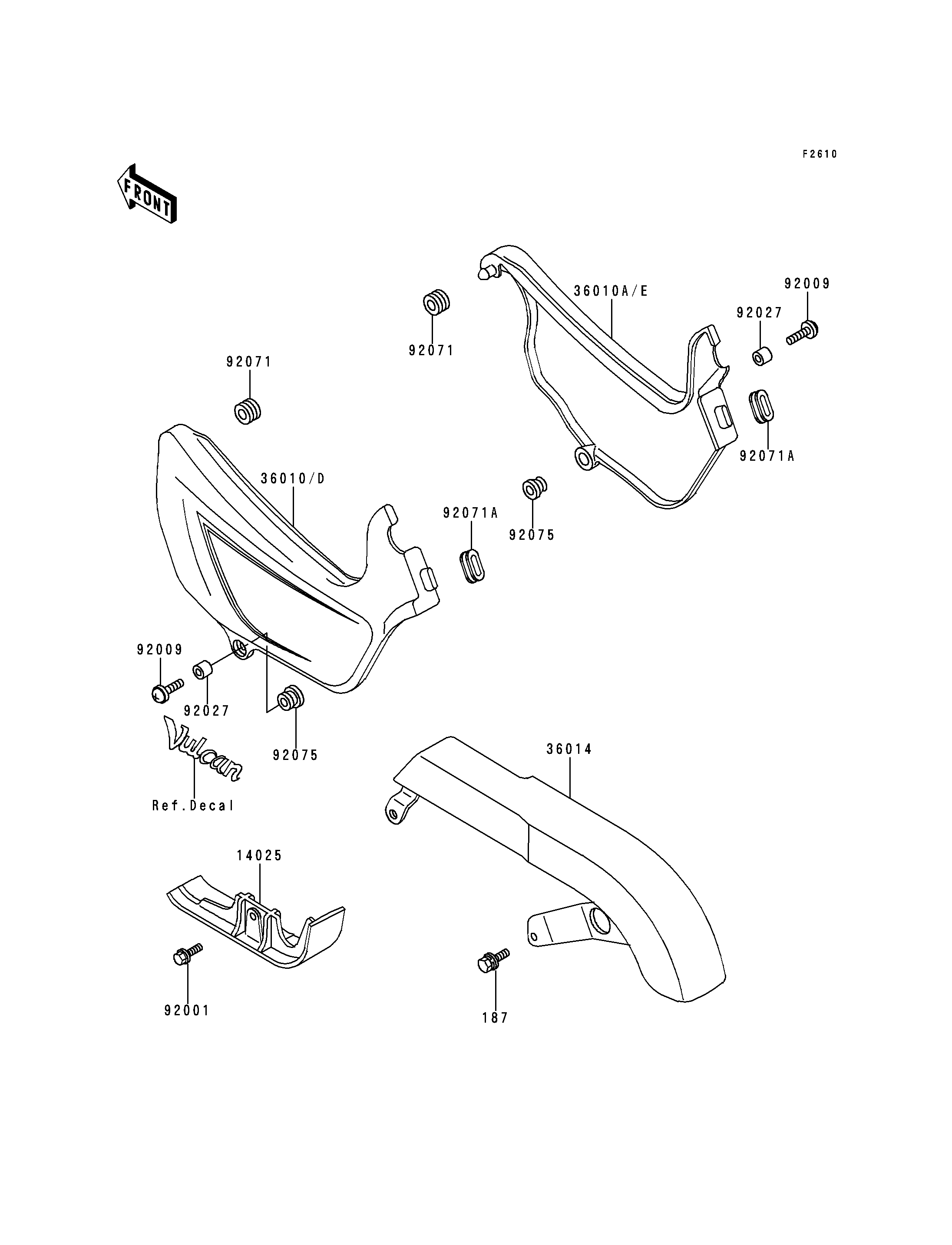

1992 Vulcan 500 - Side Covers/Chain Cover(EN500-A1/A2/A3)

187
14025
36010D
36010E
36014
92001
92009
92009
92027
92027
92071
92071
92071A
92071A
92075
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187B0616 2
COVER,DRIVE BELT 14025 14025-1381 1
COVER-SIDE,LH,C.A.BLUE 36010D 36010-5342-FC 1
COVER-SIDE,RH,C.A.BLUE 36010E 36010-5343-FC 1
CASE-CHAIN 36014 36014-1163 1
BOLT,6X16 92001 92001-1772 1
SCREW,6X22,BLACK 92009 92009-1256 2
COLLAR,6.8X10X12 92027 92027-162 2
GROMMET 92071 92071-056 2
GROMMET 92071A 92071-1190 2
DAMPER,MALE 92075 92075-174 2
COVER-SIDE,LH,C.S.RED 36010 36010-5338-GV 1
COVER-SIDE,RH,C.S.RED 36010A 36010-5339-GV 1
