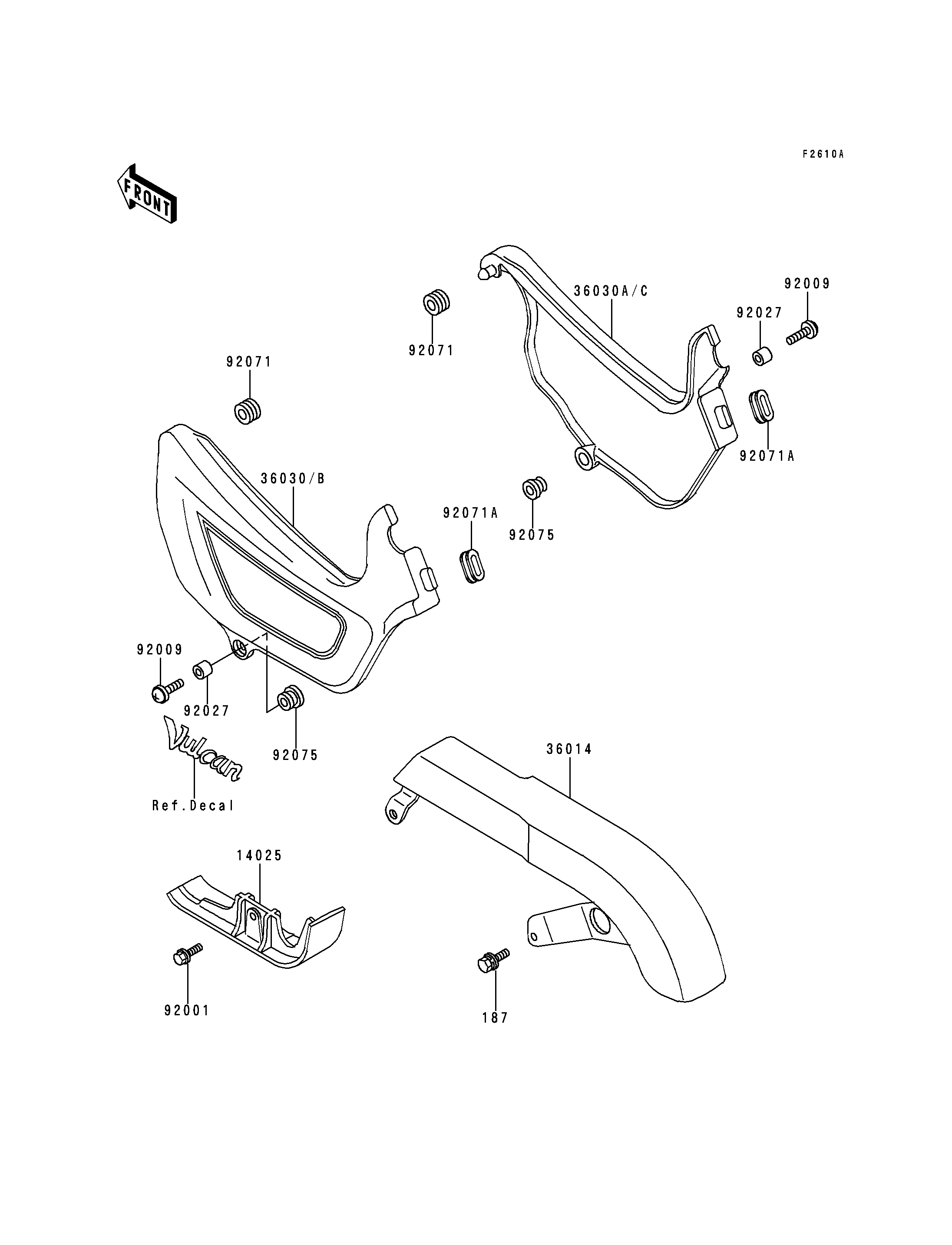

1993 Vulcan 500 - Side Covers/Chain Cover(EN500-A4)

187
14025
36014
36030B
36030C
92001
92009
92009
92027
92027
92071
92071
92071A
92071A
92075
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187B0616 2
COVER,DRIVE BELT 14025 14025-1381 1
CASE-CHAIN 36014 36014-1163 1
COVER-SIDE,LH,P.T.GREEN 36030B 36030-5129-SM 1
COVER-SIDE,RH,P.T.GREEN 36030C 36030-5130-SM 1
BOLT,6X16 92001 92001-1772 1
SCREW,6X22,BLACK 92009 92009-1256 2
COLLAR,6.8X10X12 92027 92027-162 2
GROMMET 92071 92071-056 2
GROMMET 92071A 92071-1190 2
DAMPER,MALE 92075 92075-174 2
COVER-SIDE,LH,L.V.RED 36030 36030-5127-P5 1
COVER-SIDE,RH,L.V.RED 36030A 36030-5128-P5 1
