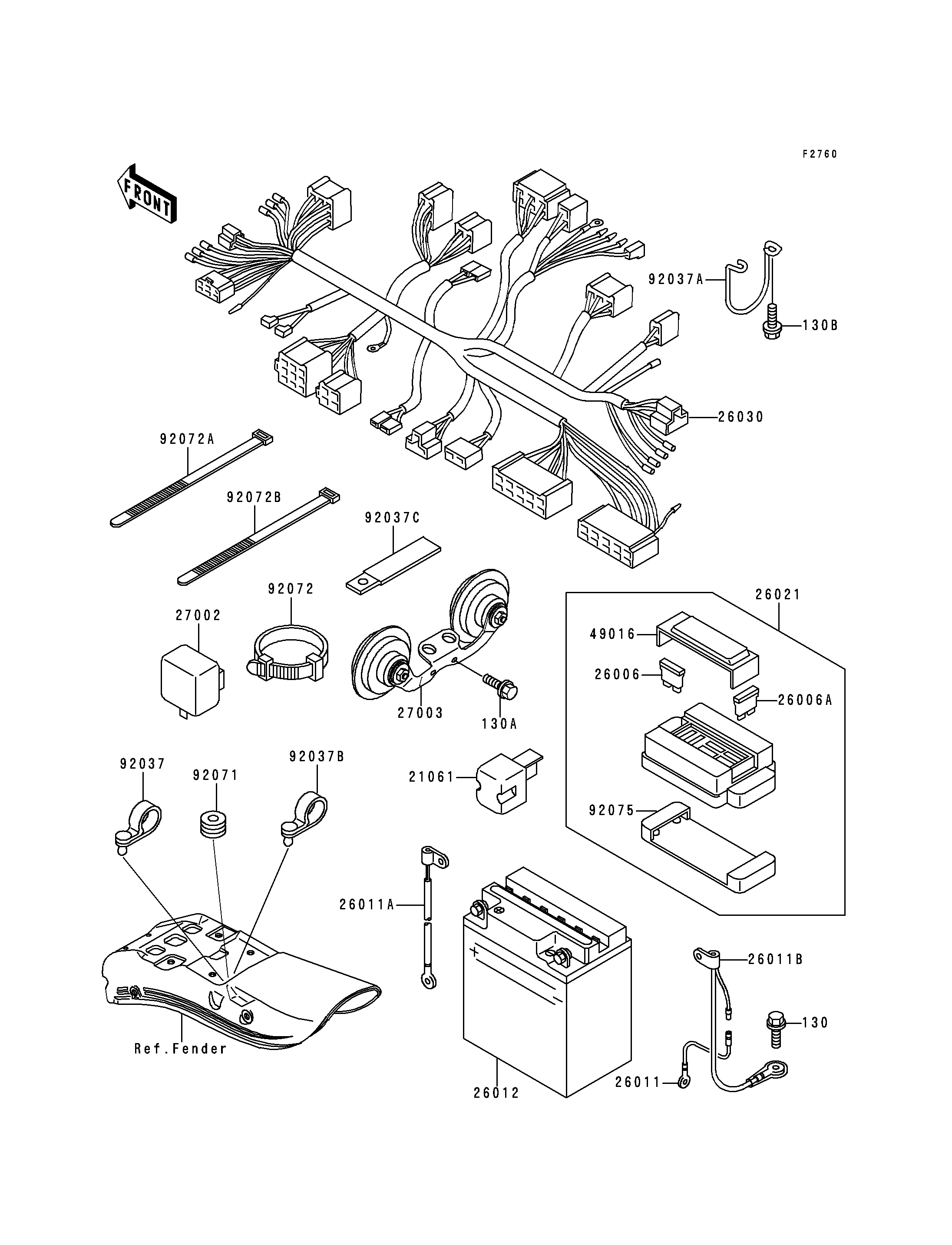

1992 Vulcan 500 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
21061
26006
26006A
26011
26011A
26011B
26012
26021
26030
27002
27003
49016
92037
92037A
92037B
92037C
92071
92072
92072A
92072B
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 1
BOLT-FLANGED,6X10,BLACK 130A 130C0610 2
BOLT-FLANGED,6X14 130B 130C0614 2
RECTIFIER 21061 21061-1003 2
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 5
WIRE-LEAD,ACCESSORY GROUND 26011 26011-1100 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1466 1
WIRE-LEAD,BATTERY(-) 26011B 26011-1467 1
BATTERY,FB12A-A,12V 12AH 26012 26012-1246 1
JUNCTION BOX 26021 26021-1077 1
HARNESS,MAIN 26030 26030-1012 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1053 1
HORN 27003 27003-1323 1
COVER-SEAL,FUSE 49016 49016-1125 1
CLAMP,HOSE 92037 92037-1163 1
CLAMP,HARNESS 92037A 92037-1663 1
CLAMP 92037B 92037-1903 2
CLAMP 92037C 92037-1993 1
GROMMET 92071 92071-056 1
BAND,L=149 92072 92072-031 4
BAND,L=185 92072A 92072-1195 8
BAND,L=365 92072B 92072-1197 2
DAMPER,JUNCTION BOX 92075 92075-1688 1
