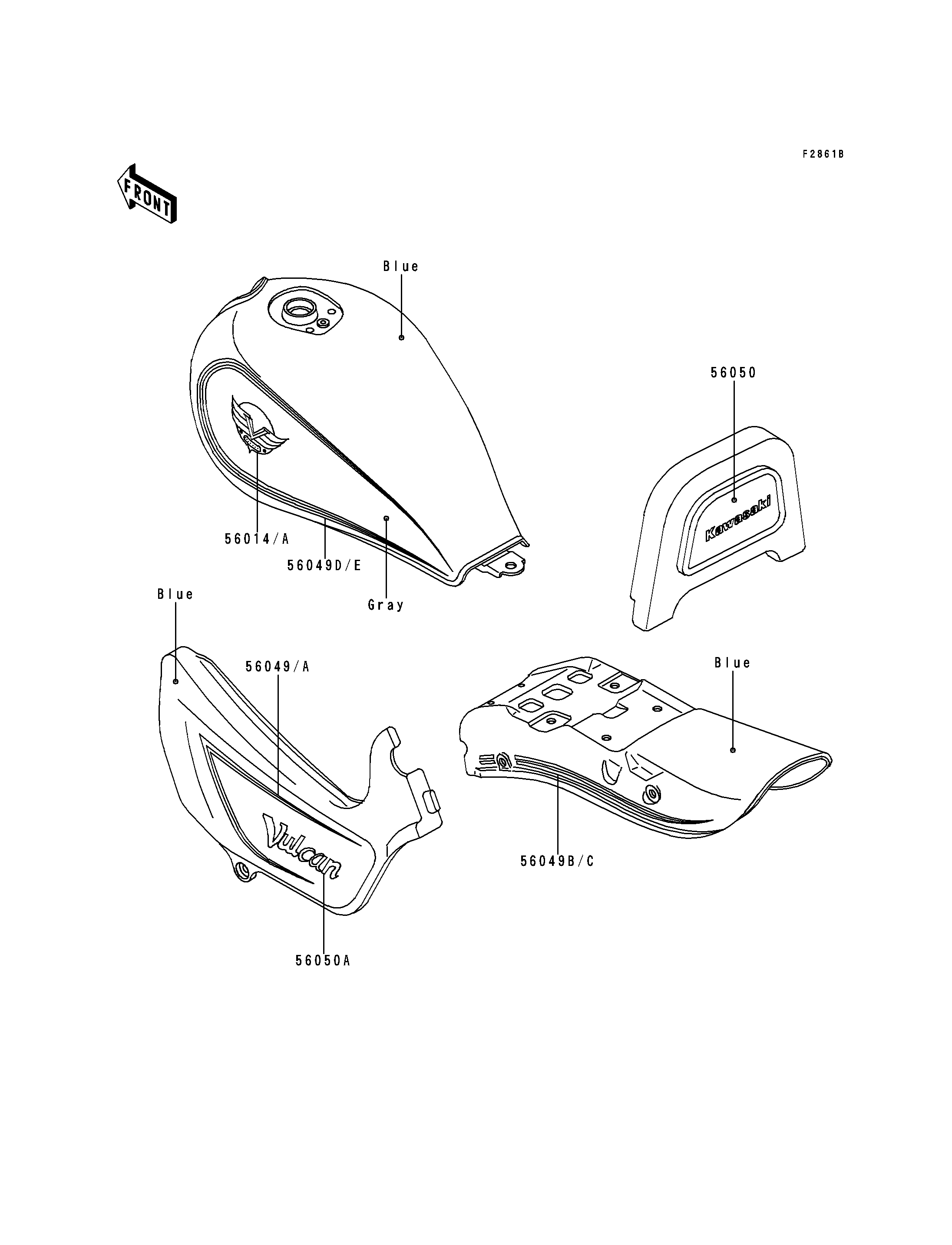

1992 Vulcan 500 - Decals(EN500-A2/A3)(Blue/Gray)

56014
56014A
56049
56049A
56049B
56049C
56049D
56049E
56050
56050A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,LH 56014 56014-1250 1
EMBLEM,FUEL TANK,RH 56014A 56014-1258 1
PATTERN,SIDE COVER,LH 56049 56049-1544 1
PATTERN,SIDE COVER,RH 56049A 56049-1545 1
PATTERN,RR FENDER,LH 56049B 56049-1546 1
PATTERN,RR FENDER,RH 56049C 56049-1547 1
PATTERN,FUEL TANK,LH 56049D 56049-1776 1
PATTERN,FUEL TANK,RH 56049E 56049-1777 1
MARK,BACK REST 56050 56050-1493 1
MARK,SIDE COVER,VULCAN 56050A 56050-1496 2
