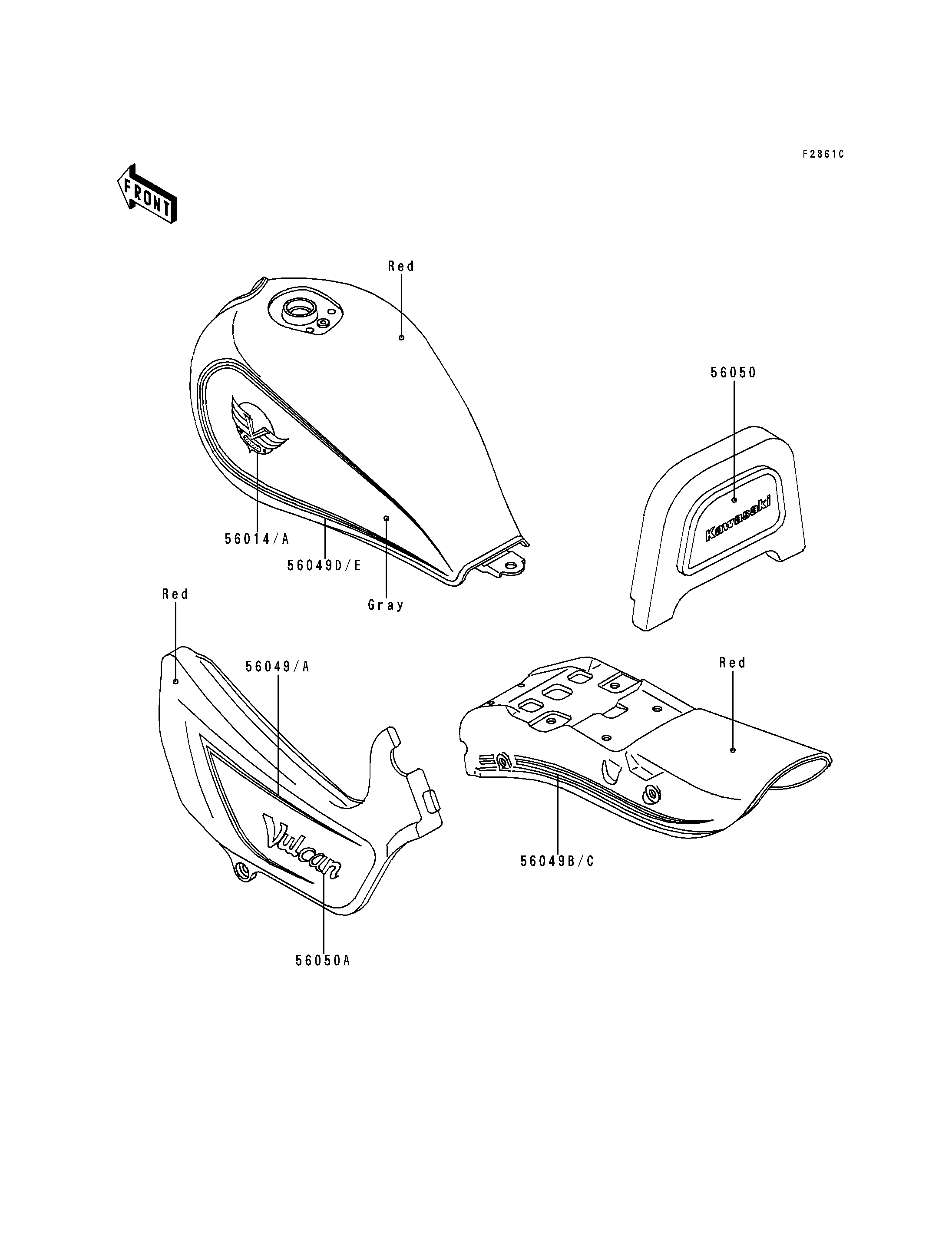

1992 Vulcan 500 - Decals(EN500-A2/A3)(Red/Gray)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,LH 56014 56014-1250 1
EMBLEM,FUEL TANK,RH 56014A 56014-1258 1
PATTERN,SIDE COVER,LH 56049 56049-1532 1
PATTERN,SIDE COVER,RH 56049A 56049-1533 1
PATTERN,RR FENDER,LH 56049B 56049-1534 1
PATTERN,RR FENDER,RH 56049C 56049-1535 1
PATTERN,FUEL TANK,LH 56049D 56049-1774 1
PATTERN,FUEL TANK,RH 56049E 56049-1775 1
MARK,BACK REST 56050 56050-1493 1
MARK,SIDE COVER,VULCAN 56050A 56050-1496 2
