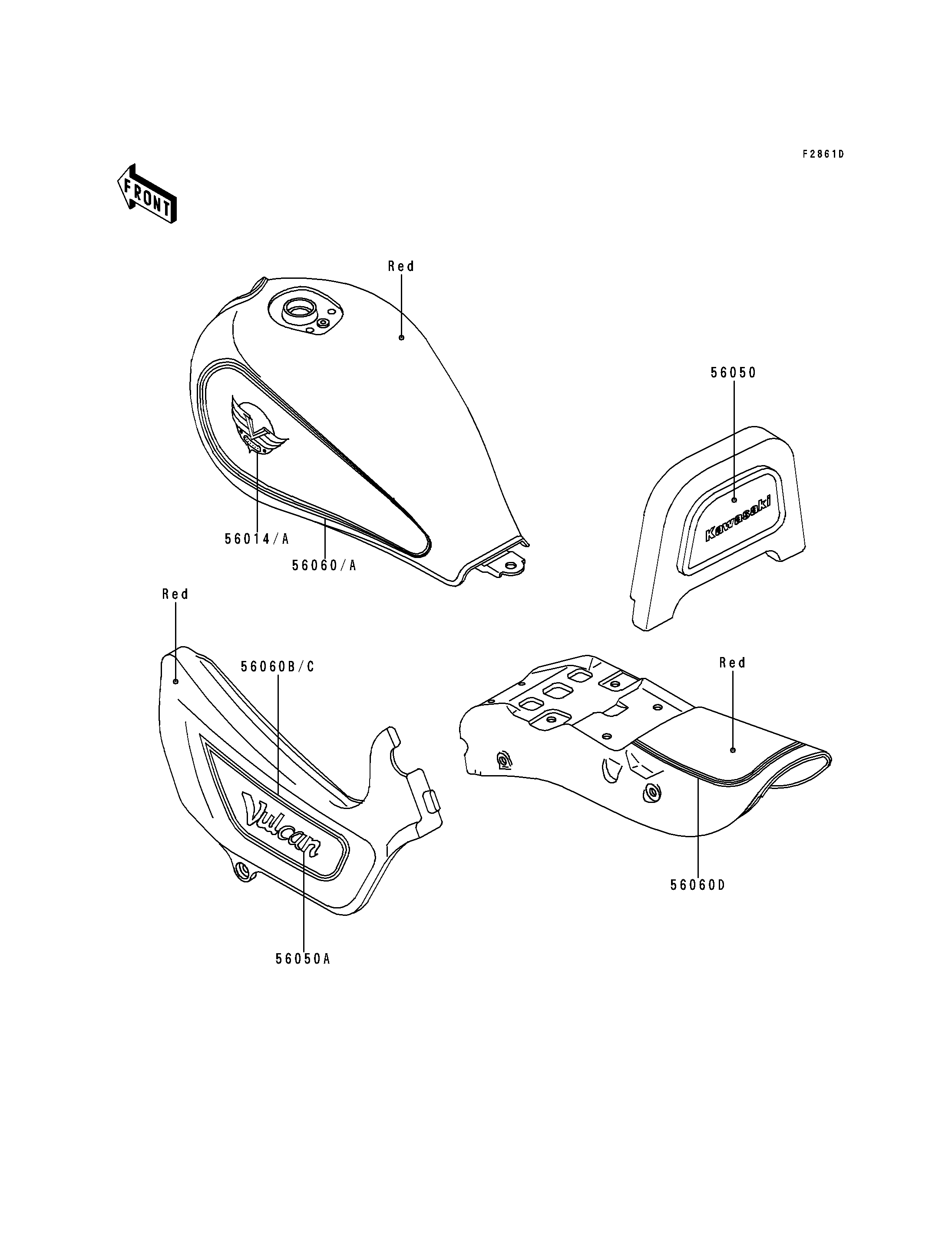

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,LH 56014 56014-1250 1
EMBLEM,FUEL TANK,RH 56014A 56014-1258 1
MARK,BACK REST 56050 56050-1493 1
MARK,SIDE COVER,VULCAN 56050A 56050-1496 2
PATTERN,FUEL TANK,LH 56060 56060-1306 1
PATTERN,FUEL TANK,RH 56060A 56060-1307 1
PATTERN,SIDE COVER,LH 56060B 56060-1308 1
PATTERN,SIDE COVER,RH 56060C 56060-1309 1
PATTERN,RR FENDER 56060D 56060-1310 1
