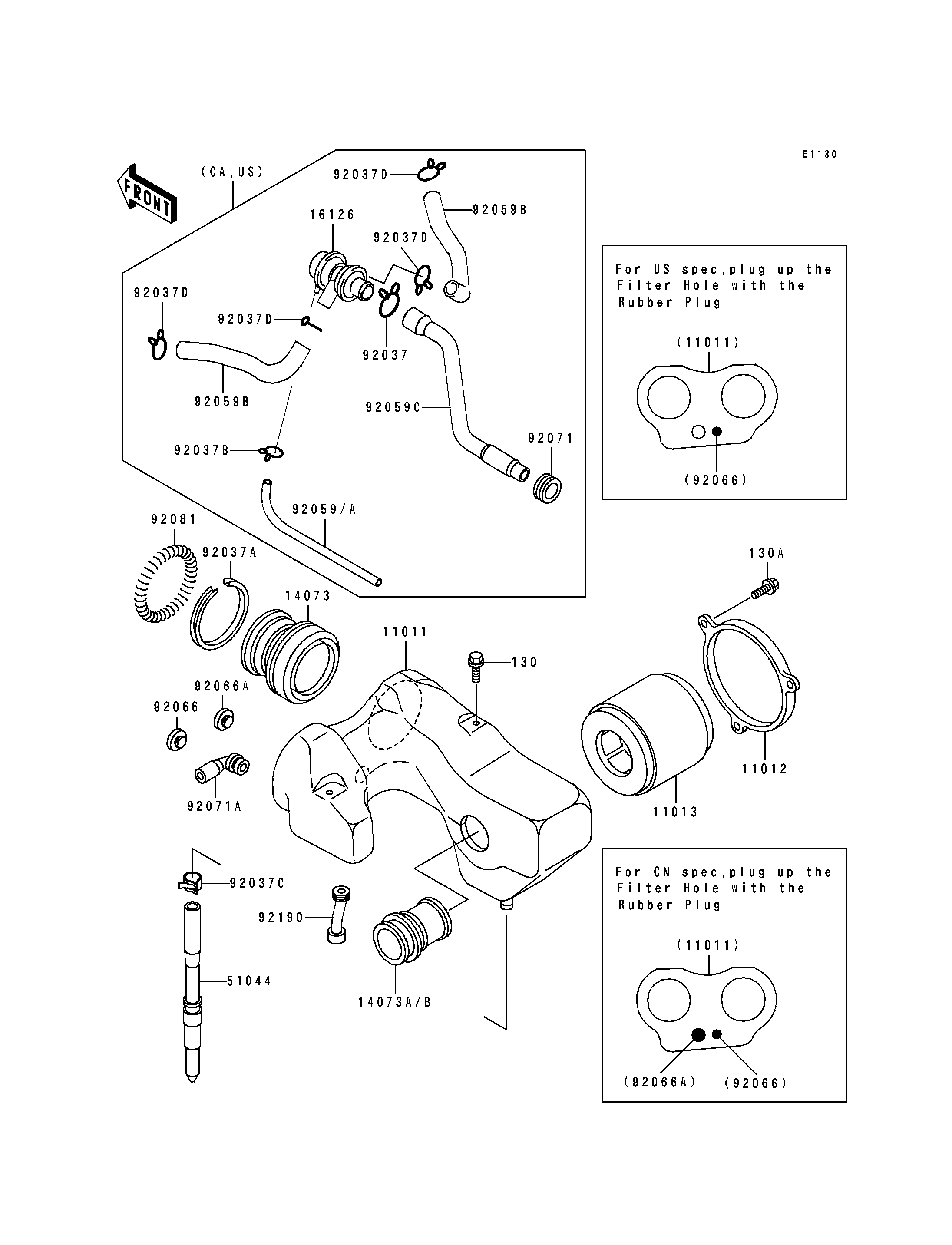

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER | 11011 | 11011-1331 | 1 | ||
| CAP,AIR FILTER | 11012 | 11012-1727 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1185 | 1 | ||
| DUCT,CARBURETOR | 14073 | 14073-1413 | 2 | ||
| DUCT,AIR INTAKE | 14073A | 14073-1425 | 1 | CAUS | |
| DUCT,AIR INTAKE | 14073B | 14073-1439 | 1 | CN | |
| VALVE,AIR SWITCH | 16126 | 16126-1014 | 1 | CAUS | |
| TUBE-ASSY,DRAIN | 51044 | 51044-1084 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1076 | 1 | CAUS | |
| CLAMP,69MM | 92037A | 92037-1631 | 2 | ||
| CLAMP | 92037B | 92037-1712 | 1 | CAUS | |
| CLAMP | 92037C | 92037-1861 | 1 | ||
| CLAMP,TUBE | 92037D | 92037-213 | 4 | CAUS | |
| TUBE,4X9X220 | 92059 | 92059-1040 | 1 | CA | |
| TUBE,4X9X290 | 92059A | 92059-1043 | 1 | US | |
| TUBE,AIR SWITCH VALVE | 92059B | 92059-1529 | 2 | CAUS | |
| TUBE,AIR SWITCH VALVE | 92059C | 92059-1530 | 1 | CAUS | |
| PLUG,17MM | 92066 | 92066-1320 | 1 | CNUS | |
| PLUG,25MM | 92066A | 92066-1321 | 1 | CN | |
| GROMMET,AIR FILTER | 92071 | 92071-1028 | 1 | CAUS | |
| GROMMET,AIR FILTER | 92071A | 92071-1114 | 1 | CA | |
| SPRING,COIL,BLACK | 92081 | 92081-1457 | 2 | ||
| TUBE,BREATHER | 92190 | 92190-1071 | 1 | ||
| BOLT-FLANGED | 130 | 130D0610 | 2 | ||
| BOLT-FLANGED | 130A | 130D0612 | 3 |
| CASE-AIR FILTER | |
| REF # | 11011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR FILTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT-AIR FILTER | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,CARBURETOR | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR INTAKE | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| DUCT,AIR INTAKE | |
| REF # | 14073B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| VALVE,AIR SWITCH | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| TUBE-ASSY,DRAIN | |
| REF # | 51044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| CLAMP,69MM | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| CLAMP | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | |
| TUBE,4X9X220 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,4X9X290 | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TUBE,AIR SWITCH VALVE | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| TUBE,AIR SWITCH VALVE | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG,17MM | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| PLUG,25MM | |
| REF # | 92066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| GROMMET,AIR FILTER | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| GROMMET,AIR FILTER | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SPRING,COIL,BLACK | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,BREATHER | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
