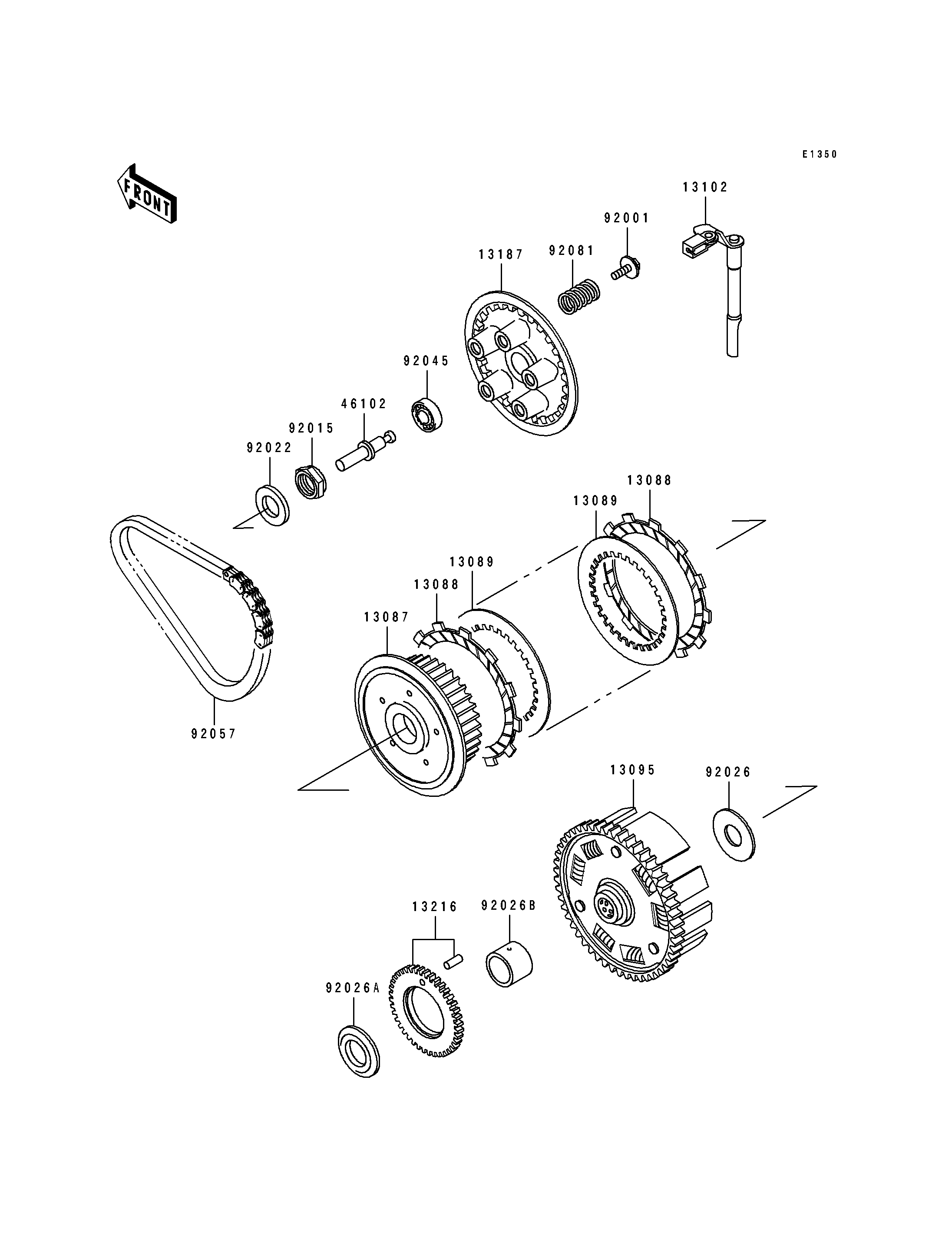

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-1162 1
PLATE-FRICTION 13088 13088-1013 7
PLATE-CLUTCH,T=2.0 13089 13089-026 6
HOUSING-COMP-CLUTCH 13095 13095-1158 1
RELEASE-COMP-CLUTCH 13102 13102-1108 1
PLATE-CLUTCH OPERATING 13187 13187-1012 1
GEAR-COMP,40T 13216 13216-1066 1
ROD,CLUTCH 46102 46102-1134 1
BOLT,FLANGED,6X18 92001 92001-1066 5
NUT,20MM 92015 92015-1555 1
WASHER,20.3X36X2.3 92022 92022-1116 1
SPACER,25.5X47X2.5 92026 92026-022 1
SPACER 92026A 92026-1242 1
SPACER,25X30X23.5 92026B 92026-1243 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
CHAIN,PRIMARY 92057 92057-1229 1
SPRING,CLUTCH 92081 92081-1864 5
