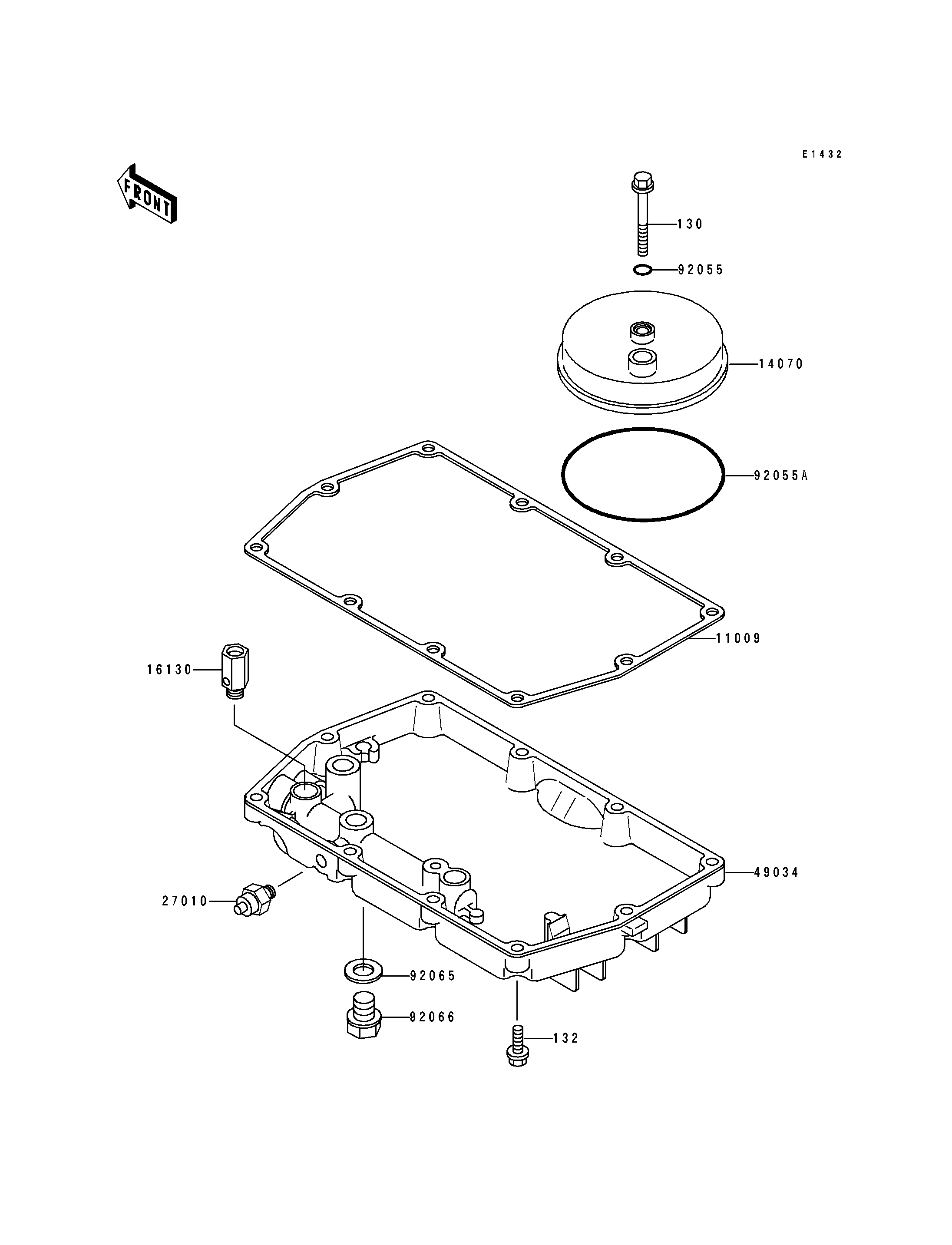

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11009 11009-1837 1
BODY-BREATHER 14070 14070-1082 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PAN-OIL 49034 49034-1108 1
RING-O,6MM 92055 92055-1089 1
RING-O,BREATHER BODY 92055A 92055-1284 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
BOLT-FLANGED 130 130Y0645 1
BOLT-FLANGED-SMALL 132 132Y0625 10
