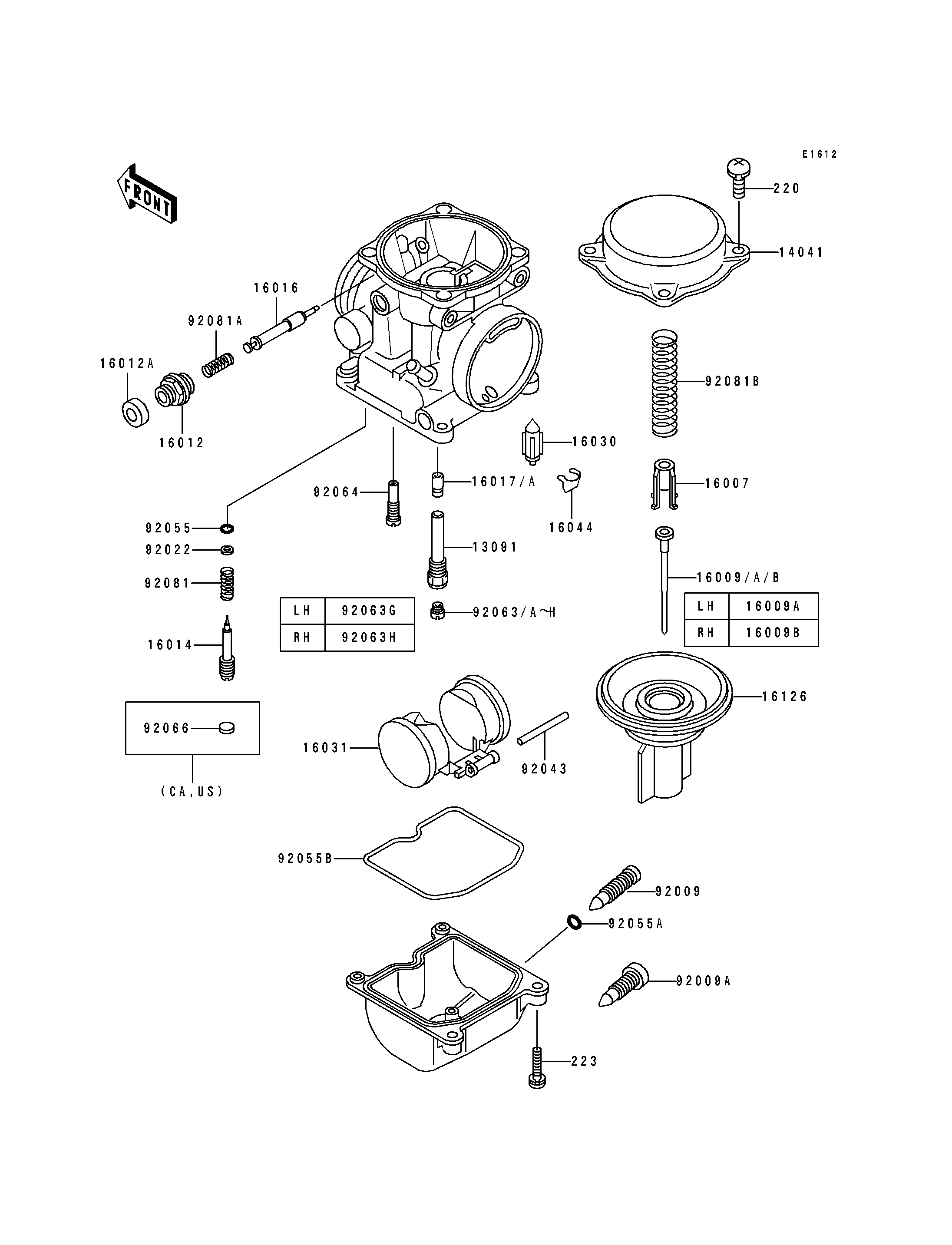

1995 Vulcan 500 - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1425 2
COVER-COMP,MIXING CHAMBER 14041 14041-1065 2
SEAT-SPRING,VALVE 16007 16007-1117 2
NEEDLE-JET,N60Q 16009 16009-1615 2 CAUS
NEEDLE-JET,N60T 16009A 16009-1616 1 CN
NEEDLE-JET,N60S 16009B 16009-1617 1 CN
CAP-STARTER PLUNGER 16012 16012-1051 2
CAP-STARTER PLUNGER 16012A 16012-1052 2
SCREW-PILOT AIR 16014 16014-1054 2
PLUNGER,STARTER 16016 16016-1077 2
JET-NEEDLE 16017 16017-1059 2 CAUS
JET-NEEDLE,#6 16017A 16017-1208 2 CN
VALVE-FLOAT 16030 16030-1007 2
FLOAT 16031 16031-1056 2
CLAMP,FLOAT VALVE 16044 16044-007 2
VALVE,VACUUM,60PS 16126 16126-1173 2
SCREW,DRAIN,M6X1.0 92009 92009-1095 2
SCREW,DRAIN,M6X0.75 92009A 92009-1551 2
WASHER,PLAIN 92022 92022-1003 2
PIN,FLOAT 92043 92043-1207 2
RING-O,PILOT ADJUST 92055 92055-1002 2
RING-O,DRAIN SCREW 92055A 92055-1053 2
RING-O,FLOAT CHAMBER 92055B 92055-1222 2
JET-MAIN,2ND,#100 92063 92063-1008 2 CN
JET-MAIN,2ND,#105 92063A 92063-1009 2 CN
JET-MAIN,#118 92063B 92063-1071 2 CAUS
JET-MAIN,#120 92063C 92063-1072 2 CAUS
JET-MAIN,#110 92063D 92063-1114 2 (RACING USE ONLY)
JET-MAIN,#102 92063E 92063-1115 2 CN
JET-MAIN,#108 92063F 92063-1116 2 (RACING USE ONLY)
JET-MAIN,#112 92063G 92063-1117 1 CAUS
JET-MAIN,#115 92063H 92063-1118 1 CAUS
JET-PILOT,#35 92064 92064-1101 2
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 2 CAUS
SPRING,PILOT ADJUST SCREW 92081 92081-1002 2
SPRING,STARTER PLUNGER 92081A 92081-1618 2
SPRING,VACUUM VALVE 92081B 92081-1874 2
SCREW-PAN-CROS 220 220B0408 7 CAUS
SCREW-PAN-CROS 220 220B0408 8 CN
SCREW-PAN-WS-CROS 223 223C0416 8
CIRCLIP-TYPE-E,4MM 482 482L4000 2
