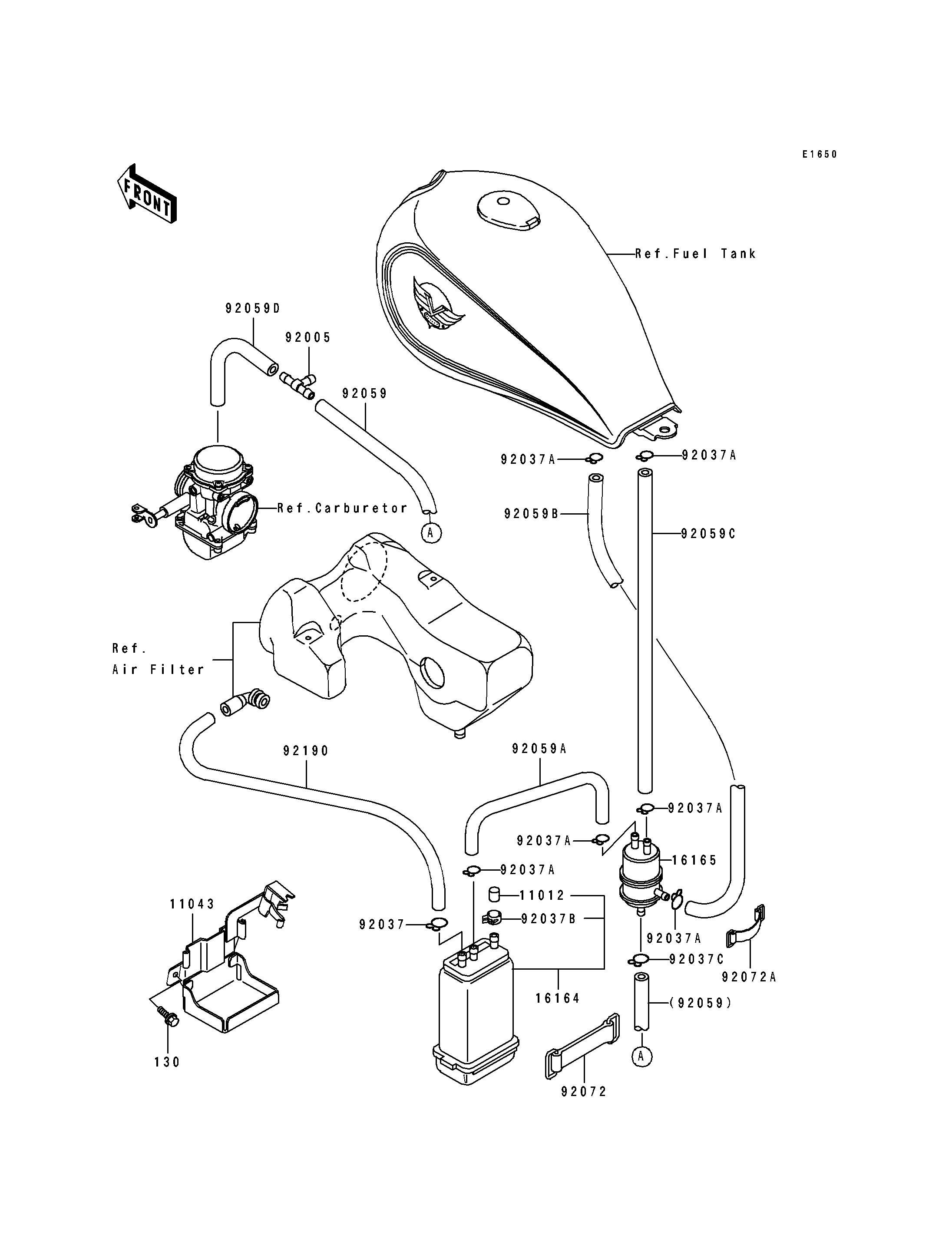

1995 Vulcan 500 - Fuel Evaporative System
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
BRACKET,CANISTER | 11043 | 11043-1184 | 1 | CA | |
CANISTER | 16164 | 16164-1054 | 1 | CA | |
SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
FITTING,TUBE,T-TYPE | 92005 | 92005-1017 | 1 | CA | |
CLAMP,HOSE | 92037 | 92037-1104 | 1 | CA | |
CLAMP,TUBE | 92037A | 92037-147 | 6 | CA | |
CLAMP,CANISTER | 92037B | 92037-1512 | 1 | CA | |
CLAMP | 92037C | 92037-1712 | 1 | CA | |
TUBE,4X9X650,WHITE | 92059 | 92059-1405 | 1 | CA | |
TUBE,5X10X170,BLUE | 92059A | 92059-1496 | 1 | CA | |
TUBE,5X10X610,RED | 92059B | 92059-1526 | 1 | CA | |
TUBE,5X10X550,BLUE | 92059C | 92059-1589 | 1 | CA | |
TUBE,4X9X100,WHITE | 92059D | 92059-1591 | 1 | CA | |
BAND,L=142.1 | 92072 | 92072-006 | 1 | CA | |
BAND,L=50 | 92072A | 92072-066 | 1 | CA | |
TUBE,7X12X260,GREEN | 92190 | 92190-1141 | 1 | CA | |
BOLT-FLANGED | 130 | 130J0610 | 2 | CA |
