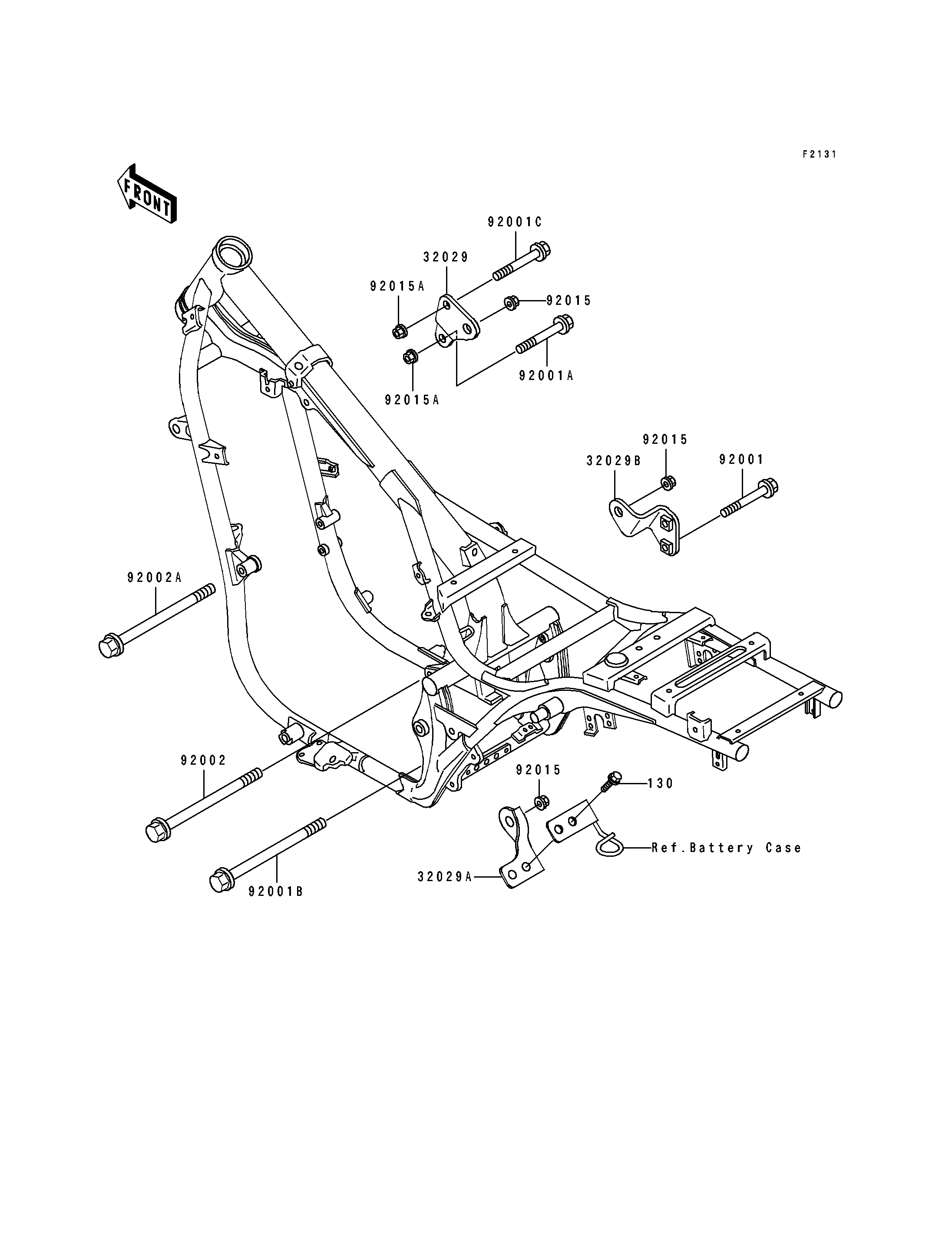

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,FR,RH 32029 32029-1377 1
BRACKET-ENGINE,RR,LWR,RH 32029A 32029-1379 1
BRACKET-ENGINE,RR,UPP,RH 32029B 32029-1727 1
BOLT,FLANGED,8X45 92001 92001-1613 2
BOLT,FLANGED,8X60,BLACK 92001A 92001-1615 1
BOLT,FLANGED,10X180 92001B 92001-1621 1
BOLT,FLANGED,8X55,BLACK 92001C 92001-1641 1
BOLT,FLANGED,10X170 92002 92002-1470 1
BOLT,FLANGED,10X230 92002A 92002-1531 1
NUT,FLANGED,10MM 92015 92015-1180 3
NUT,FLANGED,8MM,BLACK 92015A 92015-1251 2
BOLT-FLANGED,8X16,BLACK 130 130J0816 2
