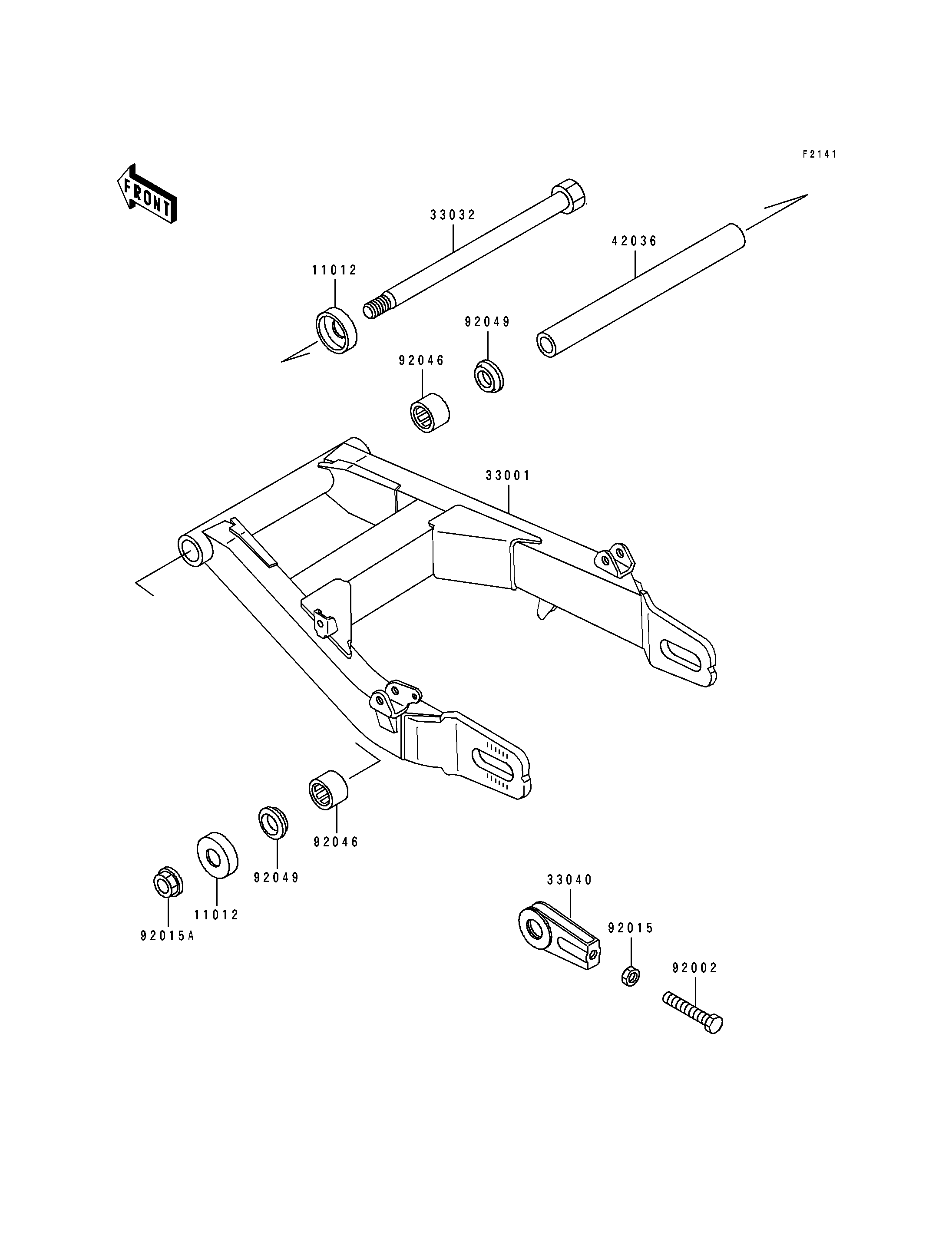

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1029 2
ARM-COMP-SWING,BLACK 33001 33001-1352-10 1
SHAFT-SWING ARM 33032 33032-1113 1
ADJUSTER-CHAIN 33040 33040-043 2
SLEEVE,SWING ARM 42036 42036-1018 1
BOLT,CHAIN ADJUSTER,8X50 92002 92002-1076 2
NUT,8MM 92015 92015-1364 2
NUT,14MM 92015A 92015-1411 1
BEARING-NEEDLE,HK2216 92046 92046-1115 2
SEAL-OIL,MHA22284 92049 92049-1059 2
