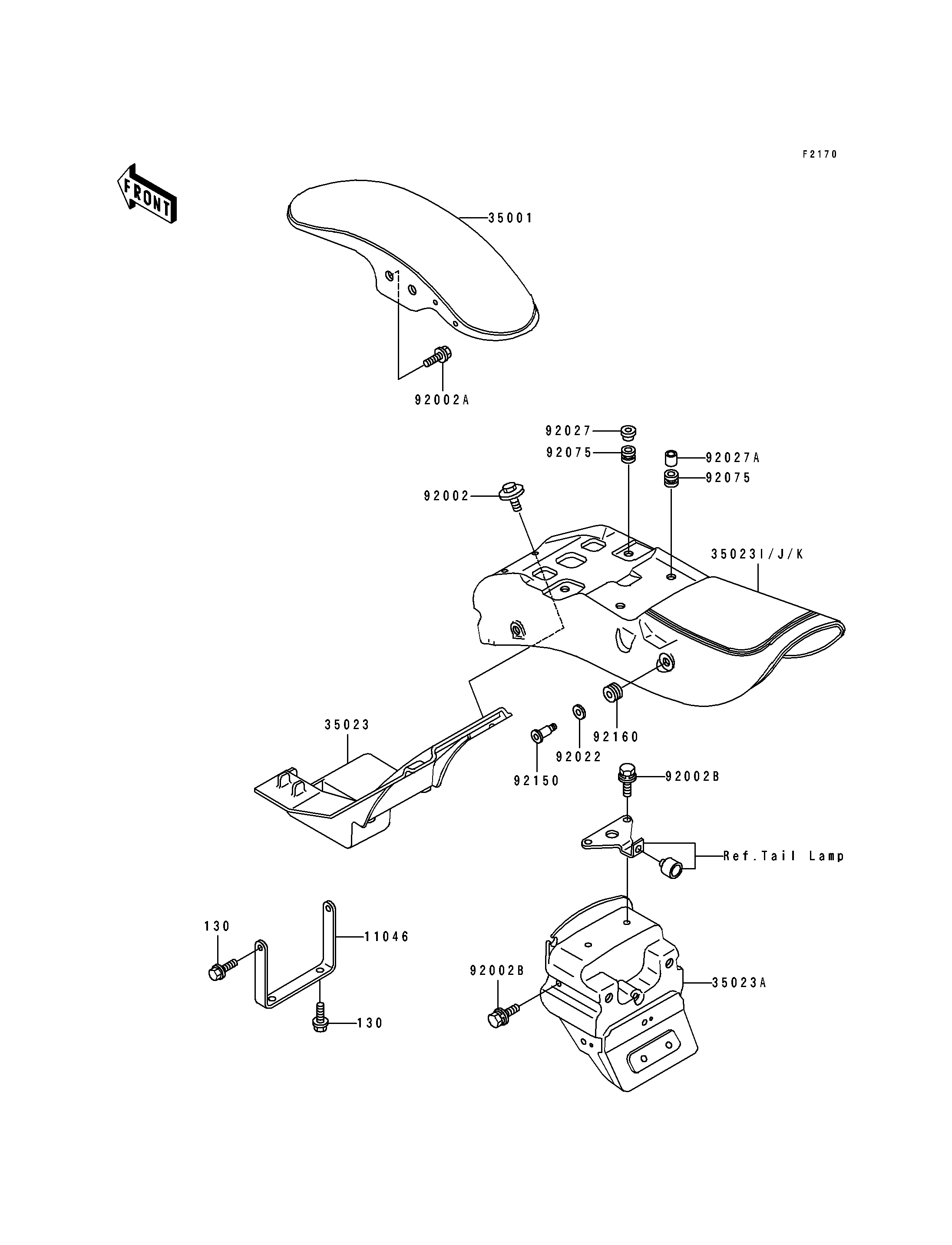

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REAR FENDER,FR 11046 11046-1913 1
FENDER-ASSY-FRONT 35001 35001-1140 1
FENDER-REAR,FR 35023 35023-1259 1
FENDER-REAR,RR,LWR 35023A 35023-1261 1
FENDER-REAR,RR,UPP,EBONY/SILVE 35023I 35023-5072-5F 1 CAUS
FENDER-REAR,RR,UPP,RED/GRAY 35023J 35023-5073-JG 1
BOLT,6X16 92002 92002-1188 2
BOLT,FLANGED,8X16 92002A 92002-1200 4
BOLT,6X16 92002B 92002-1242 4
WASHER 92022 92022-107 2
COLLAR,L=9 92027 92027-1188 2
COLLAR,6.8X10X8.5 92027A 92027-129 2
DAMPER 92075 92075-1634 4
BOLT 92150 92150-1413 2
DAMPER 92160 92160-1012 2
BOLT-FLANGED,6X10 130 130H0610 4
