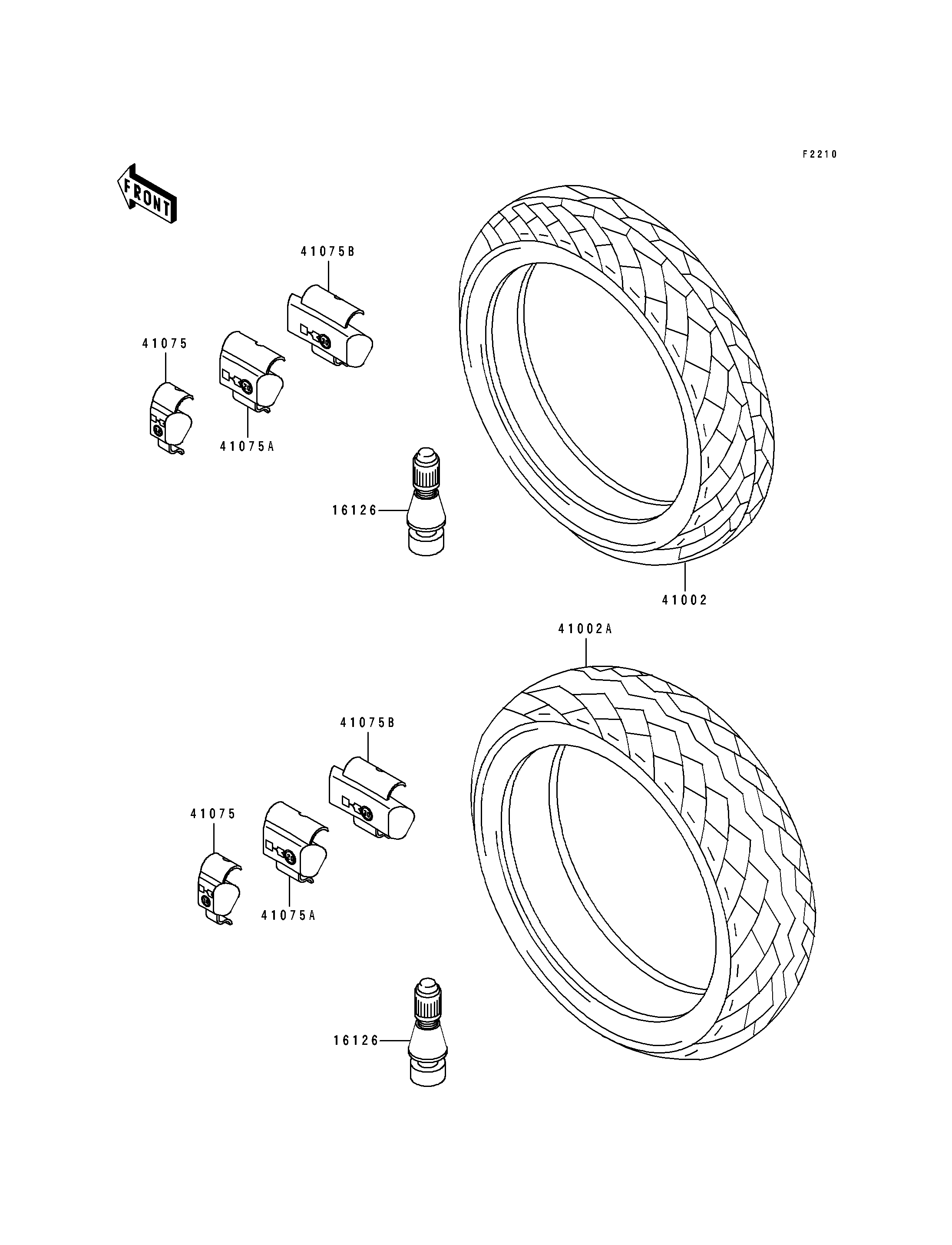

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 16126 16126-1140 2
TIRE,FR,100/90-19 57S,G523(BS) 41002 41002-1527 1
TIRE,RR,140/90-15 70S,G524(BS) 41002A 41002-1728 1
BALANCER-WHEEL,10G,SILVER 41075 41075-1014 AR
BALANCER-WHEEL,20G,SILVER 41075A 41075-1015 AR
BALANCER-WHEEL,30G,SILVER 41075B 41075-1016 AR
