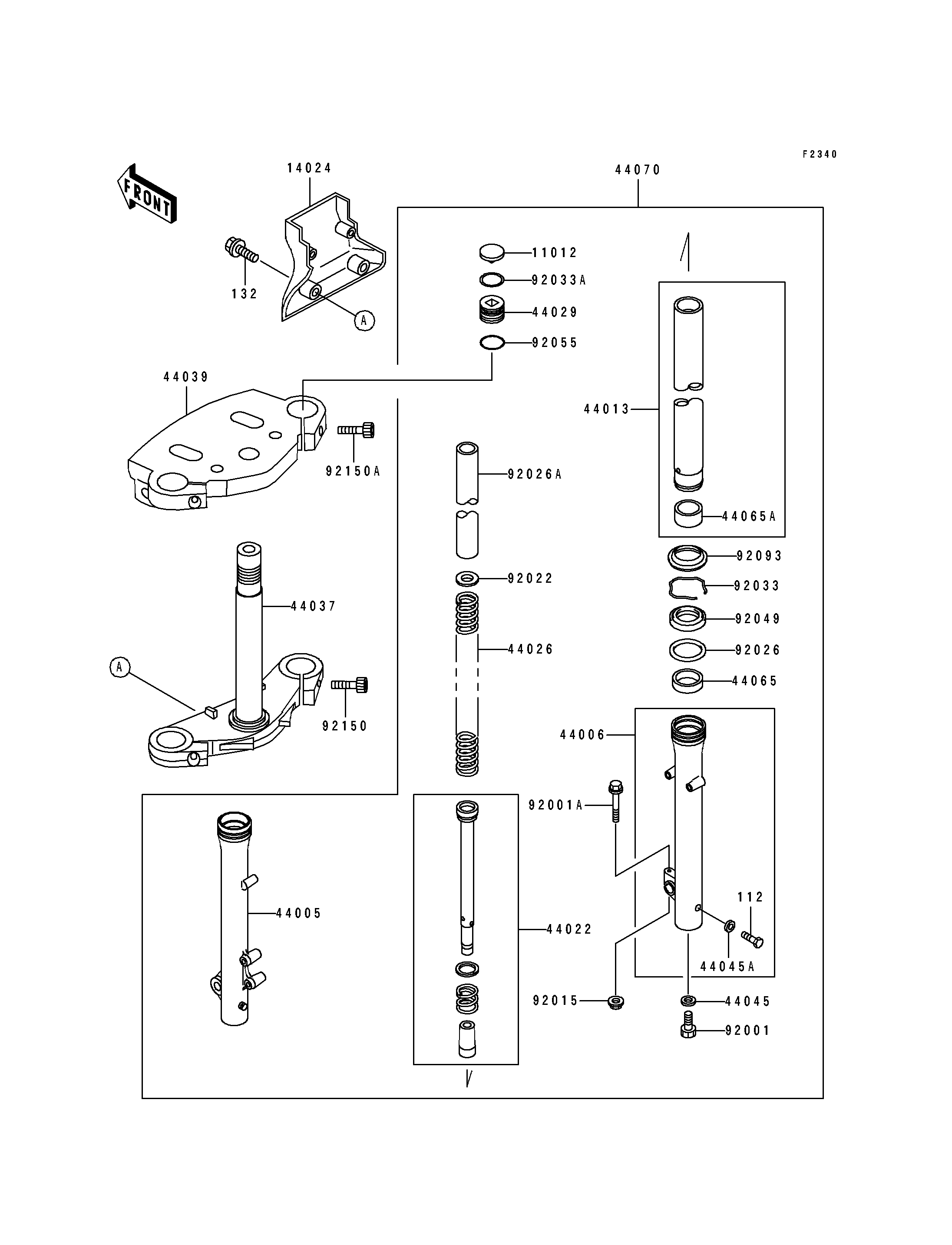

1995 Vulcan 500 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FORK TOP 11012 11012-1689 2
COVER 14024 14024-1900 1
PIPE-LEFT FORK OUTER 44005 44005-1230 1
PIPE-RIGHT FORK OUTER 44006 44006-1230 1
PIPE-FORK INNER 44013 44013-1286 2
CYLINDER-FORK 44022 44022-1178 2
SPRING-FRONT FORK 44026 44026-1464 2
SEAT-FORK SPRING 44029 44029-1124 2
HOLDER-FORK UNDER 44037 44037-1265 1
HOLDER-FORK UPPER 44039 44039-1198 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
GASKET,DRAIN PLUG 44045A 44045-052 2
BUSHING-FRONT FORK 44065 44065-1068 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1069 2
DAMPER-ASSY,FORK 44070 44070-5031 1
BOLT,FORK CYLINDER 92001 92001-1464 2
BOLT,FLANGED,8X50 92001A 92001-1486 1
NUT,FLANGED,8MM 92015 92015-1055 1
WASHER 92022 92022-1702 2
SPACER,FORK 92026 92026-1038 2
SPACER 92026A 92026-1392 2
RING-SNAP,FORK 92033 92033-1193 2
RING-SNAP,FORK TOP 92033A 92033-1220 2
SEAL-OIL,FORK 92049 92049-1226 2
RING-O,FORK SPRING SEAT 92055 92055-1359 2
SEAL,FORK 92093 92093-1196 2
BOLT,SOCKET,10X25 92150 92150-1387 2
BOLT,SOCKET,8X30 92150A 92150-1407 2
BOLT-UPSET 112 112B0608 2
BOLT-FLANGED-SMALL 132 132E0625 2
