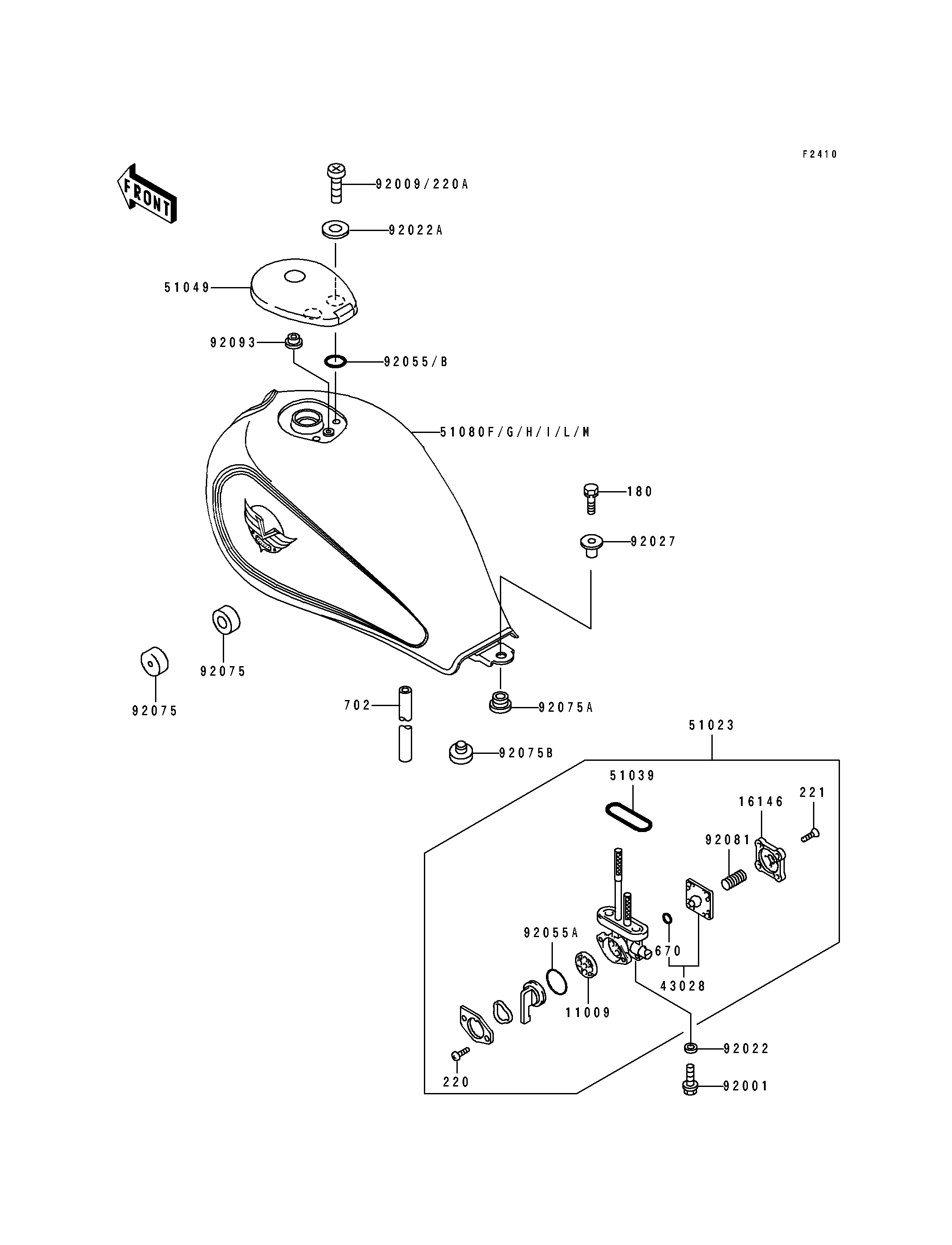

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TAP VALVE | 11009 | 11009-1188 | 1 | ||
| COVER-ASSY,TAP DIAPHRAGM | 16146 | 16146-1010 | 1 | ||
| DIAPHRAGM | 43028 | 43028-1033 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-1142 | 1 | ||
| RING,TAP FLANGED | 51039 | 51039-003 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-1088 | 1 | ||
| TANK-COMP-FUEL,EBONY/SILVER | 51080F | 51080-5128-5F | 1 | US | |
| TANK-COMP-FUEL,EBONY/SILVER | 51080G | 51080-5129-5F | 1 | CA | |
| TANK-COMP-FUEL,RED/GRAY | 51080H | 51080-5130-JG | 1 | CNUS | |
| TANK-COMP-FUEL,RED/GRAY | 51080I | 51080-5131-JG | 1 | CA | |
| BOLT,6X20 | 92001 | 92001-1091 | 2 | ||
| SCREW,5X10 | 92009 | 92009-1760 | 2 | CA | |
| WASHER,6.2X11X1.5 | 92022 | 92022-183 | 2 | ||
| WASHER,5.1X10X1.0 | 92022A | 92022-1977 | 2 | ||
| COLLAR,L=13.1 | 92027 | 92027-251 | 1 | ||
| RING-O | 92055 | 92055-1023 | 2 | CNUS | |
| RING-O,TAP LEVER | 92055A | 92055-1085 | 1 | ||
| RING-O,ID=9 | 92055B | 92055-1552 | 2 | CA | |
| DAMPER,FUEL TANK | 92075 | 92075-125 | 2 | ||
| DAMPER | 92075A | 92075-1690 | 1 | ||
| DAMPER | 92075B | 92075-281 | 1 | ||
| SPRING,TAP DIAPHRAGM | 92081 | 92081-1240 | 1 | ||
| SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA | |
| BOLT-UPSET-WS,6X25 | 180 | 180D0625 | 1 | ||
| SCREW-PAN-CROS | 220 | 220B0308 | 2 | ||
| SCREW-PAN-CROS | 220A | 220D0510 | 2 | CNUS | |
| SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 4 | ||
| O RING,4MM | 670 | 670B1504 | 1 | ||
| TUBE-RUBBER,5X8X620 | 702 | 702A05620 | 1 | CNUS |
