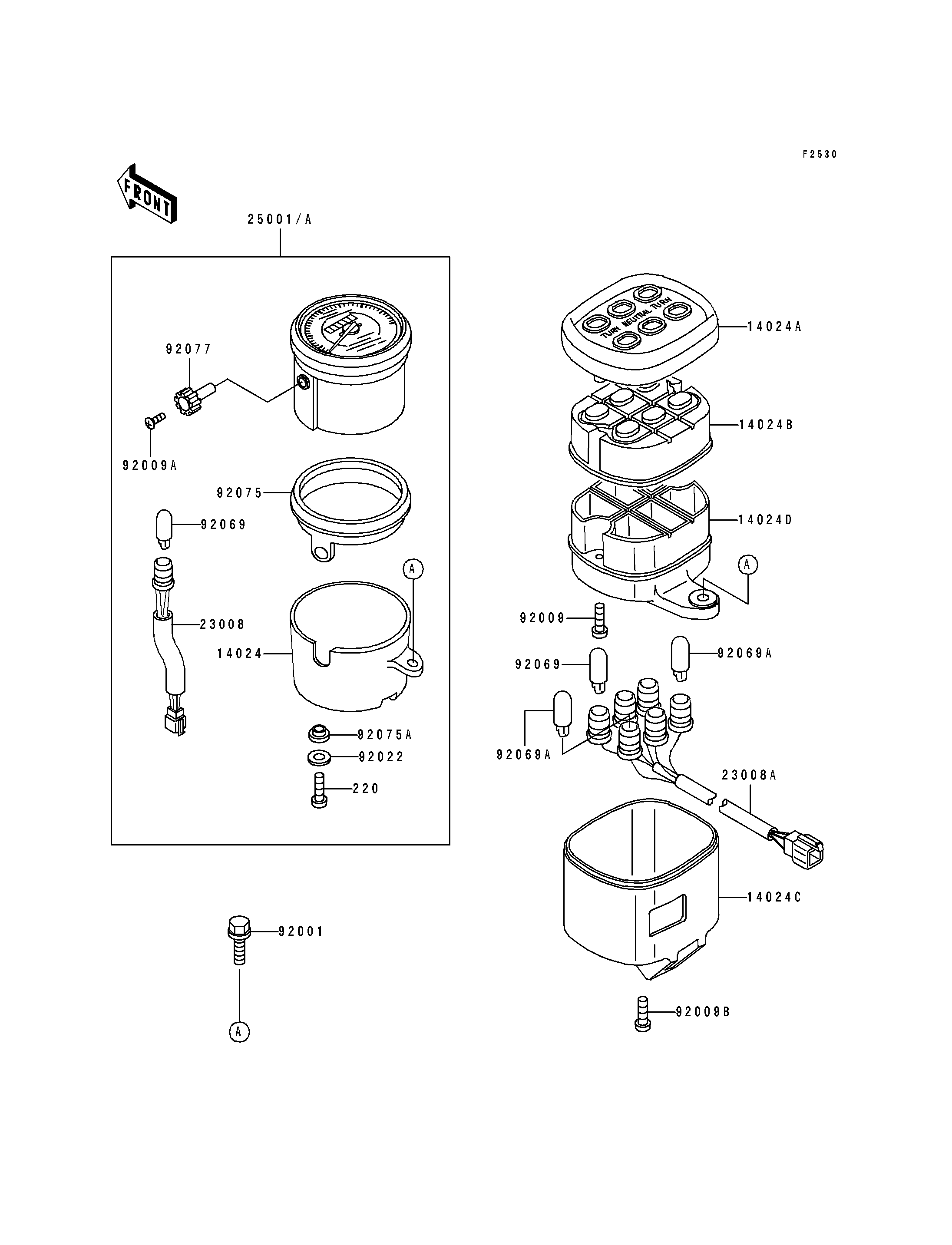

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SPEEDOMETER | 14024 | 14024-1096 | 1 | ||
| COVER,PILOT BOX,UPP | 14024A | 14024-1883 | 1 | ||
| COVER,PILOT BOX,INNER | 14024B | 14024-1884 | 1 | ||
| COVER,PILOT BOX,LWR | 14024C | 14024-1885 | 1 | ||
| COVER,PILOT BOX,INNER | 14024D | 14024-1886 | 1 | ||
| SOCKET-ASSY,SPEEDOMETER | 23008 | 23008-1356 | 1 | ||
| SOCKET-ASSY,PILOT BOX | 23008A | 23008-1418 | 1 | ||
| METER-ASSY,SPEED,MPH | 25001 | 25001-1704 | 1 | CAUS | |
| METER-ASSY,SPEED,KPH | 25001A | 25001-1731 | 1 | CN | |
| BOLT,6X20 | 92001 | 92001-1460 | 2 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-1163 | 2 | ||
| SCREW,2X6,BLACK | 92009A | 92009-1172 | 1 | ||
| SCREW,TAPPING,4X16 | 92009B | 92009-1601 | 1 | ||
| WASHER,4.5X10X0.8 | 92022 | 92022-1822 | 2 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 5 | ||
| BULB,12V 1.7W | 92069A | 92069-1059 | 2 | ||
| DAMPER,SHOCK,METER | 92075 | 92075-1751 | 1 | ||
| DAMPER,METER FITTING | 92075A | 92075-1753 | 2 | ||
| KNOB,METER | 92077 | 92077-1059 | 1 | ||
| SCREW-PAN-CROS | 220 | 220E0408 | 2 |
| COVER,SPEEDOMETER | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX,UPP | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX,INNER | |
| REF # | 14024B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX,LWR | |
| REF # | 14024C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX,INNER | |
| REF # | 14024D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,SPEEDOMETER | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,PILOT BOX | |
| REF # | 23008A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,SPEED,MPH | |
| REF # | 25001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| METER-ASSY,SPEED,KPH | |
| REF # | 25001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,2X6,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X16 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,4.5X10X0.8 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 3.4W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 1.7W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SHOCK,METER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER FITTING | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KNOB,METER | |
| REF # | 92077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
