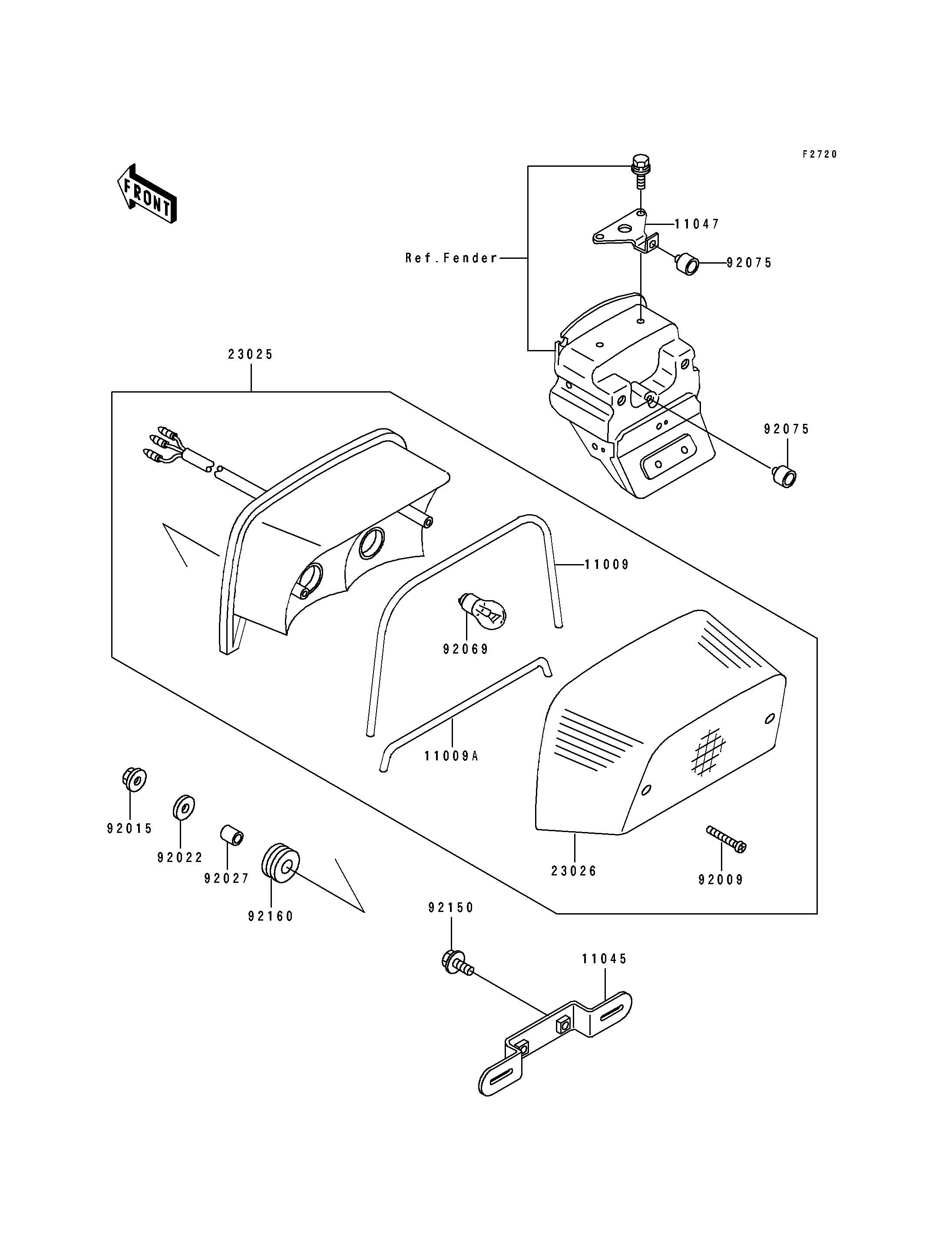

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LAMP LENS 11009 11009-1811 1
GASKET,TAIL LAMP LENS 11009A 11009-1812 1
BRACKET,LICENSE 11045 11045-1387 1
BRACKET,REAR FENDER 11047 11047-1074 1
LAMP-TAIL 23025 23025-1199 1
LENS,TAIL LAMP 23026 23026-1122 1
SCREW,TAPPING,4X30 92009 92009-1506 2
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER,6.5X20X1.6 92022 92022-1557 2
COLLAR,6.8X10X12 92027 92027-162 2
BULB,12V 27/8W 92069 92069-059 2
DAMPER 92075 92075-035 2
BOLT,6X16 92150 92150-1909 2
DAMPER 92160 92160-1162 2
