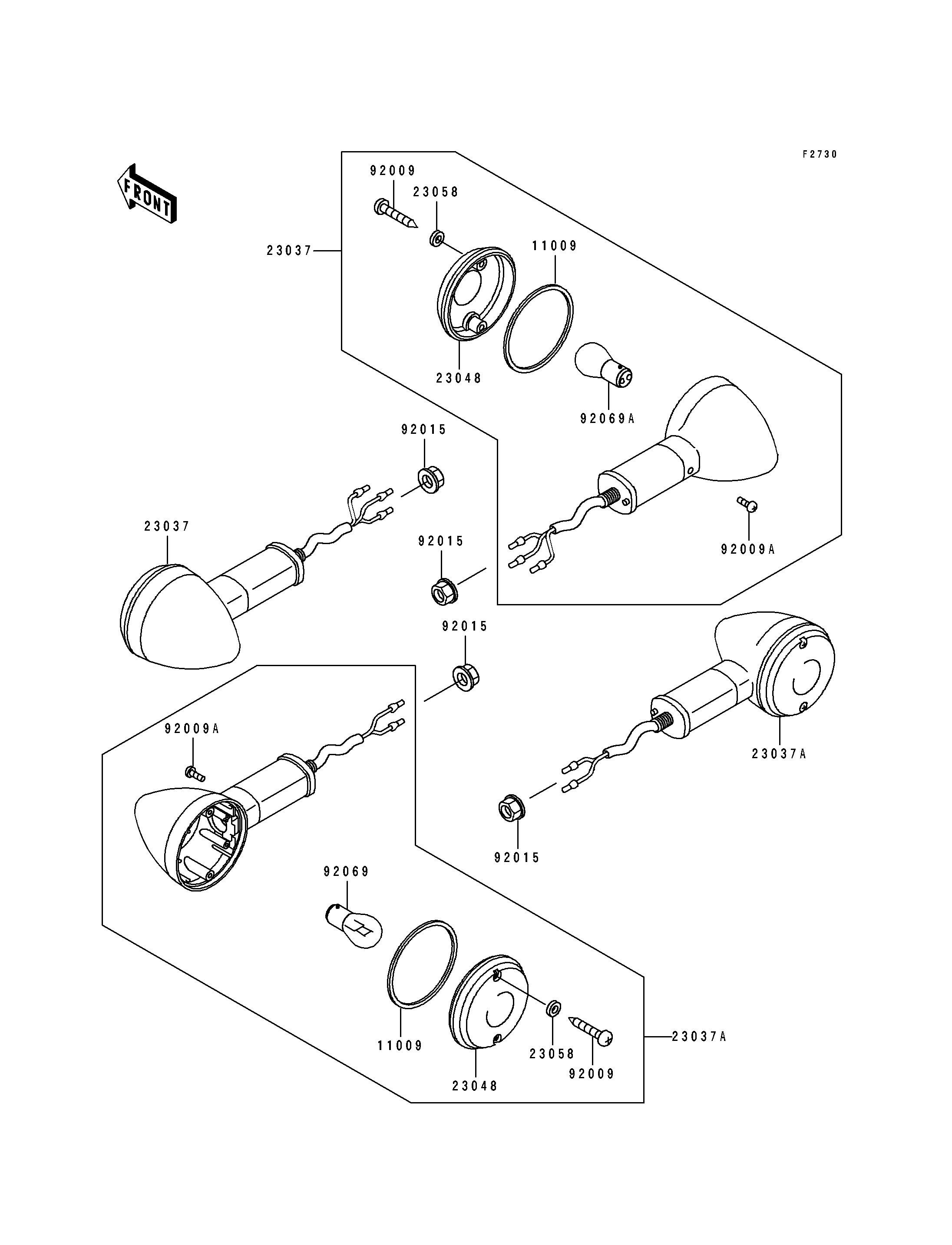

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SIGNAL LAMP LENS 11009 11009-1661 4
LAMP-ASSY-SIGNAL,FR 23037 23037-1243 2
LAMP-ASSY-SIGNAL,RR 23037A 23037-1267 2
LENS-SIGNAL LAMP 23048 23048-1078 4
WASHER,PLAIN,4MM 23058 23058-002 4
SCREW,TAPPING,4X40 92009 92009-1468 4
SCREW,6MM 92009A 92009-1469 4
NUT,FLANGED,10MM 92015 92015-1428 4
BULB,12V 32CP(23W) 92069 92069-055 2
BULB,12V 32/3CP(23/8W) 92069A 92069-060 2
