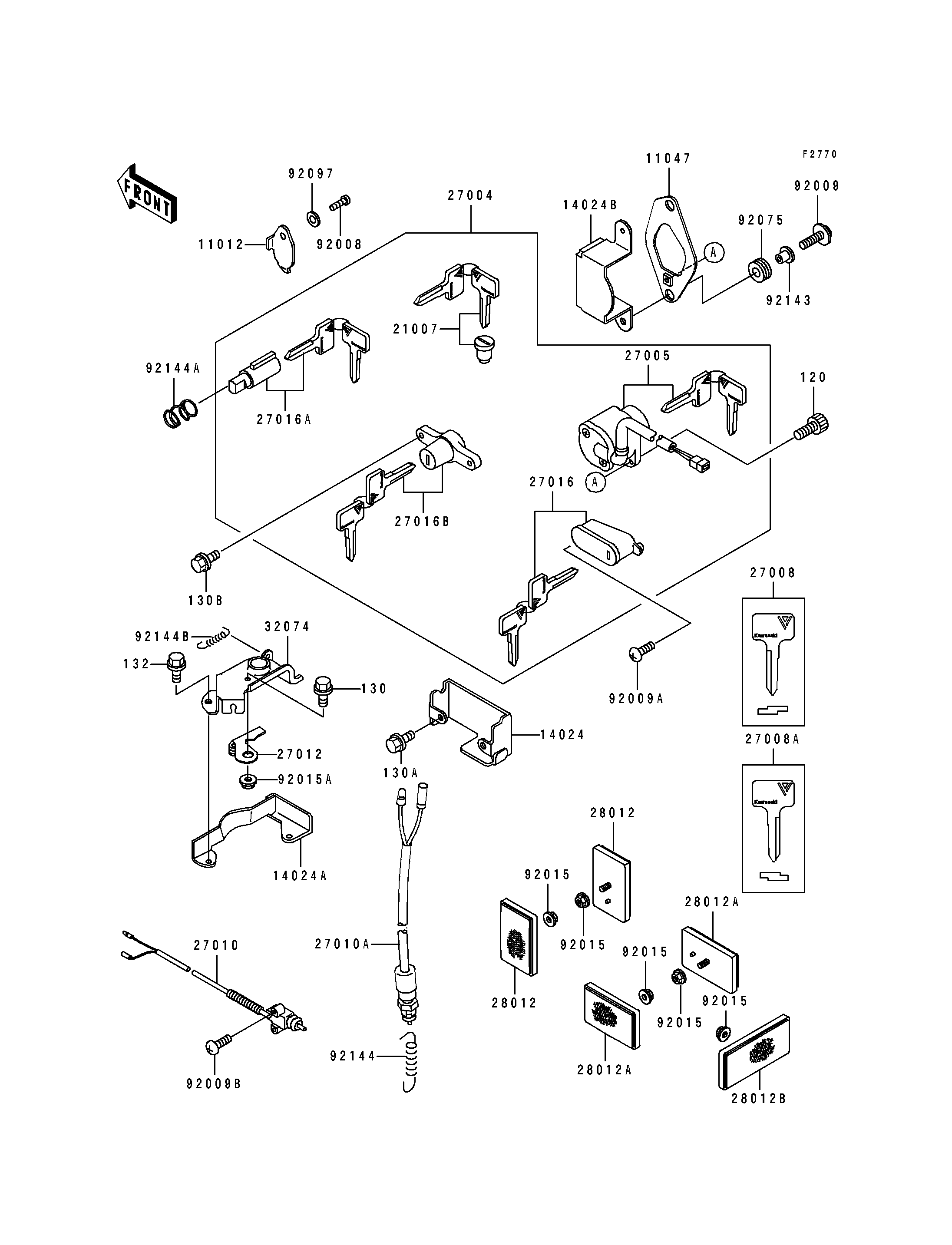

1995 Vulcan 500 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING LOCK 11012 11012-1736 1
BRACKET,IGNITION SWITCH 11047 11047-1075 1
COVER,SEAT LOCK,RR 14024 14024-1882 1
COVER,SEAT LOCK,FR 14024A 14024-1952 1
COVER,IGNITION SWITCH 14024B 14024-1957 1
ROTOR,LOCK,TANK CAP 21007 21007-5024 1
SWITCH-ASSY 27004 27004-5379 1
SWITCH-ASSY-IGNITION 27005 27005-1148 1
KEY-LOCK,BLANK,#A 27008 27008-1138 1 (OPTION)
KEY-LOCK,BLANK,#B 27008A 27008-1139 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1223 1
SWITCH,REAR BRAKE 27010A 27010-1238 1
HOOK,SEAT LOCK 27012 27012-1421 1
LOCK-ASSY,HELMET 27016 27016-5129 1
LOCK-ASSY,STEERING 27016A 27016-5131 1
LOCK-ASSY,SEAT 27016B 27016-5162 1
REFLECTOR-REFLEX,FR 28012 28012-1009 2
REFLECTOR-REFLEX,RR 28012A 28012-1051 2
REFLECTOR-REFLEX 28012B 28012-1077 1
BRACKET-LOCK,SEAT 32074 32074-1141 1
SCREW,3.51MM 92008 92008-007 1
SCREW,6X22,BLACK 92009 92009-1256 2
SCREW,5X12 92009A 92009-1296 1
SCREW,5X20 92009B 92009-1459 2
NUT,FLANGED,5MM 92015 92015-1259 5
NUT,5MM 92015A 92015-1812 1
DAMPER 92075 92075-051 2
WASHER,WAVE 92097 92097-003 1
COLLAR,L=7.4 92143 92143-1019 2
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
SPRING,STEERING LOCK 92144A 92144-1222 1
SPRING 92144B 92144-1520 1
BOLT-SOCKET 120 120P0512 1
BOLT-FLANGED 130 130B0510 1
BOLT-FLANGED 130A 130C0510 2
BOLT-FLANGED 130B 130D0608 2
BOLT-FLANGED-SMALL,6X10 132 132J0610 2
