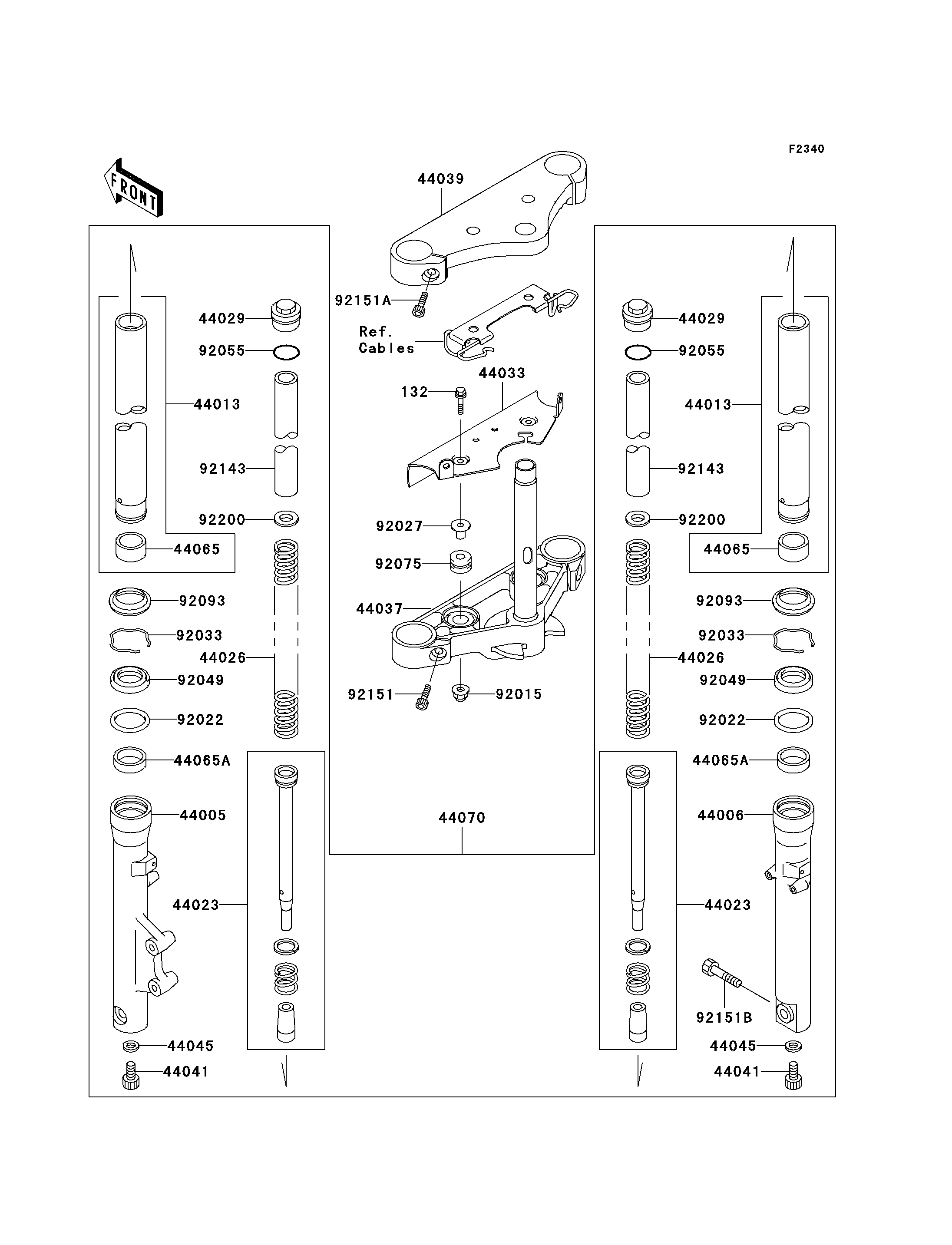

2001 Vulcan 500 LTD - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
132
44005
44006
44013
44013
44023
44023
44026
44026
44029
44029
44033
44037
44039
44041
44041
44045
44045
44065
44065
44065A
44065A
44070
92015
92022
92022
92027
92033
92033
92049
92049
92055
92055
92075
92093
92093
92143
92143
92151
92151A
92151B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0625 2
PIPE-LEFT FORK OUTER 44005 44005-1365 1
PIPE-RIGHT FORK OUTER 44006 44006-1364 1
PIPE-FORK INNER 44013 44013-1422 2
CYLINDER-COMP-FORK 44023 44023-1099 2
SPRING-FRONT FORK 44026 44026-1606 2
SEAT-FORK SPRING 44029 44029-1147 2
COVER-FORK 44033 44033-1213 1
HOLDER-FORK UNDER 44037 44037-1341 1
HOLDER-FORK UPPER 44039 44039-1265 1
BOLT,SOCKET,FORK CYLINDER 44041 44041-040 2
GASKET 44045 44045-057 2
BUSHING-FRONT FORK,INNER PIPE 44065 44065-1114 2
BUSHING-FRONT FORK,OUTER TUBE 44065A 44065-1115 2
DAMPER-ASSY,FORK 44070 44070-1482 1
NUT,CAP,6MM 92015 92015-1385 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
COLLAR,L=16.1 92027 92027-1847 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1494 2
RING-O 92055 92055-1321 2
DAMPER 92075 92075-1035 2
SEAL,FORK OUTER TUBE 92093 92093-1472 2
COLLAR,FORK,L=250 92143 92143-1861 2
BOLT,SOCKET,10X25 92151 92151-1080 2
BOLT,SOCKET,8X25 92151A 92151-1081 2
BOLT,SOCKET,10X40 92151B 92151-1082 1
WASHER 92200 92200-1302 2
