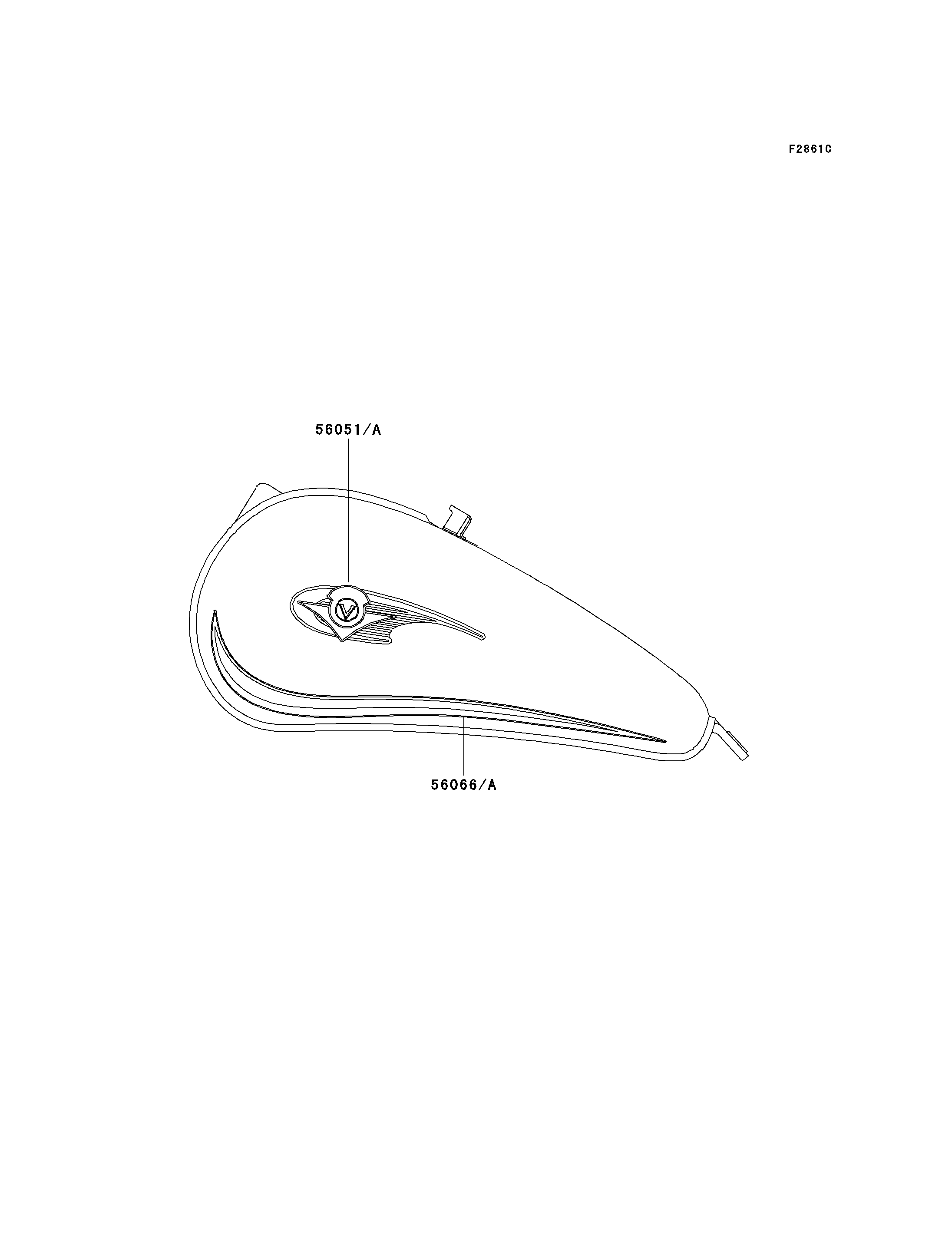

56051
56051A
56066
56066A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,LH 56051 56051-1863 1
MARK,FUEL TANK,RH 56051A 56051-1864 1
PATTERN,FUEL TANK,LH 56066 56066-1389 1
PATTERN,FUEL TANK,RH 56066A 56066-1390 1
