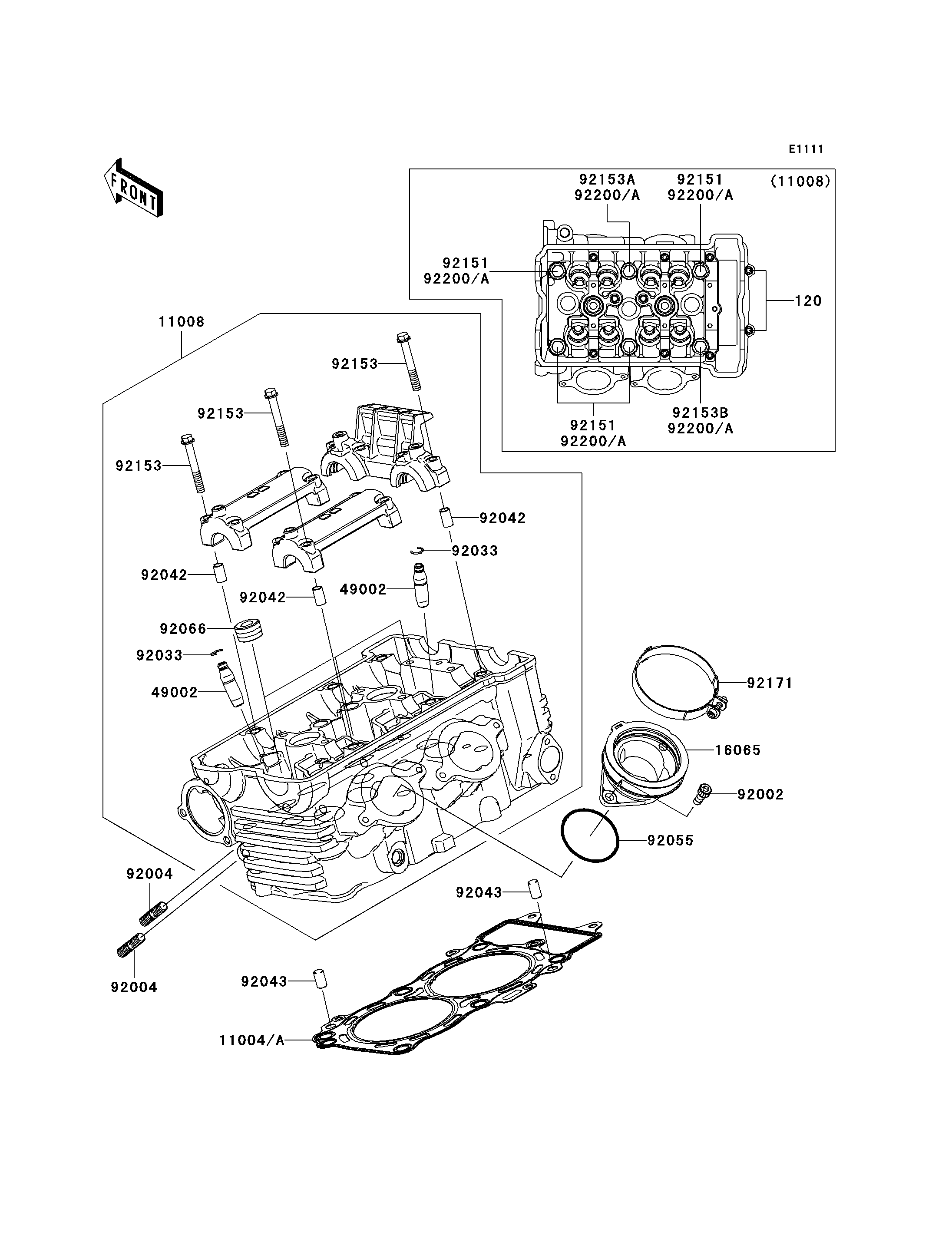

2008 ER-6n (Australian) - Cylinder Head
120
11004A
11008
16065
49002
49002
92002
92004
92004
92033
92033
92042
92042
92042
92043
92043
92055
92066
92151
92151
92151
92153
92153
92153
92153A
92153B
92171
92200A
92200A
92200A
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X30 | 120 | 120CD0630 | 2 | ||
| GASKET-HEAD | 11004A | 11004-0064 | 1 | ( ER650AE076862 - ) | |
| HEAD-COMP-CYLINDER | 11008 | 11008-0089 | 1 | ||
| HOLDER,THROTTLE BODY | 16065 | 16065-0024 | 2 | ||
| GUIDE-VALVE | 49002 | 49002-1116 | AR | ||
| BOLT,6X16 | 92002 | 92002-1143 | 4 | ||
| STUD,8X22 | 92004 | 92004-0025 | 4 | ||
| RING-SNAP | 92033 | 92033-1247 | 8 | ||
| PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 6 | ||
| PIN,8X14 | 92043 | 92043-1567 | 2 | ||
| RING-O,47X1.9 | 92055 | 92055-1600 | 2 | ||
| PLUG,PT1/2X12.5 | 92066 | 92066-0002 | 3 | ||
| BOLT,10X158 | 92151 | 92151-1152 | 4 | ||
| BOLT,6X45 | 92153 | 92153-0339 | 12 | ||
| BOLT,FLANGED-SMALL,10X176 | 92153A | 92153-0972 | 1 | ||
| BOLT,FLANGED-SMALL,10X80 | 92153B | 92153-1321 | 1 | ||
| CLAMP | 92171 | 92171-1089 | 2 | ||
| WASHER,10.5X19X2.3 | 92200A | 92200-0363 | 6 | ( ER650AE076862 - ) |
